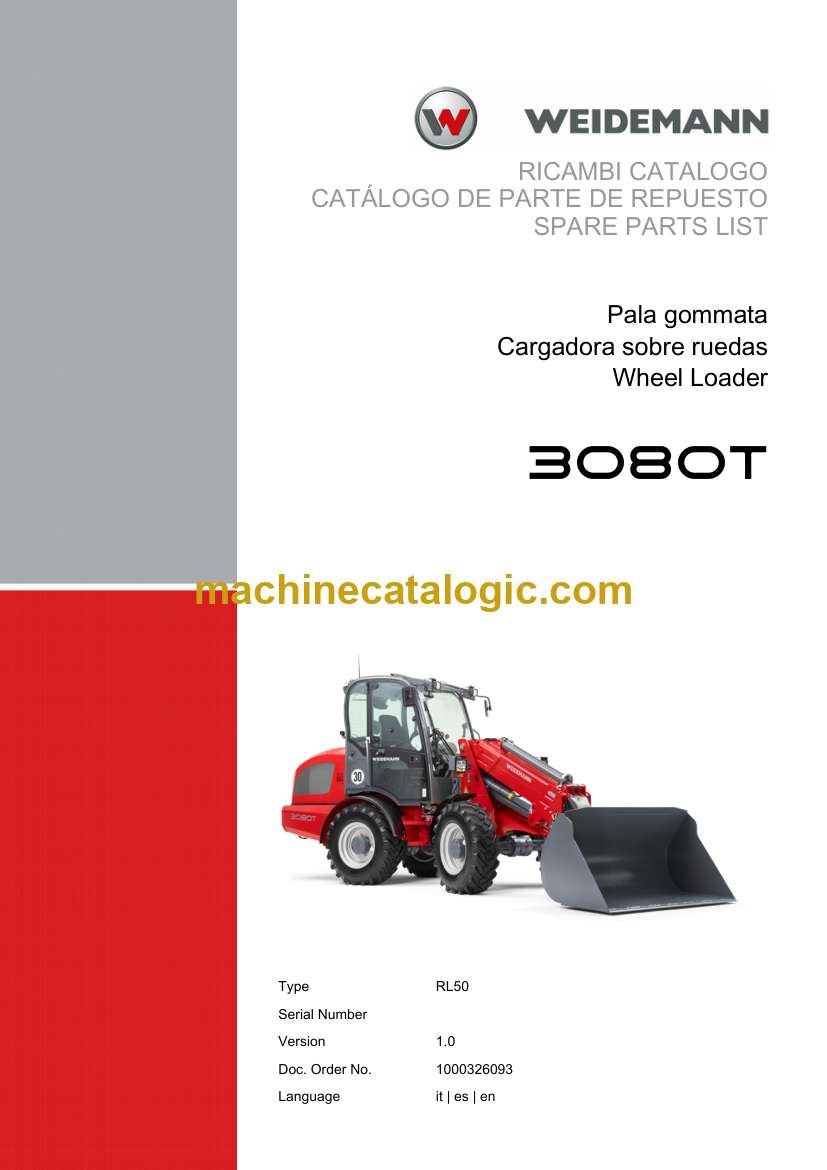

Format: PDF (Printable Document)
File Language: it, es, en
File Pages: 777
File Size: 17.77 MB (Speed Download Link)
Brand: Weidemann
Model: 3080T Wheel Loader
Book No: RL50
Type of Document: Spare Parts Catalog
$ 45
On a 3080T working in yards, feed lots, or construction sites, this parts catalog is what I grab when something’s bent, leaking, or worn and I need to see exactly how it goes together. It lets you trace each assembly—boom, steering, axles, cab fittings—down to the last seal and bushing so you order the right bits the first time. If, for example, a lift cylinder is seeping and the rod end looks different from older machines, this book helps you match the correct revision of the gland, seals, and hardware before you tear it apart.
Applications & Use Cases
FAQ
Q: Can I use this catalog on a tablet in the workshop?

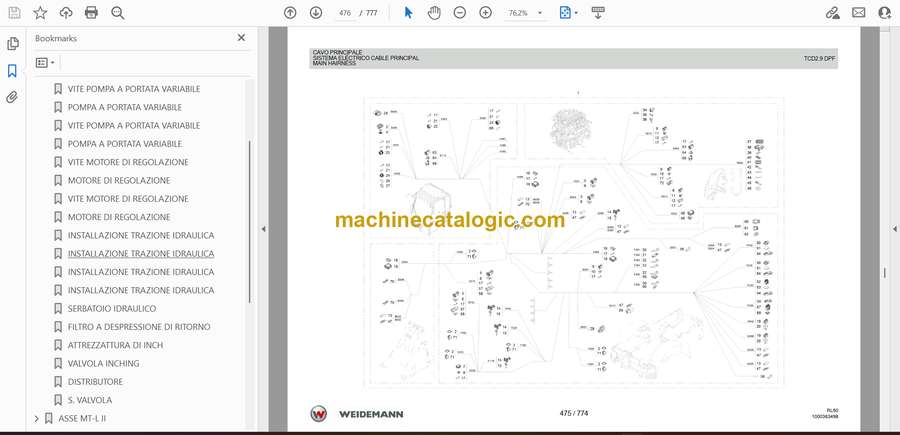

A: Yes, it’s practical to zoom into the diagrams on a tablet, which helps read part callouts and compare them directly to the machine.
Q: Is it worth printing sections of this catalog?
A: Many techs print only the assemblies they’re working on, then mark them with notes and part quantities for easier ordering and reassembly.
Safety Note
Always isolate the machine, relieve stored pressure, and follow lockout procedures before inspecting or replacing any parts referenced in this catalog.
