Weidemann 3110 D/D Radlader Parts Catalog

Weidemann 3110 D-D Radlader Parts Catalog (5056311006)

On a Weidemann 3110 D/D wheel loader that spends its life in barns, yards, or on construction sites, this parts catalog is what I’d keep open whenever I’m stripping down an assembly. It helps you match what’s on the machine to the correct exploded view so you can identify every bolt, seal, and bushing before you start ordering. If, for example, you’re chasing a hydraulic leak at a lift cylinder or in the loader linkage, this book lets you trace the components, confirm the right seal kit version, and avoid guessing at small hardware that’s easy to overlook.

Applications & Use Cases

Identify exact part variations when there were mid‑series changes, so you don’t end up with the wrong style bracket or hose.
Use exploded views to see how components stack together before disassembly, helping you avoid damaged seals or misaligned spacers.
Verify all small parts—O‑rings, shims, bushings—during a rebuild so nothing is missed on the parts order.
Cross-check filter sets and related hardware when doing scheduled services or setting up a maintenance kit.
Confirm routing and orientation of lines and linkages during reassembly after major repairs.

FAQ

Q: Can I use this catalog on a tablet in the workshop?

A: Yes, it works well digitally; you can zoom in on the diagrams to see small parts more clearly while you’re at the machine.

Q: Is it worth printing sections of this catalog?

A: Many techs print the relevant assemblies before a job, mark up the pages with notes, and keep them with the work order for easy reference.

Safety Note

Always verify parts against the machine’s identification plate and follow the official safety procedures before any disassembly.

📘 Show Index

Weidemann 3110 D-D Radlader Index:

9-10 WICHTIGE HINWEISE IMPORTANT NOTICES NOTICES IMPORTANTES OBSERVACIONES IMPORTANTES
12-13 FILTERSATZ FILTER SET JEU DE FILTRES JUEGO DE FILTROS
1 14-21 VORDER- UND HINTERWAGEN FRONT AND REAR CARRIAGE PARTIE AVANT ET ARRIERE PARTE DELANTERA Y TRASERA
2 22-25 MITTELGELENK CENTRAL JOINT PIVOT CENTRALE RÓTULA CENTRAL
3 26-31 KABINE UNTERTEIL CABIN LOWER PART CABINE PARTIE INFERIEUR CABINA PARTE INFERIOR
3 32-39 KABINE OBERTEIL CABIN UPPER PART CABINA PARTIE SUPERIOR CABINA PARTE SUPERIOR
3 40-43 FAHRERSCHUTZDACH DRIVER’S CAP CADRE DE SECURITE CUADRO DE SEGURIDAD
44-45 HEIZUNG HEATING CHAUFFAGE CALEFACCIÓN
4 46-47 MOTORHAUBE ENGINE BONNET CAPOT CAPÓ
48-53 DÄMMATTEN INSULATING MATERIAL MATERIEL ISOLANT MATERIAL DE INSONORIZACION
5 54-57 SCHWINGE 914 LOADING ARM 914 BRAS CHARGEUR 914 BRAZO DE CARGA 914
58-61 SCHWINGE 913 LOADING ARM 913 BRAS CHARGEUR 913 BRAZO DE CARGA 913
6 62-69 MOTOR UND ANBAUTEILE ENGINE AND PARTS MOTEUR ET PIECES MOTOR Y PIEZAS
70-73 AUSPUFF UND LUFTFILTER EXHAUST AND AIR FILTER ECHAPPEMENT ET FILTRE D’AIR ESCAPE Y FILTRO DE AIRE
74-75 GASBETÄTIGUNG ACCELERATOR ACCELÉRATEUR ACELERADOR

76-79 INCHBETÄTIGUNG INCH CONTROL COMMANDE ACTIVIDAD
7 80-83 DIESELTANK FUEL TANK RESERVOIR COMBUSTIBLE DEPOSITO DE CARBURANTE
8 84-89 ELEKTRISCHE ANLAGE I ELECTRIC SYSTEM DIAGRAMME I SYSTEME ELECTRIQUE I SISTEMA ELÉCTRICO I
90-97 ELEKTRISCHE ANLAGE II ELECTRIC SYSTEM DIAGRAMME II SYSTEME ELECTRIQUE II SISTEMA ELÉCTRICO II
9 98-101 ARMATURENLENKSÄULE I DASHBOARD I TABLEAU DE BORD I TABLERO DE MANDO I
102-105 ARMATURENLENKSÄULE II DASHBOARD II TABLEAU DE BORD II TABLERO DE MANDO II
106-107 STROMLAUFPLAN ELECTRICAL WIRING SCHEME DE COUPLAGE DIAGRAMA DE CIRCUITO
108 HYDRAULIKLAUFPLAN HYDRAULIC WIRING DIAGRAMME SCHEME DE COUPLAGE HYDR. DIAGRAME DE CIRCUITO HIDRÁULICO
10 110-113 VERSTELLPUMPE VARIABLE DISPLACEMENT PUMP POMPE À DÉBIT VARIABLE BOMBA DE CAUDAL VARIABLE
114-125 FAHRHYDRAULIK DRIVING HYDRAULIC TRANSMISSION HYDRAUL. TRANSMISSION HIDRÁULICA
11 126-135 LENKANLAGE STEERING SYSTEM SYSTÈME DE DIRECTION SISTEMA DE CONDUCCIÓN
12 136-143 HYDRAULIKANLAGE STANDARD
HUBHÖHE
HYDRAULIC SYSTEM STAND.
HIGHT
SYSTEME HYDR. STAND. LEVÉE
HAUTEUR
SISTEMA HIDR. STAND. CARRERA
1 DREIWEGEHAHN 1 THREE-WAY TAP VANNE A 3 VOIES GRIFO DE 3 VIAS
144-151 HYDRAULIKANLAGE HOHE
HUBHÖHE
HYDRAULIC SYSTEM HIGH HIGHT SYSTEME HYDR. HAUT LEVEE
HAUTEUR
SISTEMA HIDR. ALTO CARRERA
1 DREIWEGEHAHN 1 THREE-WAY TAP VANNE A 3 VOIES GRIFO DE 3 VIAS

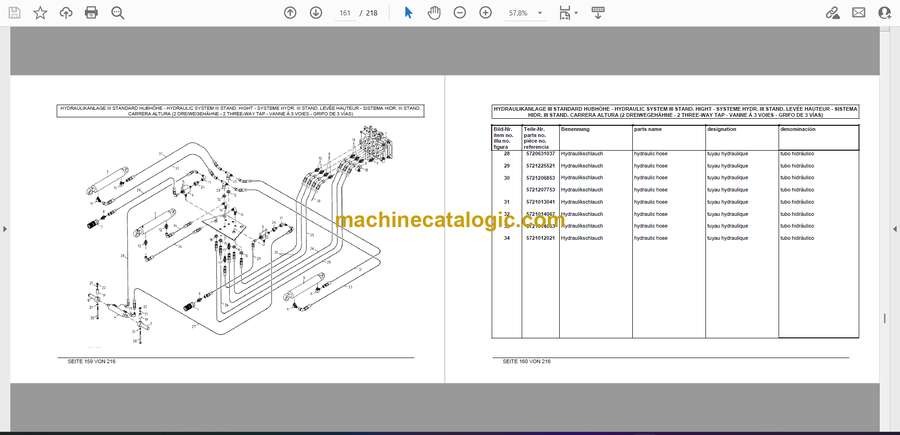

152-159 HYDRAULIKANLAGE STANDARD
HUBHÖHE
HYDRAULIC SYSTEM STAND.
HIGHT
SYSTEME HYDR. STAND. LEVÉE
HAUTEUR
SISTEMA HIDR. STAND. CARRERA
2 DREIWEGEHÄHNE 2 THREE-WAY TAP VANNE A 3 VOIES GRIFO DE 3 VIAS

160-167 HYDRAULIKANLAGE HOHE
HUBHÖHE
HYDRAULIC SYSTEM HIGH HIGHT SYSTEME HYDR. HAUT LEVEE
HAUTEUR
SISTEMA HIDR. ALTO CARRERA
2 DREIWEGEHÄHNE 2 THREE-WAY TAP VANNE A 3 VOIES GRIFO DE 3 VIAS
168-173 KREUZSTEUERVENTIL CROSS STEERING VALVE DISTRIBUTEUR HYDRAUL. VALVULA DE MANDO EN CRUZ
13-14 174-181 BREMSANLAGE BRAKE SYSTEM SYSTÈME DES FREINS SISTEMA DE FRENOS
13 182-191 PLANETENACHSE VORN PLANET-AXLE FRONT ESSIEU DE PLANETA AVANT EJE DE PLANETA DELANTERA
14 192-199 PLANETENACHSE HINTEN PLANET-AXLE REAR ESSIEU DE PLANETA ARRIERE EJE DE PLANETA TRASERA
200-203 ACHSROHR MIT
PLANETENTRÄGER
AXLE TUBE WITH PLANETARY
SUPPORT
ESSIEU DE ROUE AVEC SUPPORT
PLANETAIRE
TUBO DE EJE CON SOPORTE
PLANETARIO
204-205 ACHSROHR MIT
DIFFERENTIALSPERRE
AXLE TUBE WITH DIFFERENTIAL
LOCK
ESSIEU DE ROUE AVEC ROUE
BLOQUAGE DU DIFFERENTIEL
TUBO DE EJE CON BLOQUE DEL
DIFERENCIAL
15 206-207 ERDSCHAUFEL MIT
REISSZÄHNEN
EARTH BUCKET GODET CUCHARA DE TIERRA
15 208-213 UNI-SCHAUFEL BUCKET GODET CUCHARA
15 214-215 PALETTENGABEL PALLET FORKS PALETTISEUR HORQUILLAS DE PALET
