Format: PDF (Printable Document)
File Language: it, es, en
File Pages: 437
File Size: 7.09 MB (Speed Download Link)

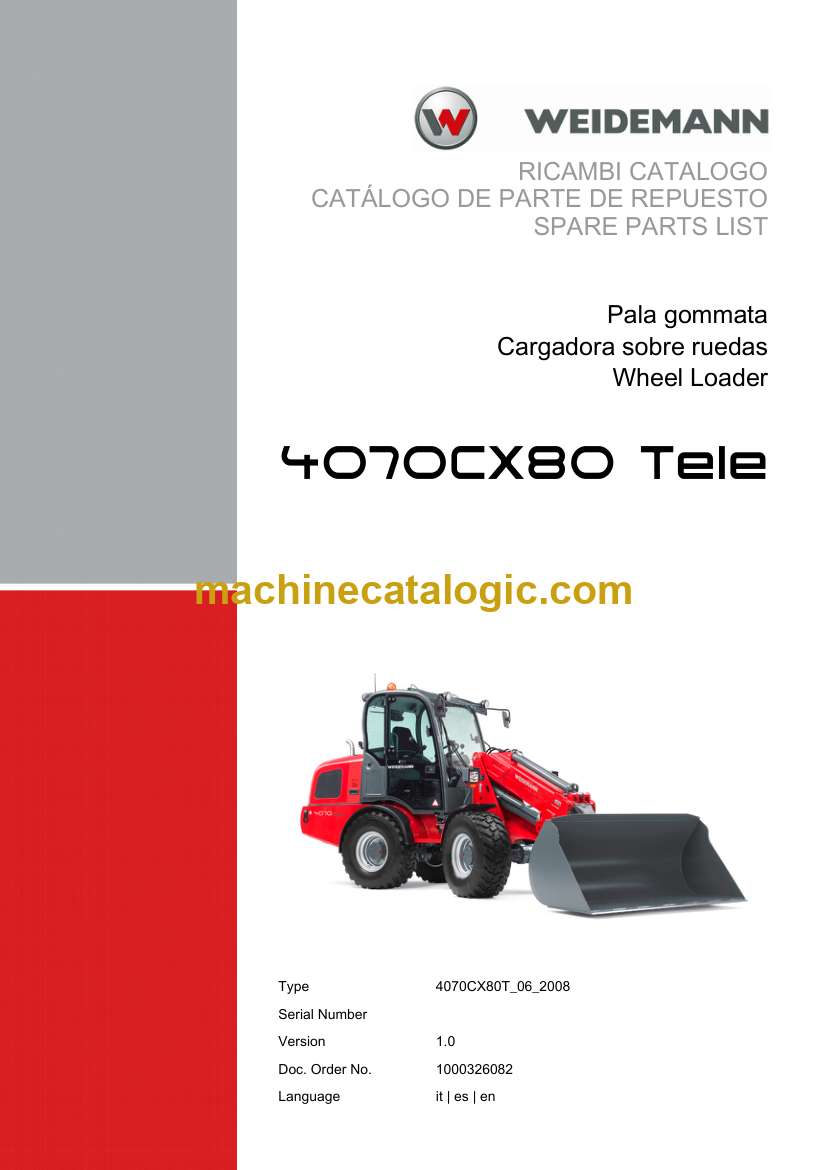

Brand: Weidemann
Model: 4070CX80 Tele Wheel Loader
Book No: 4070CX80T_06_2008
Type of Document: Spare Parts Catalog
$ 45
On a 4070CX80 tele wheel loader that’s stacking pallets in a warehouse yard one day and loading bulk material on a muddy site the next, this catalog is what I’d keep open when the machine’s down and I need the right part fast. It helps you identify every component on the loader from the boom to the axles, so you can match what’s on the machine to the correct replacement. For example, if a boom extension cylinder starts leaking, I’d use this book to trace the exact cylinder version and pick the right seal kit and hardware, instead of guessing.
Applications & Use Cases
FAQ
Q: Can I use this catalog on a tablet in the workshop?

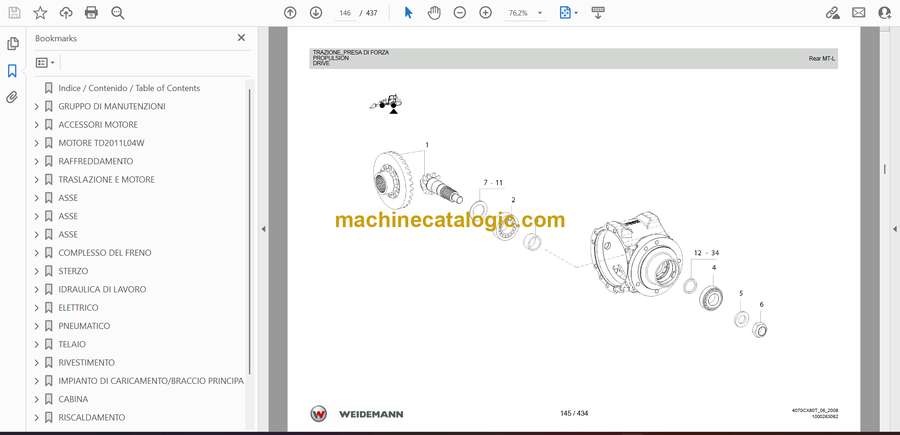

A: Yes, it works well digitally; you can zoom in on the exploded views to see small parts more clearly.
Q: Is it worth printing sections of this catalog?
A: Printing the pages for the area you’re working on is handy; you can mark them with notes and keep them next to the machine without worrying about greasy hands on your device.
Safety Note
Always lock out, support, and depressurize the loader properly before inspecting or replacing any parts referenced in this catalog.
