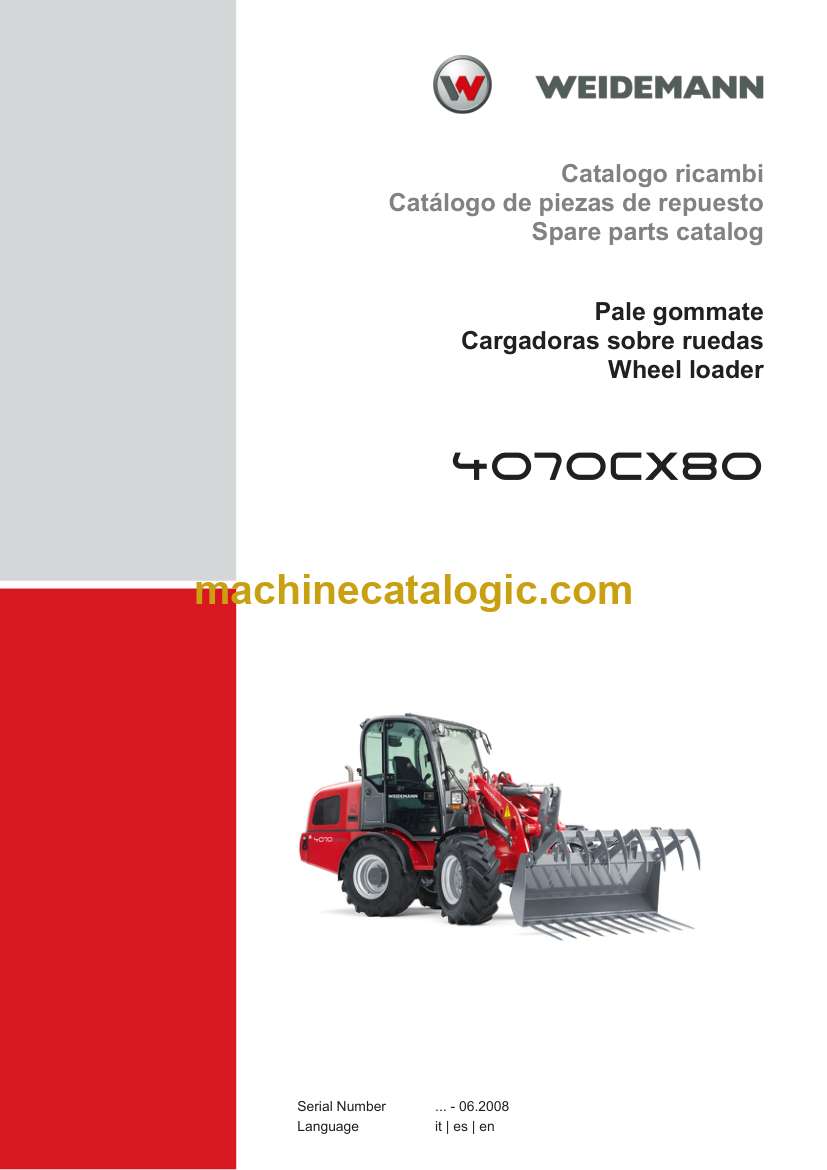

Weidemann 4070CX80 Wheel Loader Spare Parts Catalog (… – 06.2008) (it, es, en)
The Weidemann 4070CX80 is a yard and construction-site loader that spends its life in mud, gravel, and tight barns, so parts wear and get bent. This spare parts catalog is what I’d open when I need to see exactly how an assembly is built and which parts belong together. If a loader arm pin is sloppy or a steering cylinder starts leaking, this book lets me trace every pin, shim, seal and bushing so I can order the right pieces the first time.
Applications & Use Cases
- Verify the correct revision of pins, bushings, and cylinders when the machine has mid‑series updates.
- Use the exploded views to trace hydraulic line routing and identify every fitting and clamp after a hose failure.
- Confirm all seals, O-rings, and wear pads during a teardown so nothing gets missed in the parts order.
- Cross-check axle and hub components before rebuilding, avoiding mix-ups between similar variants.
- Print specific diagrams to keep at the machine while you reassemble and align linkages or attachments.
FAQ
Q: Can I use this catalog on a tablet in the workshop?
A: Yes, it’s practical to zoom in on diagrams, search part descriptions, and keep your hands free at the machine.
Q: Is it still worth printing pages?
A: Many techs print the relevant views so they can mark notes, circle parts, and tape them right to the loader.
Safety Note
Always isolate the machine, release stored pressure, and follow lockout procedures before inspecting or replacing parts.
📘 Show Index
Weidemann 4070CX80 Wheel Loader Index:
- INDICE DEI CONTENUTI ÍNDICE CONTENTS
- 1 SERVICE KIT KIT DE SERVICIO SERVICE KIT
- 1.1 GRUPPO DI MANUTENZIONI JUEGO MANTENIMIENTO MAINTENANCE KIT
- 1.2 USURA PORZIONE LA PIEZA EL DESGASTE WEAR PARTS
- 2 ACCESSORI MOTORE ACCESORIOS MOTRIZ ENGINE ATTACHMENTS PARTS
- 2.1 MOTORE MOTOR ENGINE
- 2.2 BRACKET SOPORTE BRACKET
- 2.3 IMPIANTO DI ALIMENTAZIONE DEL COMBUSTIBI SISTEMA DE ALIMENTACIÓN FUEL SYSTEM
- 2.4 IMPIANTO DI SCARICO DEI GAS (<09.2007) SISTEMA DE GAS DE ESCAPE (<09.2007) EXHAUST COMPONENTS (<09.2007)
- 2.5 IMPIANTO DI SCARICO DEI GAS (>10.2007) SISTEMA DE GAS DE ESCAPE (>10.2007) EXHAUST COMPONENTS (>10.2007)
- 2.6 COMANDO A GAS ACCIONAMIENTO DE ACELERADOR SPEED ACTUATING
- 3 TRASLAZIONE E MOTORE PROPULSIÓN DE MARCHA DRIVE UNIT
- 3.1 TRASLAZIONE E MOTORE PROPULSIÓN DE MARCHA DRIVE UNIT
- 3.2 POMPA A PORTATA VARIABILE BOMBA GRADUABLE DISPLACEMENT PUMP
- 3.3 MOTORE DI REGOLAZIONE MOTOR REGULABLE DISPLACEMENT MOTOR
- 4 ASSE AP-R EJE AP-R AXLES AP-R
- 4.1 ASSE (Front & Rear) EJE (Front & Rear) AXLES (Front & Rear)
- 4.2 SCATOLA PLANETARIA (Front) CAJA PLANETERIA (Front) PLANETARY HOUSING (Front)
- 4.3 TRAZIONE, PRESA DI FORZA PROPULSIÓN DRIVE
- 4.4 TUBO ASSIALE TUBO DE EJE AXLE PIPE
- 4.5 TUBO ASSIALE TUBO DE EJE AXLE PIPE
- 4.6 DIFFERENZIALE DIFERENCIAL DIFFERENTIAL
- 4.7 FRENO FRENO BRAKE
- 4.8 SCATOLA PLANETARIA (Rear) CAJA PLANETERIA (Rear) PLANETARY HOUSING (Rear)
- 4.9 TRAZIONE, PRESA DI FORZA PROPULSIÓN DRIVE
- 4.10 TUBO ASSIALE TUBO DE EJE AXLE PIPE
- 4.11 TUBO ASSIALE TUBO DE EJE AXLE PIPE
- 4.12 DIFFERENZIALE DIFERENCIAL DIFFERENTIAL
- 4.13 SCATOLA DEL CAMBIO CAJA DE ENGRANAJES GEAR BOX HOUSING
- 4.14 RIPARTITORE DI COPPIA TRANSMISIÓN DE TOMA DE FUERZA DISTRIBUTOR GEAR-BOX
- 5 COMPLESSO DEL FRENO MONTAJE DE FRENO BRAKE ASSEMBLY
- 6 STERZO DIRECCIÓN STEERING UNIT
- 6.1 STERZO DIRECCIÓN STEERING UNIT
- 7 IDRAULICA DI LAVORO HIDRÁULICA DEL TRABAJO WORKING HYDRAULIC
- 7.1 IDRAULICA DI LAVORO HIDRÁULICA DEL TRABAJO WORKING HYDRAULIC
- 7.2 COMANDO UNIDAD DE CONTROL CONTROL
- 7.3 VALVOLA DI COMANDO VÁLVULA PILOTO CONTROL VALVE
- 7.4 VALVOLA DI COMANDO (exploded view) VÁLVULA PILOTO (exploded view) CONTROL VALVE (exploded view)
- 8 ELETTRICO SISTEMA ELÉCTRICO ELECTRIC
- 8.1 CABINA SISTEMA ELÉCTRICO CABINA CABIN ELECTRIC
- 8.2 CHASSIS SISTEMA ELÉCTRICO CHASIS HARNESS WIRING CHASSIS
- 8.3 PIANTONE DEL VOLANTE COLUMNA DE DIRECCIÓN STEERING COLUMN
- 8.4 PIANTONE DEL VOLANTE COLUMNA DE DIRECCIÓN STEERING COLUMN
- 9 PNEUMATICO NEUMÁTICO TYRE
- 9.1 PNEUMATICO NEUMÁTICO TYRE
- 10 TELAIO BASTIDOR FRAME
- 10.1 TELAIO BASTIDOR FRAME
- 10.2 SNODO DI PIEGATURA ARTICULACIÓN DE PANDEO PIVOT BLOCK
- 11 RIVESTIMENTO REVESTIMIENTO TRIM
- 11.1 COFANO MOTORE CUBIERTA DE MOTOR ENGINE HOOD
- 11.2 COFANO MOTORE CUBIERTA DE MOTOR ENGINE HOOD
- 11.3 S. I. COFANO MOTORE ESTERA ABSORBENTE CUBIERTA DE MOTOR BONNET INSULATING MAT
- 12 IMPIANTO DI CARICAMENTO/BRACCIO PRINCIPA SISTEMA DE CARGA/BRAZO DE ELEVACIO+BALAC LOADING SYSTEM/ARMSYSTEM
- 12.1 IMPIANTO DI CARICAMENTO/BRACCIO PRINCIPA SISTEMA DE CARGA/BRAZO DE ELEVACIO+BALAC LOADING SYSTEM/ARMSYSTEM
- 13 CABINA CABINA DEL CONDUCTOR CABIN
- 13.1 CABINA (cabin LK116 complete) CABINA DEL CONDUCTOR (cabin LK116 complete) CABIN (cabin LK116 complete)
- 13.2 PEDALE (frame I) PEDAL (frame I) PEDAL (frame I)
- 13.3 RIVESTIMENTO (frame II) REVESTIMIENTO (frame II) TRIM (frame II)
- 13.4 RIVESTIMENTO (frame III) REVESTIMIENTO (frame III) TRIM (frame III)
- 13.5 RIVESTIMENTO REVESTIMIENTO TRIM
- 13.6 TRAVERSA TRANSVERSAL TRAVERSE
- 13.7 PORTIERA DELLA CABINA PUERTA DE CABINA CAB DOOR
- 13.8 PARABREZZA CRISTAL DELANTERA FRONT WINDOW
- 13.9 LUNOTTO POSTERIORE CRISTAL TRASERO REAR WINDOW
- 13.10 EQUIPAGGIAMENTO SPECIALE MODELO ESPECIAL SPECIAL DESIGN
- 13.11 SEDILE MSG 85/S722 (MSG 85/722) ASIENTO MSG 85/S722 (MSG 85/722) SEAT MSG 85/S722 (MSG 85/722)
- 13.12 FODERA FUNDA SLIP-COVER
- 13.13 CABINA INCLINARE IDRAULICA CABINA BASCULANTE HIDRÁULICA HYDRAULICS TILTING CABIN
- 14 RISCALDAMENTO CALEFACCIÓN HEATING
- 14.1 RISCALDAMENTO CALEFACCIÓN HEATING
- 15 OPZIONE OPCIÓN OPTION
- 15.1 KIT RICOSTRUCZIONE KIT EQUIPAMIENTO RETROFIT KIT
- 15.2 COATING RECUBRIMIENTO COATING
- 15.3 CLIMATIZZATORE SISTEMA DE ACONDICIONAMIENTO DE AIRE AIR CONDITION SYSTEM
- 15.4 S. TARGA SOPORTE PLACA DE MATRÍCULA BRACKET IMMATRICULATION PLATE
- 15.5 ATTREZZATTURA DI INCH DISPOSITIVO INCH INCHING DEVICE
- 15.6 UNITÀ DI AZIONAMENTO PARALLELA UNIDAD QUE CONDUCE PARALELA PARALLEL DRIVING UNIT
- 15.7 IDRAULICA HIDRÁULICA HYDRAULICS
- 15.8 IMPIANTO DI LUBRIFICAZIONE CENTRALIZZATO (Spare parts – lubrication line) SISTEMA CENTRALIZADO DE LUBRICACIÓN (Spare parts – lubrication line) CENTRAL GREASING DIVICE (Spare parts – lubrication line)
- 15.9 POMPA DEL LUBRIFICANTE ((Electric) Central lubrication system) BOMBA DE ENGRASE ((Electric) Central lubrication system) LUBRICATION PUMP ((Electric) Central lubrication system)
- 16 ACCESSORI ACCESORIO ACCESSORIES
- 16.1 EARTH SHOVEL PALA DE TRACTOR EARTH SHOVEL
- 16.2 CROCODILE TEETH PINZAS DE COCODRILO CROCODILE TEETH
- 16.3 FORCA PER PALLET HORQUILLA DE PALETAS PALLET FORKS
