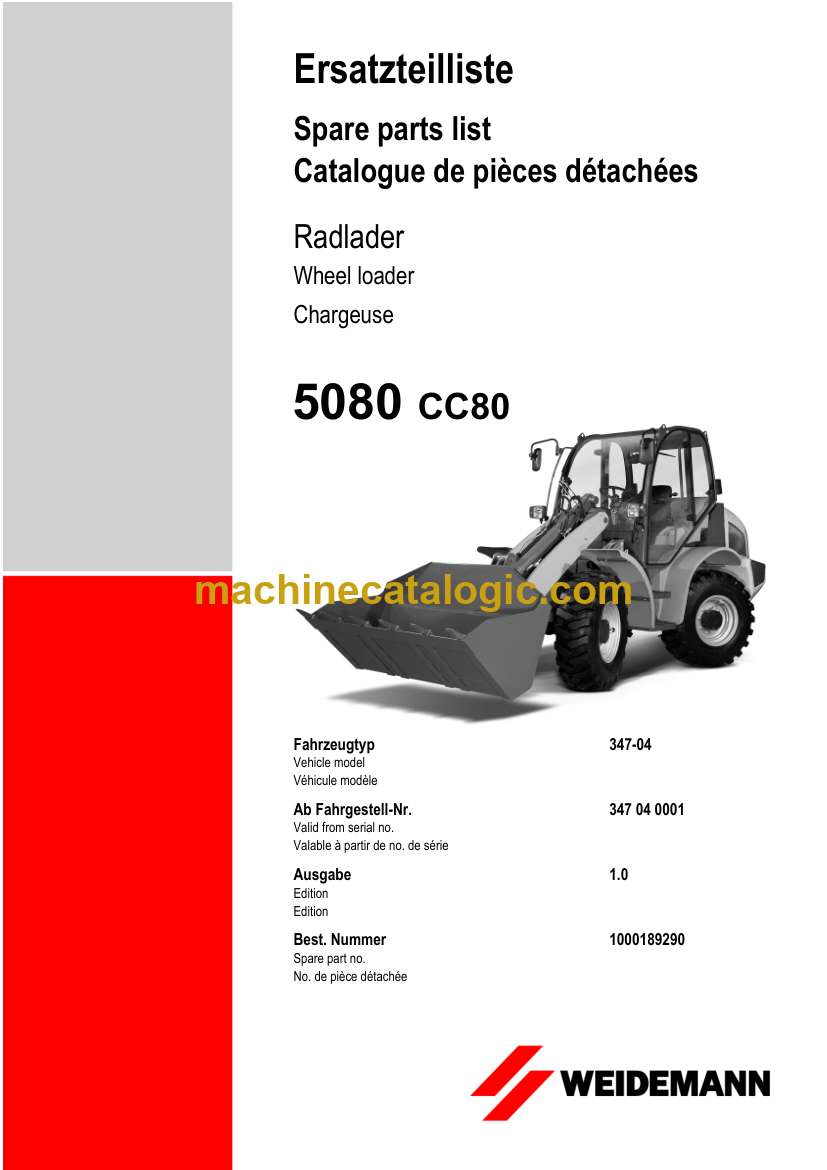

Weidemann 5080 CC80 Radlader Parts Catalog

A 5080 CC80 wheel loader usually lives in yards, farms, and construction sites, shuttling bulk material all day. This parts catalog is what I keep open when I’m rebuilding an axle, chasing a hydraulic leak, or matching up worn pins and bushings. When, for example, a loader arm pin is sloppy and the old part number is unreadable, this book lets me trace the correct pin, bushings, shims, and retaining hardware so I don’t have to guess at what to order.

Applications & Use Cases

Identify exact part variants when there were running changes to the 5080 CC80, so you don’t end up with the wrong style cylinder or bracket.

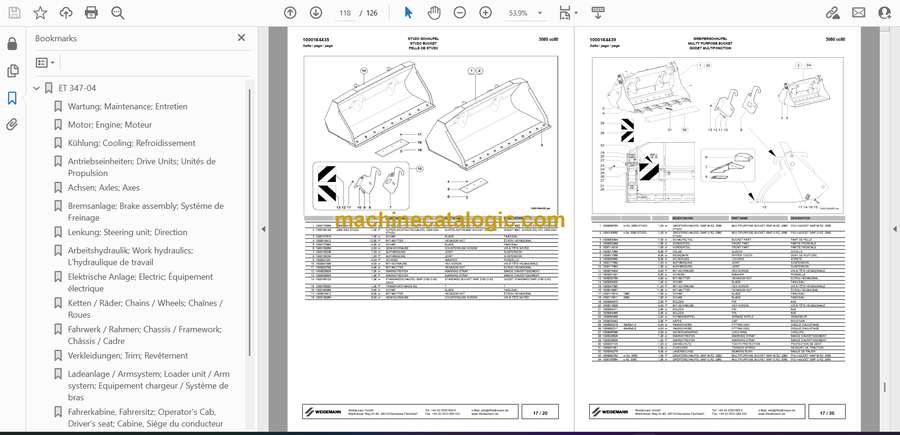

Use exploded views to see how components stack together, helping you align seals, spacers, and snap rings during reassembly.
Verify hidden items like O-rings, grease fittings, and small washers that are easy to miss when ordering from memory.
Plan a repair by listing all related parts around a failed component, reducing downtime from second and third orders.
Cross-check old or superseded numbers against current catalog entries before you talk to the dealer.

FAQ

Q: Can I zoom in on the diagrams to read small callouts on a tablet or laptop?

A: Yes, the catalog is well-suited to zooming so you can clearly see part balloons and notes at the machine.

Q: Is this worth printing, or should I keep it digital?

A: Most techs keep it digital for search and zoom, then print only the few assemblies they’re working on to take into the shop.

Safety Note

Always verify parts and orientation here before assembly, and follow the official service procedures and lockout rules when working on the loader.

Weidemann 5080 CC80 Radlader Index:

ET 347-04
- Wartung; Maintenance; Entretien
- Motor; Engine; Moteur
- Kühlung; Cooling; Refroidissement
- Antriebseinheiten; Drive Units; Unités de Propulsion
- Achsen; Axles; Axes
- Bremsanlage; Brake assembly; Systéme de Freinage
- Lenkung; Steering unit; Direction
- Arbeitshydraulik; Work hydraulics; L’hydraulique de travail
- Elektrische Anlage; Electric; Équipement électrique
- Ketten / Räder; Chains / Wheels; Chaînes / Roues
- Fahrwerk / Rahmen; Chassis / Framework; Châssis / Cadre
- Verkleidungen; Trim; Revêtement
- Ladeanlage / Armsystem; Loader unit / Arm system; Equipement chargeur / Système de bras
- Fahrerkabine, Fahrersitz; Operator’s Cab, Driver’s seat; Cabine, Siège du conducteur
- Heizung, Klimaanlage; Heating, Air conditioning system; Chauffage, Climatiseur
- Aufkleber, Werkzeug; Label and tools; Labels et outils
- Anbaugeräte; Implements to attach; Appareils portés
