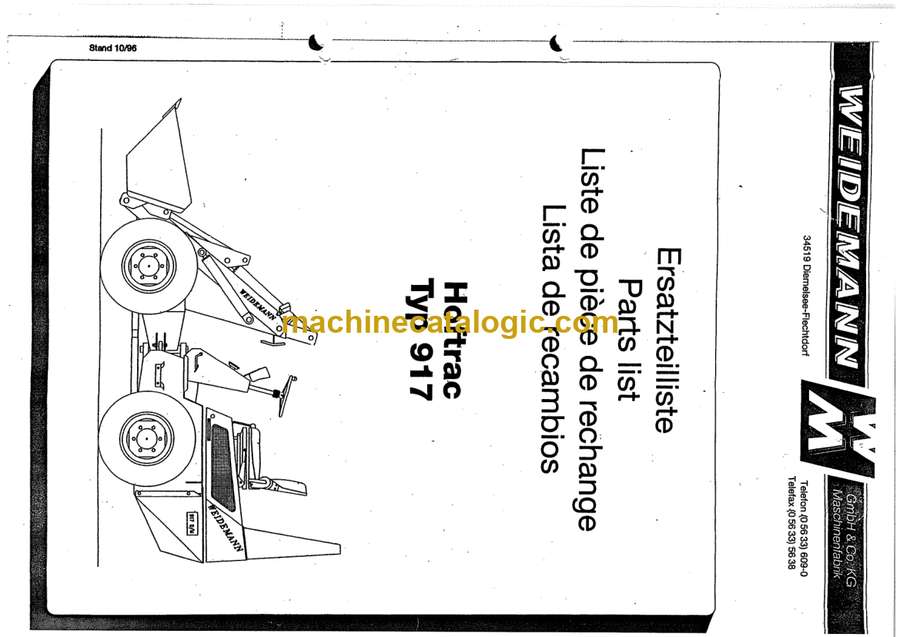

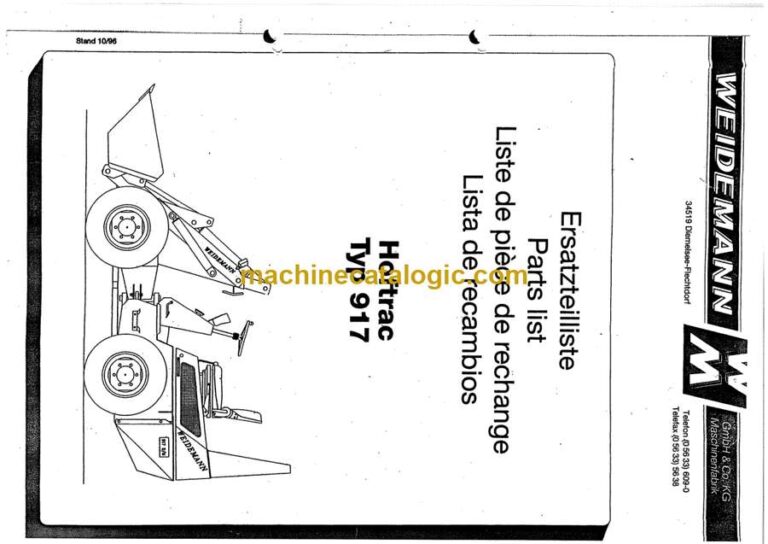

Weidemann 917 Hoftrac Parts Catalog

The Weidemann 917 Hoftrac usually lives in tight yards, barns, and feed alleys, doing loader work where space is cramped and downtime hurts. This parts catalog is what I’d keep open when I’m rebuilding the central joint, chasing a hydraulic leak on the loading arm, or putting the bonnet and steps back together after other repairs. It lets you match the exact style of pins, bushings, seals, and brackets fitted to your machine so you don’t guess at parts, especially when there have been revisions over the years.

Applications & Use Cases

• Trace assemblies from the chassis to the loading arm to confirm every washer, spacer, and bushing before placing a parts order.
• Isolate small variations in joints, linkages, and cylinders so you don’t mix early and late-style components.
• Verify hardware and fasteners during reassembly after welding, crack repairs, or pin replacement.
• Identify electrical and instrument box items when you’re sorting out damaged looms or broken switches.
• Plan a full front-end overhaul by checking which wear parts are involved around the central joint and steering area.

FAQ

Q: Can I use this on a tablet in the workshop?

A: Yes, it’s practical to keep it open on a tablet so you can zoom in on exploded views right next to the machine.

Q: Is it worth printing sections of this catalog?

A: Many techs print the relevant assemblies before a job so they can mark off parts as they’re removed and replaced.

Safety Note

Always verify parts visually on the machine and follow the official service procedures before disassembly or testing.
