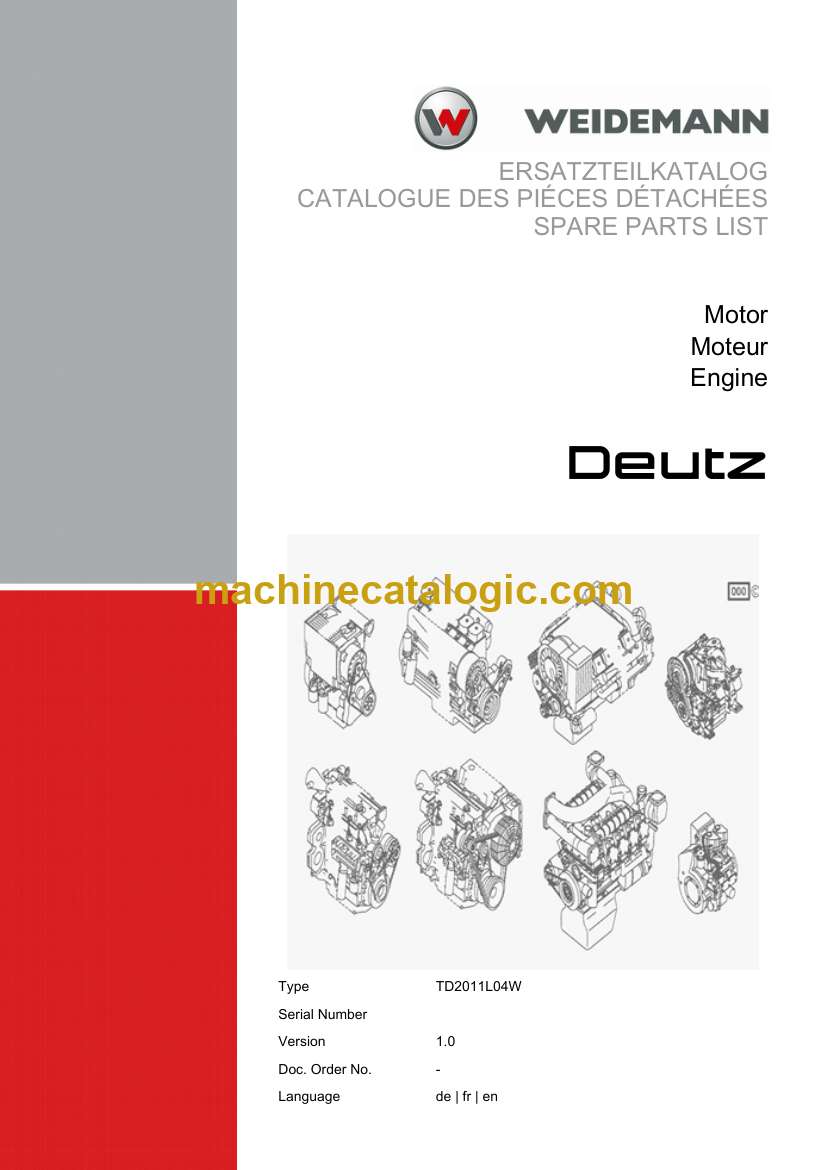

Weidemann Deutz TD2011L04W Engine Spare Parts Catalog (de, fr, en)

On a Weidemann with the Deutz TD2011L04W, this engine is working hard in tight farmyards, feed alleys, and construction sites, usually in dust and vibration all day. This parts catalog is what I keep open when the engine’s apart on the bench and I need to match every gasket, seal, and bolt to the correct version. If, for example, you’re chasing an oil leak around the cylinder head or replacing a damaged injection component, this book lets you trace the exact setup your engine left the factory with so you don’t order the wrong parts and lose time.

Applications & Use Cases

• Verify the correct block, head, and timing cover variants before ordering replacements.
• Trace all seals, O-rings, and bushings during teardown so nothing gets missed on reassembly.
• Compare different revision levels of the TD2011L04W to avoid mixing incompatible parts.
• Identify the right fasteners and brackets when hardware is missing or badly corroded.
• Cross-check injection and ancillary components after a failure to replace everything affected.

FAQ

Q: Can I use this catalog on a tablet at the machine?

A: Yes, it’s practical to zoom into the exploded views on a tablet, which helps confirm small parts right at the jobsite.

Q: Is it worth printing sections of this manual?

A: Many techs print the relevant pages and keep them next to the engine so they can mark, circle, and tape them to parts trays.

Safety Note

Always lock out the machine, let the engine cool, and follow proper lifting and support procedures before working on any engine components.

Weidemann Deutz TD2011L04W Engine Index:

• Inhaltsverzeichnis / Table des matières / Table of Contents
• DEUTZ TD2011L04W
  • MOTORBLOCK
  • ZYLINDERKOPF
  • EINSPRITZANLAGE
  • LEITUNG

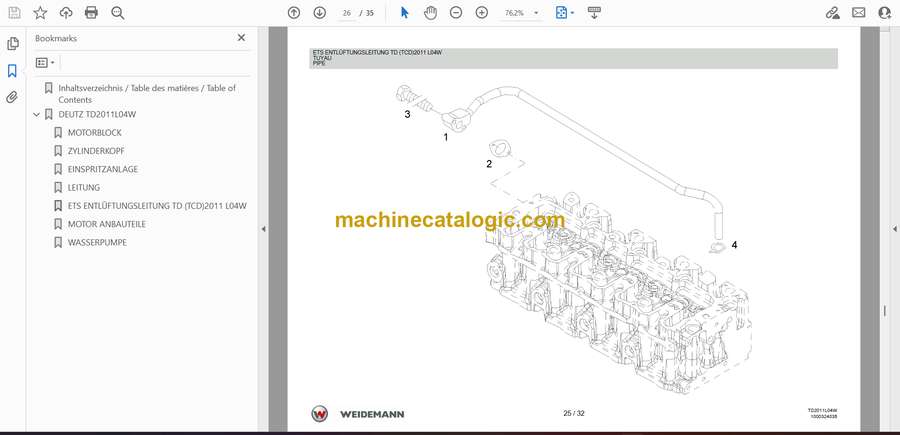

  • ETS ENTLÜFTUNGSLEITUNG TD (TCD)2011 L04W
  • MOTOR ANBAUTEILE
  • WASSERPUMPE
