Weidemann Perkins 403C-15 Engine Spare Parts Catalog (de, fr, en)

These Weidemann machines usually live in tight yards, barns, and construction sites, loading, stacking, and shuttling material all day. This Perkins 403C-15 engine parts catalog helps you identify the exact components inside that engine, so you don’t guess at gaskets or order the wrong injector style. If you’re chasing a hard-start issue and find a damaged fuel line or a cracked intake piece, this is what you use at the bench to match the right revision, seals, and small hardware before you place a parts order.

Applications & Use Cases

• Trace the full engine assembly breakdown so you can see how brackets, pumps, and covers stack together.
• Verify gasket sets, O-rings, and seals that are easy to overlook when rebuilding the top or bottom end.
• Compare different part revisions so you don’t mix early and late-style components on the same engine.
• Confirm small items like bushings, dowels, washers, and plugs that don’t show clearly on the machine itself.

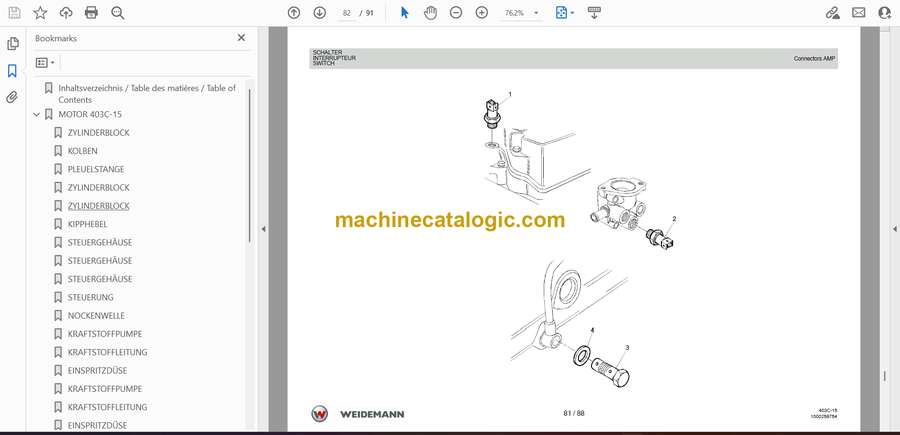

• Print specific exploded views to keep at the workbench while you strip and reassemble the engine.

FAQ

Q: Can I use this on a tablet in the workshop?

A: Yes, it’s practical on a tablet or laptop; you can zoom into the exploded views to read part callouts clearly.

Q: Is it still worth printing pages if I have the file?

A: Many techs print just the relevant diagrams for a job, mark them with notes, and tape them near the engine during teardown.

Safety Note

Always isolate the machine, follow lockout procedures, and let the engine cool fully before removing or installing any parts.
