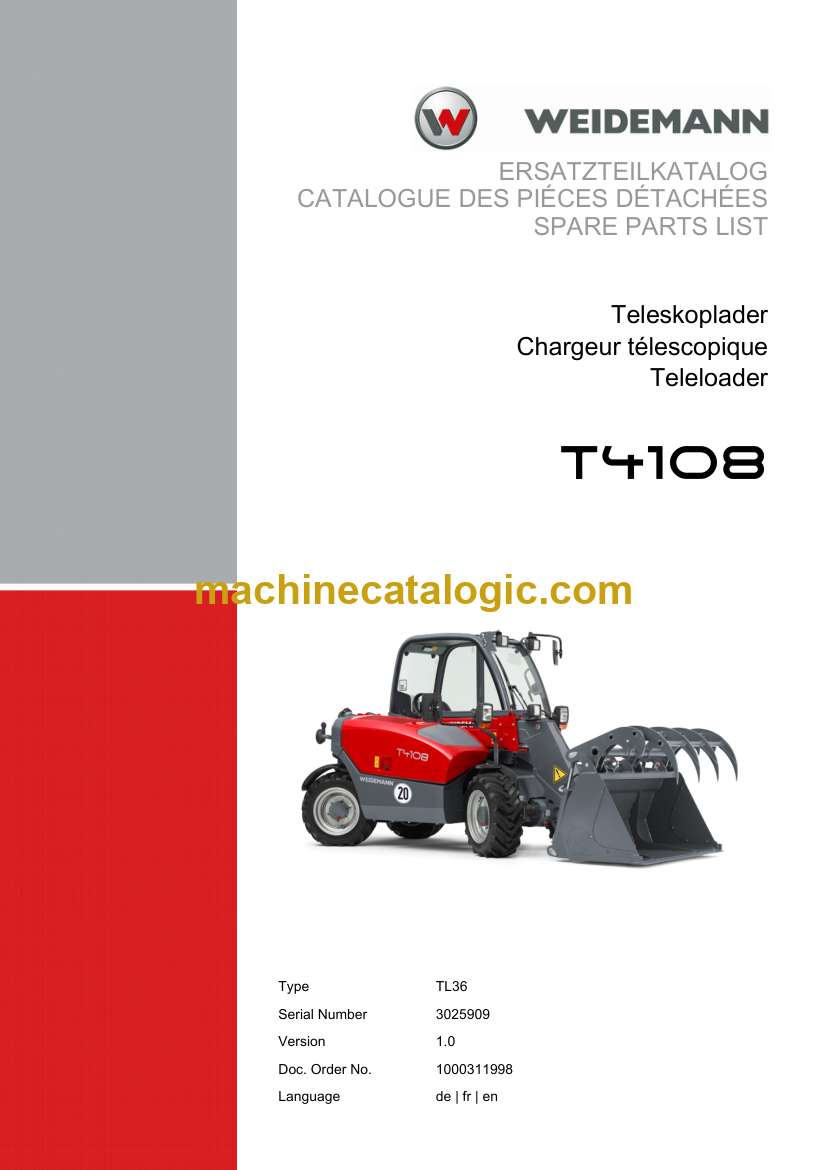

Format: PDF (Printable Document)
File Language: de, fr, en
File Pages: 389
File Size: 9.96 MB (Speed Download Link)
Brand: Weidemann
Model: Teleloader Telehandler
Book No: TL36
Serial No: 3025909
Type of Document: Spare Parts Catalog
$ 45

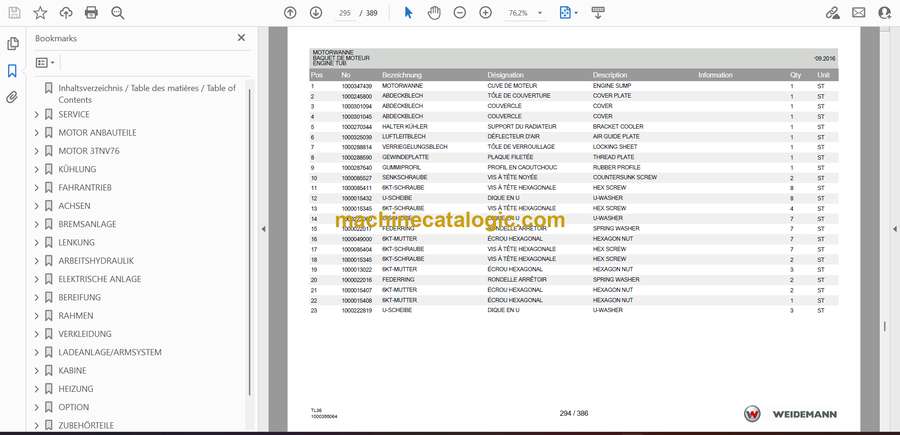

The T4108 is a compact telehandler that spends its life in tight barns, feed alleys and yard work, shifting pallets, bales and bulk material. This spare parts catalog is what I keep open when I’m rebuilding an attachment carriage, chasing a leaking boom section, or sorting out damage after a fork hit a wall. It lets you trace every assembly as an exploded view, so you can identify the exact pins, shims, seals and brackets you need and avoid guessing at parts over the counter.
Applications & Use Cases
FAQ
Q: Can I use this catalog on a tablet in the workshop?
A: Yes, it’s practical to zoom into the exploded views on a tablet, then mark down the part numbers you need.
Q: Is it still worth printing pages from this catalog?
A: Many techs print just the relevant assemblies to lay beside the machine and make notes or highlight replaced items.
Safety Note
Always lock out, support and depressurize the telehandler before removing any components you’ve identified from this catalog.
