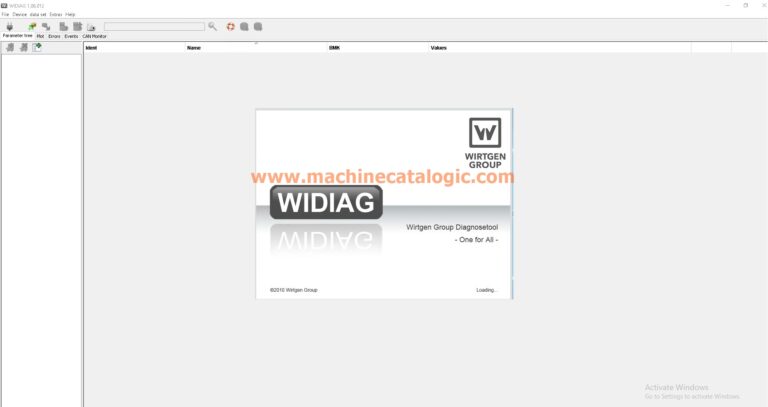

Wirtgen Group Diagnose Tool Widiag (One for All) 1.06.012

WIDIAG is a program of the Wirtgen Group that was developed for use in service organizations and production facilities. The areas of application and target groups range from simple users who only view data, through users who can also change individual data, to developers who can completely configure the machine with it. Basically, it can be said that it is used for software installation, machine parameterization and machine diagnostics in Wirtgen Group machines.

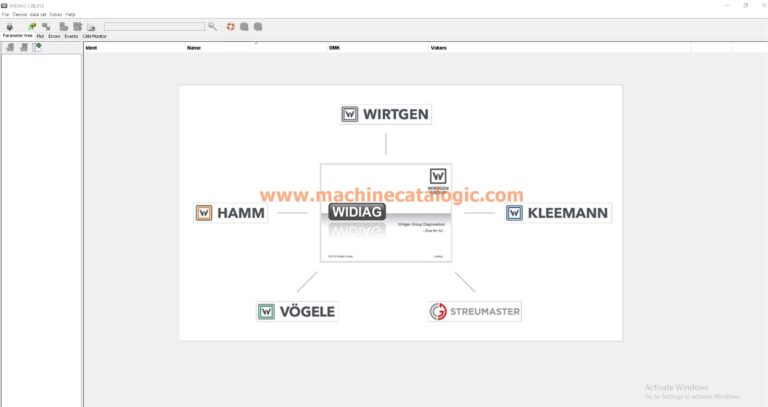

WIDIAG is currently only used for the brands Wirtgen GmbH, Hamm AG, Kleemann GmbH and Vögele AG. In addition, the WIDIAG program is also used by Streumaster GmbH.

One of WIDIAG’s functions is the installation of machine software in the various control units of Wirtgen Group machines. This installation is done via various interfaces (RS232, CAN, ETHERNET), all of which WIDIAG can handle.

Another function is machine parameterisation, where a connection is established via CAN bus or Ethernet and the machine data can then be checked and set.

As with machine parameterisation, a connection is established via CAN bus or Ethernet for machine diagnostics. As soon as the machine data has been read out, it can be analysed online in various ways. It is possible to view the values via the function groups or the user can create his or her own watch list for machine diagnostics. With the help of a watch list, it is also possible to record measured values over a certain period of time in order to analyse this recording later. In this way, sporadically occurring errors can be better recognised.

As a fourth functionality, WIDIAG can be used to generate an IPR release code. With this IPR release code, the display on a Wirtgen Group machine1 can be temporarily enabled for certain parameterisations. In this way, current values (min. and max. currents of the hydraulic components) can be changed and options can be enabled.
