Description

Atlas Copco 4B But Boom Kit Parts Manual (8994025800)

Atlas Copco 4B But Boom Kit Index:

COMPONENT SET / KOMPONENTSATS
LIST OF CONTENTS
Part no
Detaljnr
Description Benämning See page
Se sida
Remarks
Anmärkning
– COMPONENT SET KOMPONENTSATS 9
3128 3117 15 – BASIC BOOM – GRUNDBOM 11
– – – BOOM PART – – BOMDEL 13
– – – – BOOM SUPPORT – – – BOMFÄSTE 15
3128 3080 04 – – – EXPANDING SHAFT – – – EXP.AXEL 17 COMPLETE
3128 3081 50 – – – LINK – – – LÄNK 19
3125 1982 80 – – – EXPANDING SHAFT – – – EXP.AXEL 21
3128 3081 52 – – – BOOM LINK – – – BOMLÄNK 23
3128 3079 38 – – – BOOM – – – BOM 25
9121 7018 00 – – – HYDR. CYLINDER – – – HYDRAULCYLINDER 27
9120 0994 01 – – – – SEALING SET – – – – TÄTNINGSSATS 29
8231 1202 86 – – – – CHECK VALVE – – – – BACKVENTIL 31
8231 1203 06 – – – – OVERCENT.VALVE – – – – LASTHÅLL.VENTIL 33
9123 6507 11 – – – – COVER COMPL. – – – – LOCK KOMPL. 35
3125 4937 80 – – – EXPANDING SHAFT – – – EXP.AXEL 37
3128 2807 71 – – – TELESCOPE SET – – – TELESKOPSATS 39

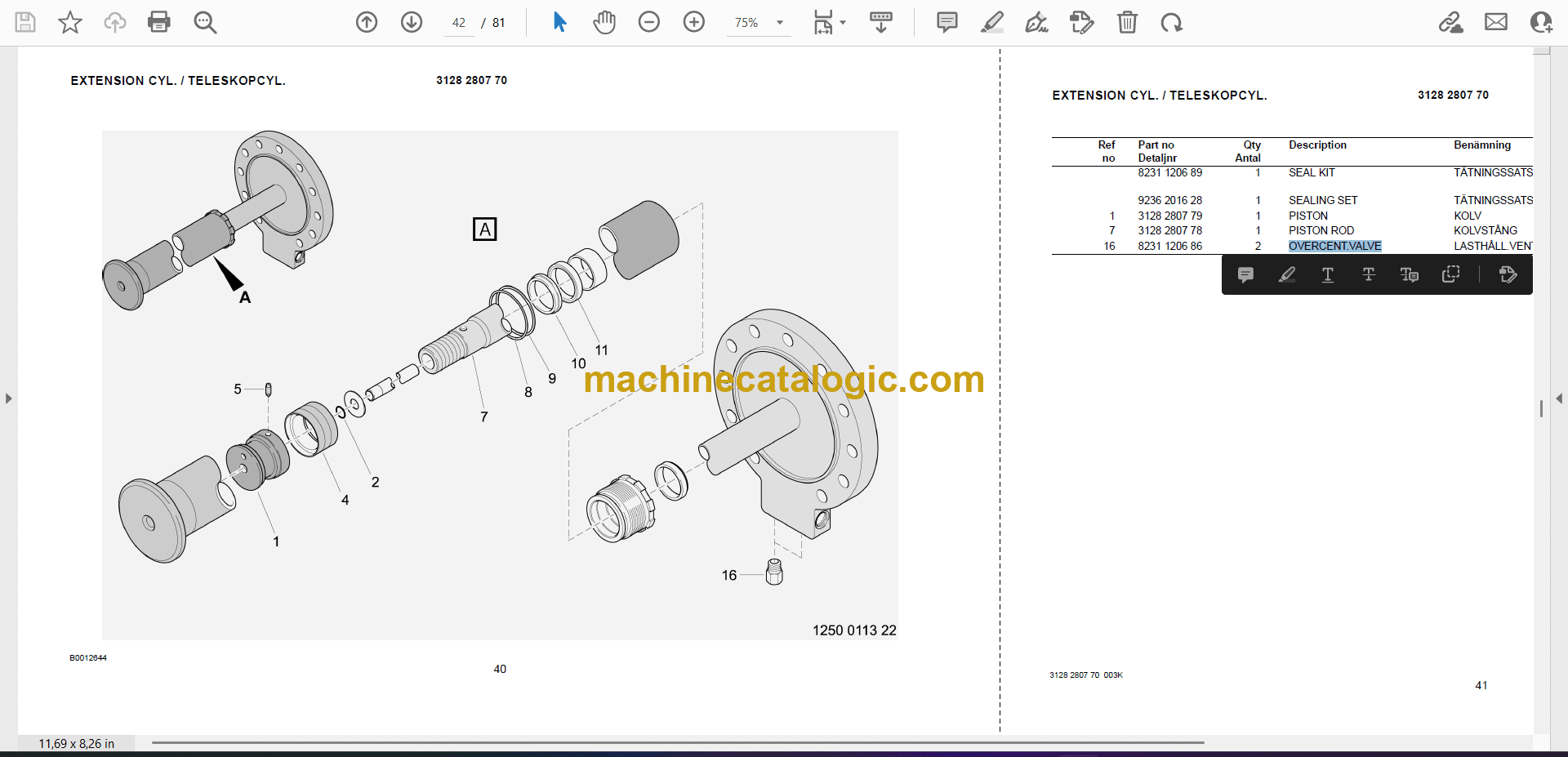

3128 2807 70 – – – – EXTENSION CYL. – – – – TELESKOPCYL. 41

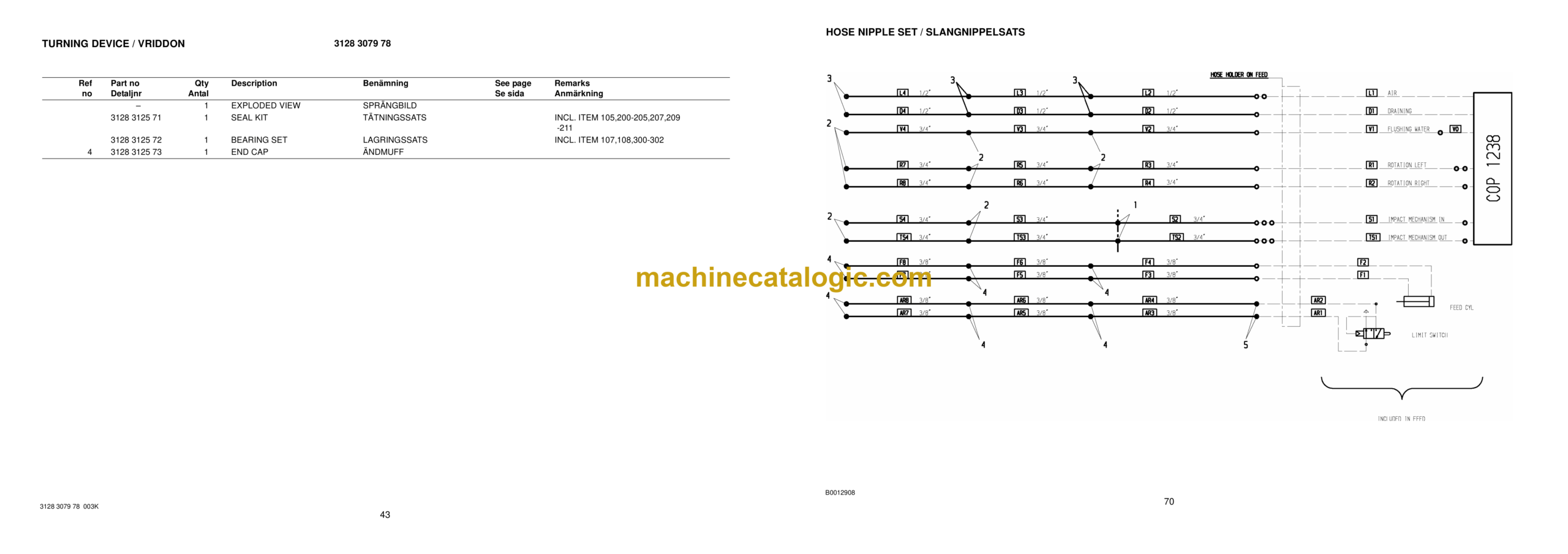

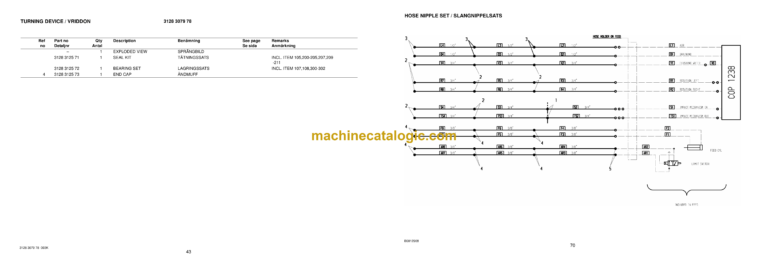

3128 3079 78 – – – TURNING DEVICE – – – VRIDDON 43
– – – – DOUBLE CH.VALVE – – – HYDRAULLÅS 45
– – – ROTATION UNIT – – ROTATIONSENHET 47
3128 3115 11 – – – EXPANDING SHAFT – – – EXP.AXEL 49
3128 3081 43 – – – HYDR. CYLINDER – – – HYDRAULCYLINDER 51
9122 5038 00 – – – HYDR. CYLINDER – – – HYDRAULCYLINDER 53
3128 3126 43 – – – TURNING DEVICE – – – VRIDDON 55
– – – HYDR. SYSTEM – – HYDRAULSYSTEM 57
8231 1201 10 – – – DOUBLE CH.VALVE – – – HYDRAULLÅS 59
– – – – HOSE SET – – – SLANGSATS 61
