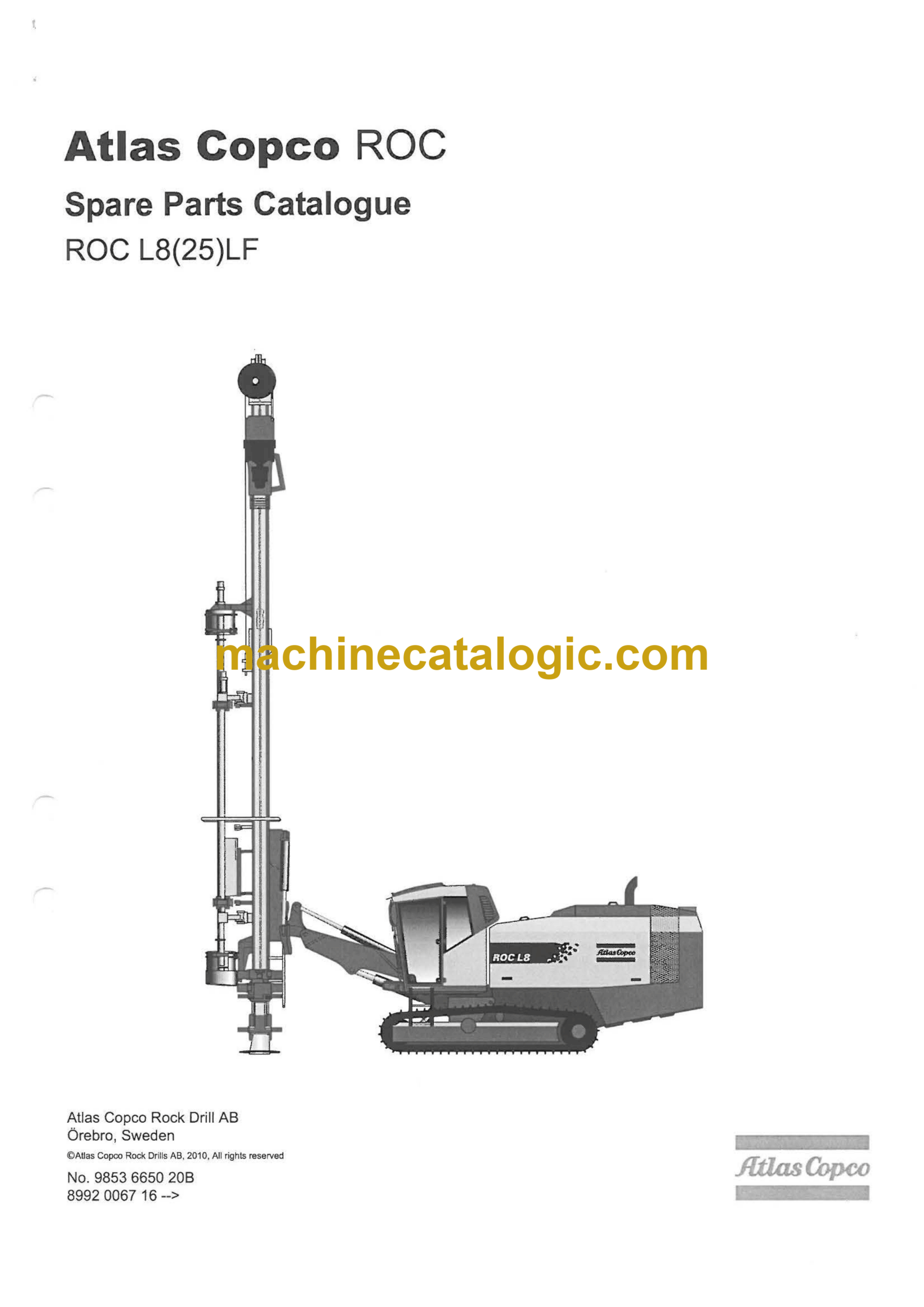

Atlas Copco L8(25)LF ROC Parts Manual

$ 59,00

Atlas Copco L8(25)LF ROC Parts Manual (9853 6650 208)

Format: PDF (Printable Document)

File Language: English

File Pages: 1359

File Size: 153.11 MB (Speed Download Link)

Brand: Atlas Copco

Model: L8(25)LF ROC

PM No: 25

Type of Document: Parts Manual

Description

Atlas Copco L8(25)LF ROC Parts Manual (9853 6650 208)

Atlas Copco L8(25)LF ROC Index:

1. AM PRODUCTS I AM PRODUKTER …………………………………………….. 5
2. DRILL CARRIAGE I BORRVAGN ……………………………………………….. 27
3. DRIVE UNIT I DRIVENHET ……………………………………………………….. 117
4. BOOM SYSTEM I BOMSYSTEM ………………………………………………. 241
5. FEED I MATARE ……………………………………………………………………… 277
6. CABIN I HYTT …………………………………………………………………………. 389
7. AIR COND.DET. I KLIMATDETALJER ……………………………………….. 525
8. OCT EQUIPMENT I DCT UTRUSTNING …………………………………….. 553

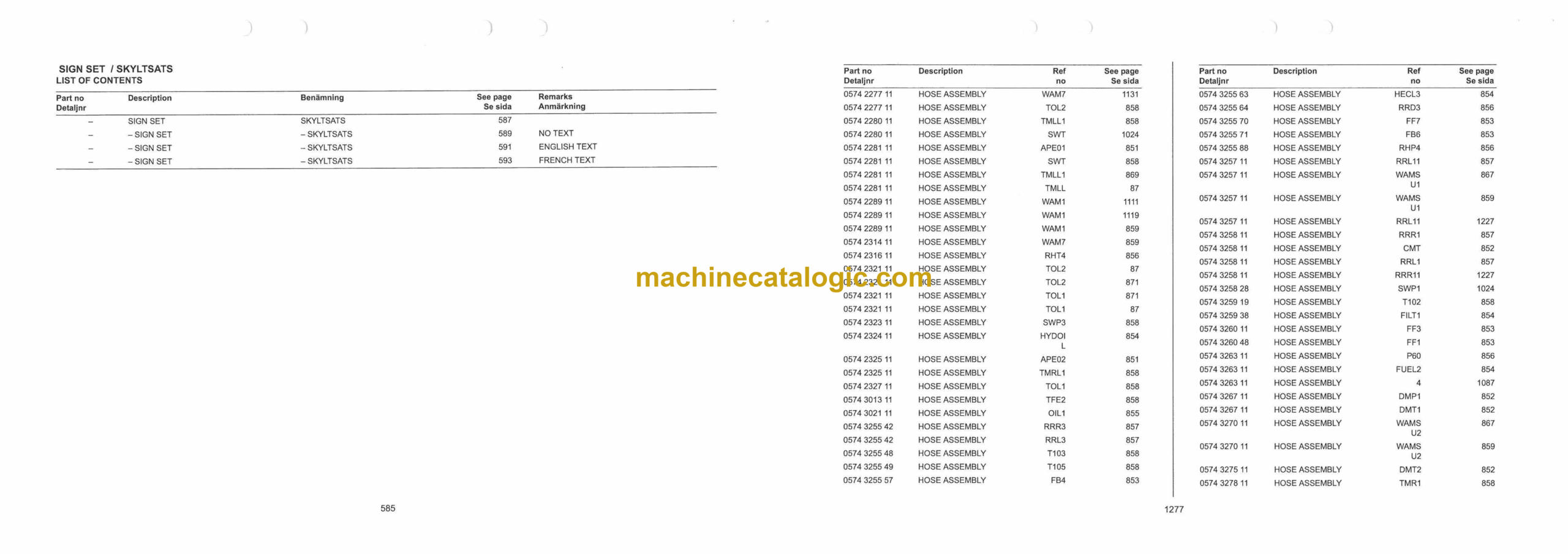

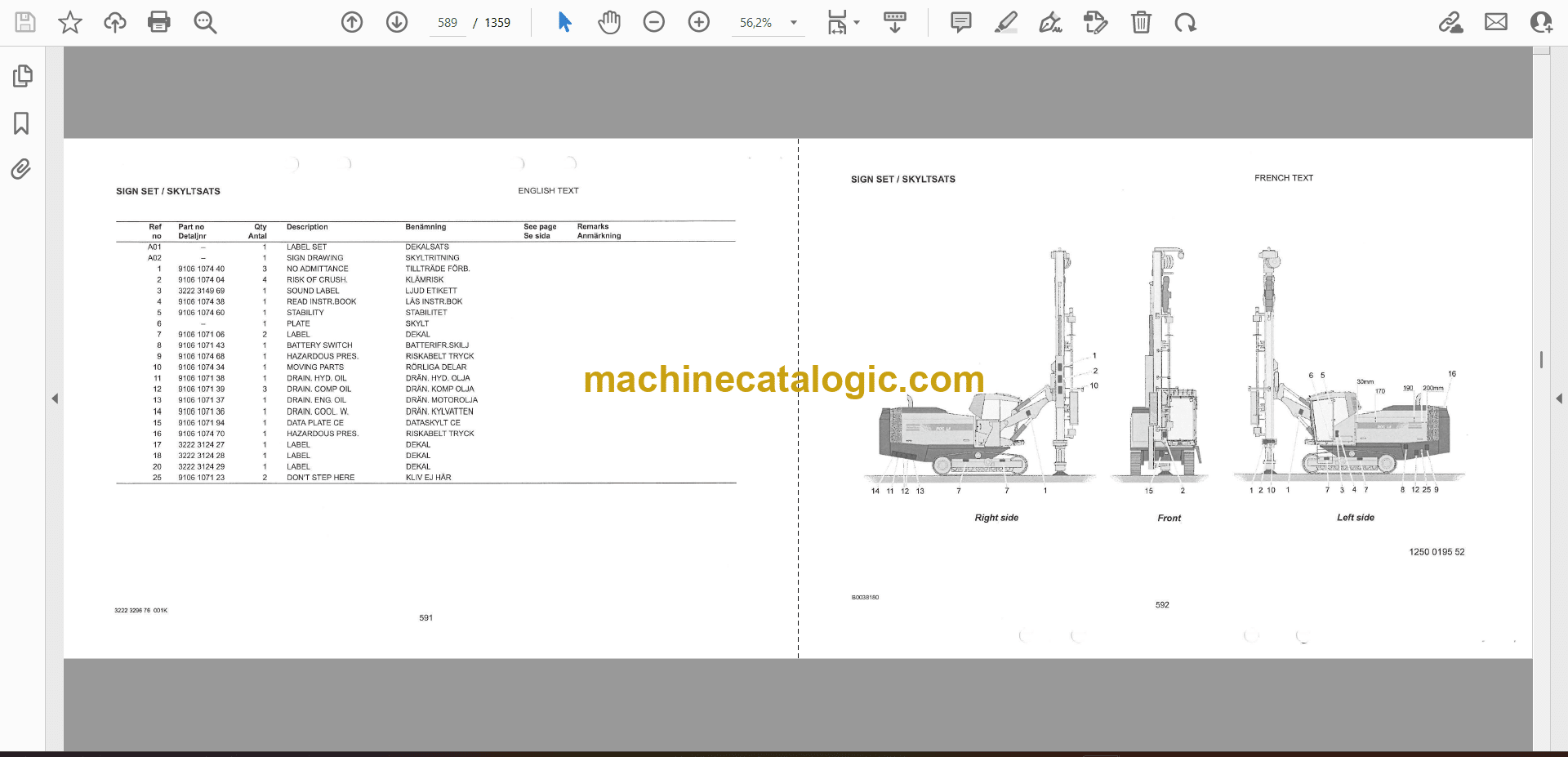

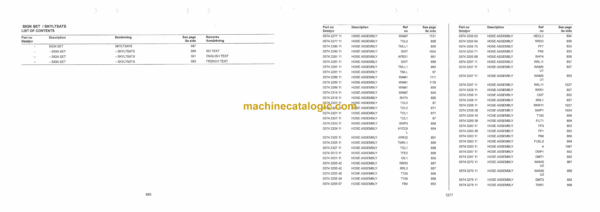

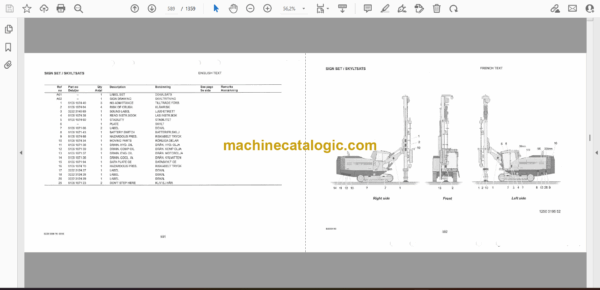

9. SIGN SET I SKYLTSATS ………………………………………………………….. 585
10. HYDR.OIL TANK I HYDRAULOLJETANK …………………………………. 595
11. HYDR. SYSTEM I HYDRAULSYSTEM ………………………………………. 599
12. AIR SYSTEM I LUFTSYSTEM ………………………………………………….. 765
13. HOSE SET COMPL. I SLANGSATS KOMPL ……………………………… 849
14. HOSE CONNECTION I SLANGANSLUTNING …………………………… 873
15. ELECTR. SYSTEM I ELSYSTEM ……………………………………………… 893
16. CABLE SET I KABELSATS .. ………………………………………………….. 1001
17. OPTION I OPTION ………………………………………………………………… 1009
18.CROSS REFERENCE LIST ……. ………………………………………………… 1257
