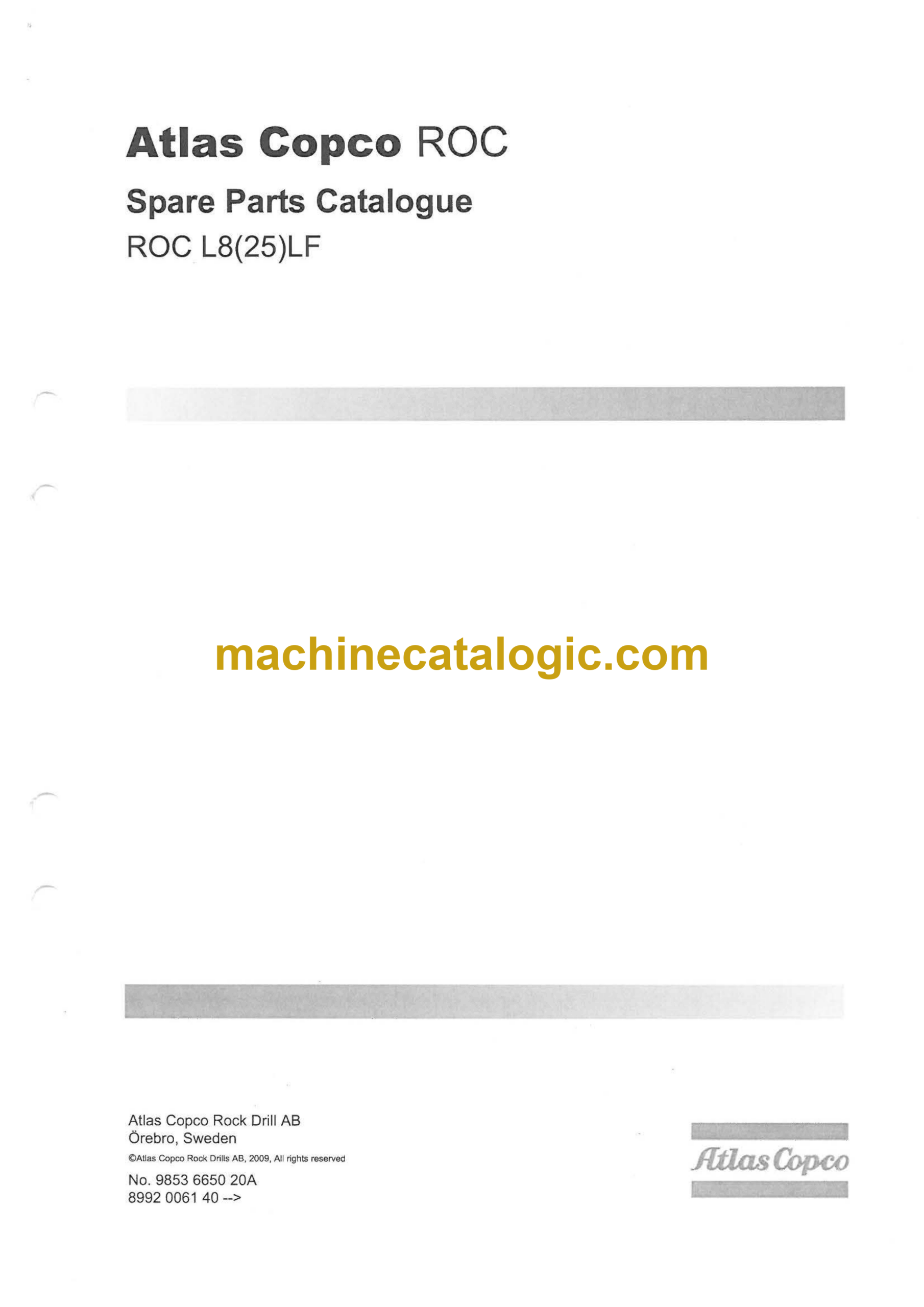

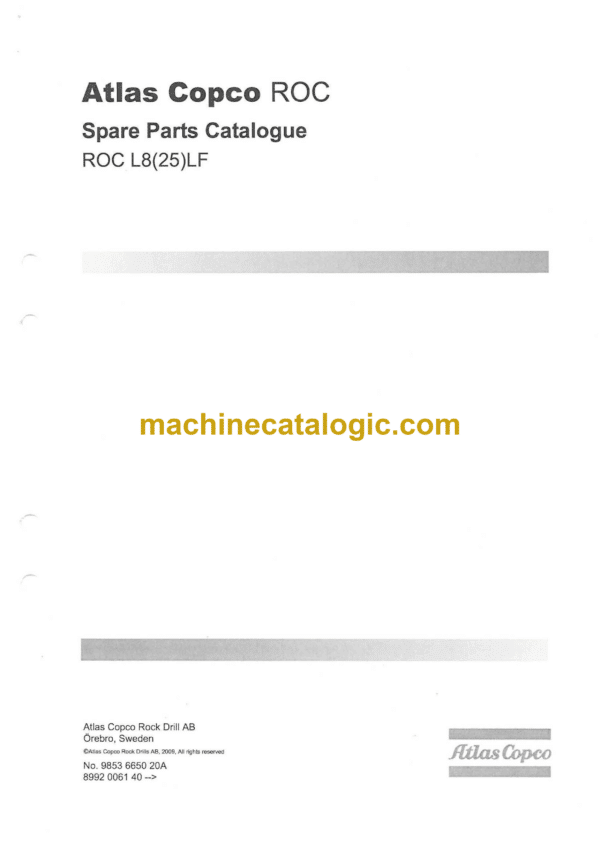

Atlas Copco L8(25)LF ROC Parts Manual (9853 6650 20A)

Atlas Copco L8(25)LF ROC Index:

1. AM PRODUCTS I AM PRODUKTER …………………………………………….. 5
2. DRILL CARRIAGE I BORRVAGN ……………………………………………….. 27
3. DRIVE UNIT I DRIVENHET ………….. …………………………………………… 117
4. BOOM SYSTEM I BOMSYSTEM ………………………………………………. 241
5. FEED I MATARE ……………… …………… ………………………………………… 277
6. CABIN I HYTT …………………………………………………………………………. 389
7. AIR COND.DET. I KLIMATDETALJER ……………………………………….. 525
– 8. DCT EQUIPMENT I DCT UTRUSTNING …………………………………….. 553
9. SIGN SET I SKYLTSATS ……… ………………………………………………….. 585
10. HYDR.OIL TANK I HYDRAULOLJETANK …………………………………. 595
11. HYDR. SYSTEM I HYDRAULSYSTEM ………………………………………. 599
12. AIR SYSTEM I LUFTSYSTEM ………………………………………………….. 765
13. HOSE SET COMPL. I SLANGSATS KOMPL ……………………………… 849
14. HOSE CONNECTION I SLANGANSLUTNING …………………………… 861
15. ELECTR. SYSTEM I ELSYSTEM …… ………………………………………… 881 – 16. CABLE SET I KABELSATS ………………………………….. : ………………… 989
17. OPTION I OPTION ………………………………………………………………….. 997
18.CROSS REFERENCE LIST ……………………… ………………………………. 1245
