Atlas Copco PowerROC ICM260 Parts Catalog
Atlas Copco PowerROC ICM260 Index:
Table of Content
1. MAINFRAME…………………………………………………………………………………….. 5
ICM-260 RIG WITH WI……………………………………………………………………………………………. 11

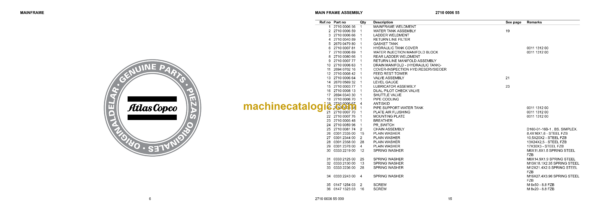

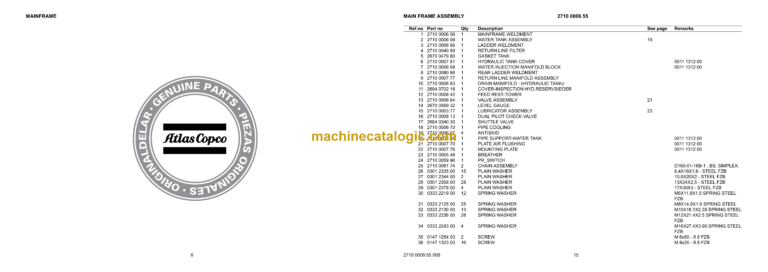

MAIN FRAME ASSEMBLY………………………………………………………………………………………. 15
FIRE EXTINGUSTER MTG ASSLY……………………………………………………………………………25
2. BOOM UNIT……………………………………………………………………………………..27
BOOM ASSEMBLY………………………………………………………………………………………………….31
BOOM ASSEMBLY COMPLETE……………………………………………………………………………….35
CYLINDER BOOM LIFT………………………………………………………………………………………….. 39
CYLINDER GUIDE EXTENSION……………………………………………………………………………… 41
CYLINDER GUIDE DUMP & SWG…………………………………………………………………………….43
GAUGE ASSLY. COMPLETE…………………………………………………………………………………… 45
3. DRILL GUIDE………………………………………………………………………………….. 47
DRILL GUIDE ASSEMBLY………………………………………………………………………………………. 53
4. POWER PACK………………………………………………………………………………….61
POWER PACK ASSEMBLY…………………………………………………………………………………….. 65
5. CABIN ASSEMBLY………………………………………………………………………….. 77
CABIN ASSEMBLY………………………………………………………………………………………………….85
ELECTRICAL CABINET ASSEMBLY…………………………………………………………………………91
FRONT CONSOLE………………………………………………………………………………………………….93
DOOR ASSEMBLY………………………………………………………………………………………………….97

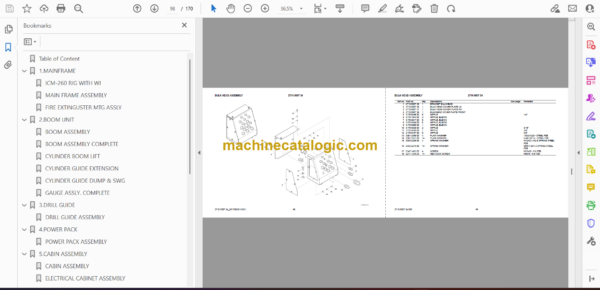

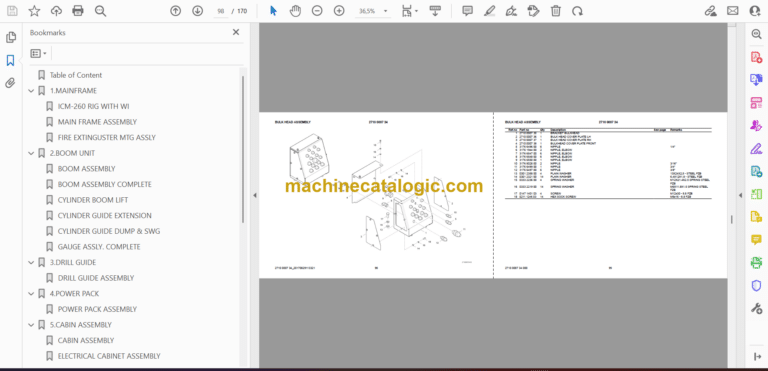

BULK HEAD ASSEMBLY………………………………………………………………………………………… 99
AIRFLUSHING ASSY…………………………………………………………………………………………….101
AC SEALING……………………………………………………………………………………………………….. 103
6. UNDERCARRIER…………………………………………………………………………… 105
ASSEMBLY UNDER CARRIAGE……………………………………………………………………………. 109
7. HYDR SYSTEM……………………………………………………………………………… 135
ASSEMBLY PUMP DRIVE…………………………………………………………………………………….. 139
CYL.GUIDE OSCIL(P2744)…………………………………………………………………………………….145
DIVERTER VALVE…………………………………………………………………………………………………147
TRACTION OSCILLATION VALVE…………………………………………………………………………..149
FEED VALVE……………………………………………………………………………………………………….. 151
ROTATION VALVE…………………………………………………………………………………………………153
AUXILIARY VALVE 2……………………………………………………………………………………………..155

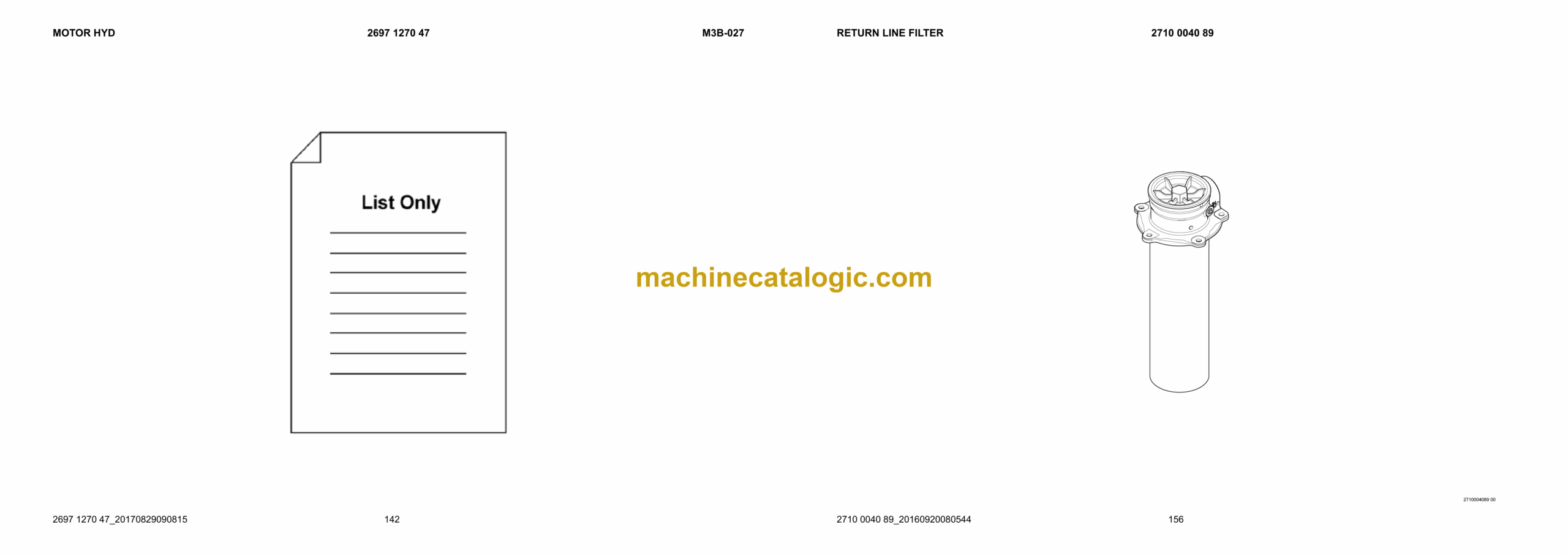

RETURN LINE FILTER…………………………………………………………………………………………..157
CROSS REFERENCE LIST ………………………………………………………………….. 159
