Description
Atlas Copco ROC F9-11 Drilling Rig Parts Catalog
Atlas Copco ROC F9-11 Drilling Rig Index:

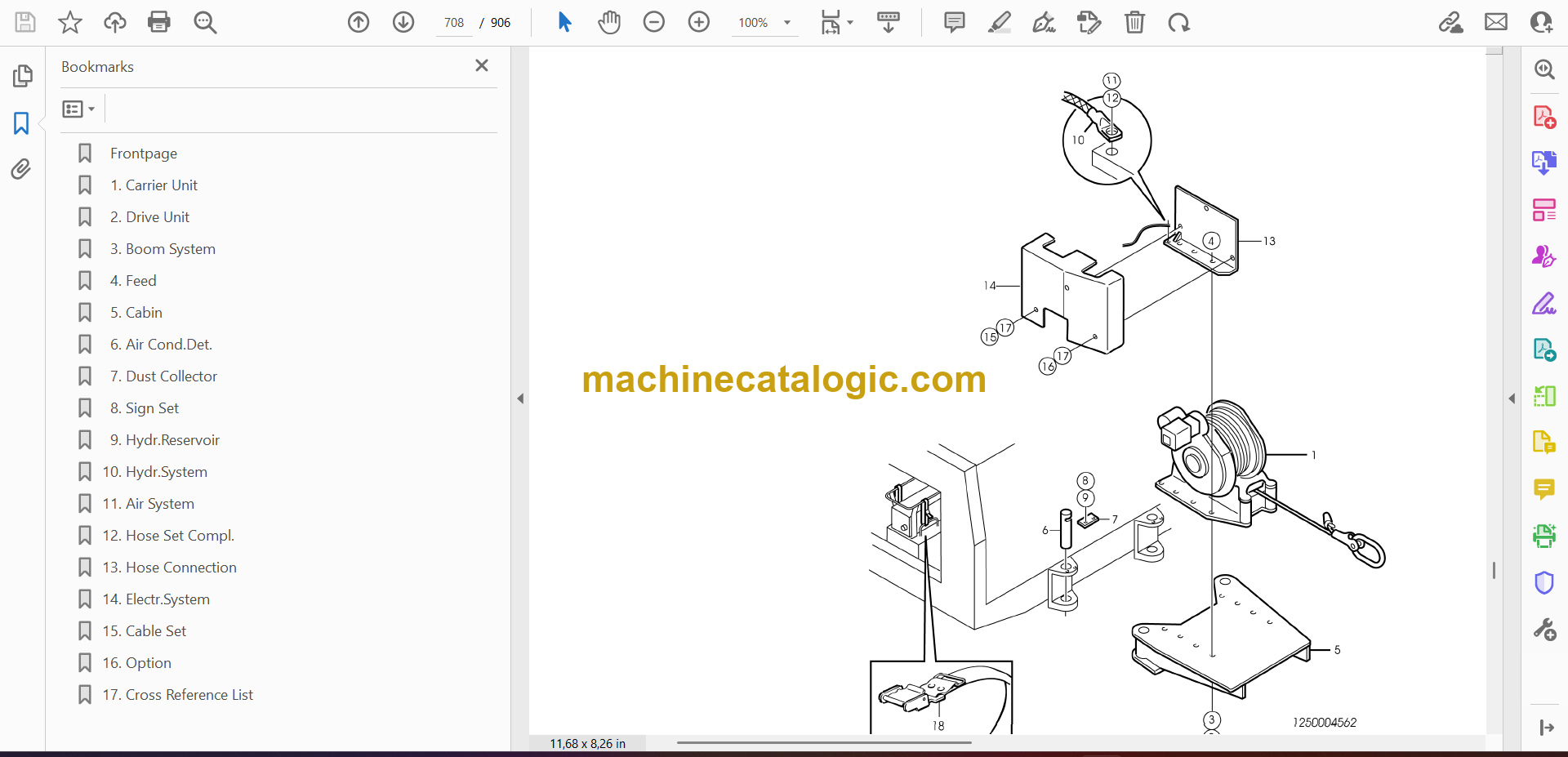

Table of Content / Innehållsförteckning
1. CARRIER UNIT / BÄRARENHET ………………………………………………….. 5
2. DRIVE UNIT / DRIVENHET ………………………………………………………… 79
3. BOOM SYSTEM / BOMSYSTEM ………………………………………………. 143
4. FEED / MATARE ……………………………………………………………………… 181
5. CABIN / HYTT …………………………………………………………………………. 239
6. AIR COND.DET. / KLIMATDETALJER ……………………………………….. 313
7. DUST COLLECTOR / DAMMAVSKILJARE ………………………………… 339
8. SIGN SET / SKYLTSATS ………………………………………………………….. 355
9. HYDR. RESERVOIR / HYDRAULTANK ……………………………………… 363

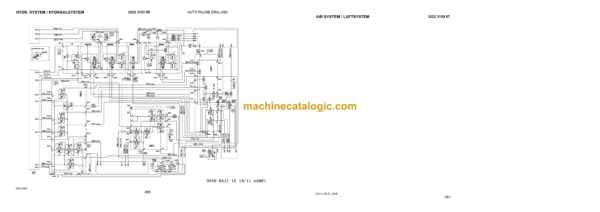

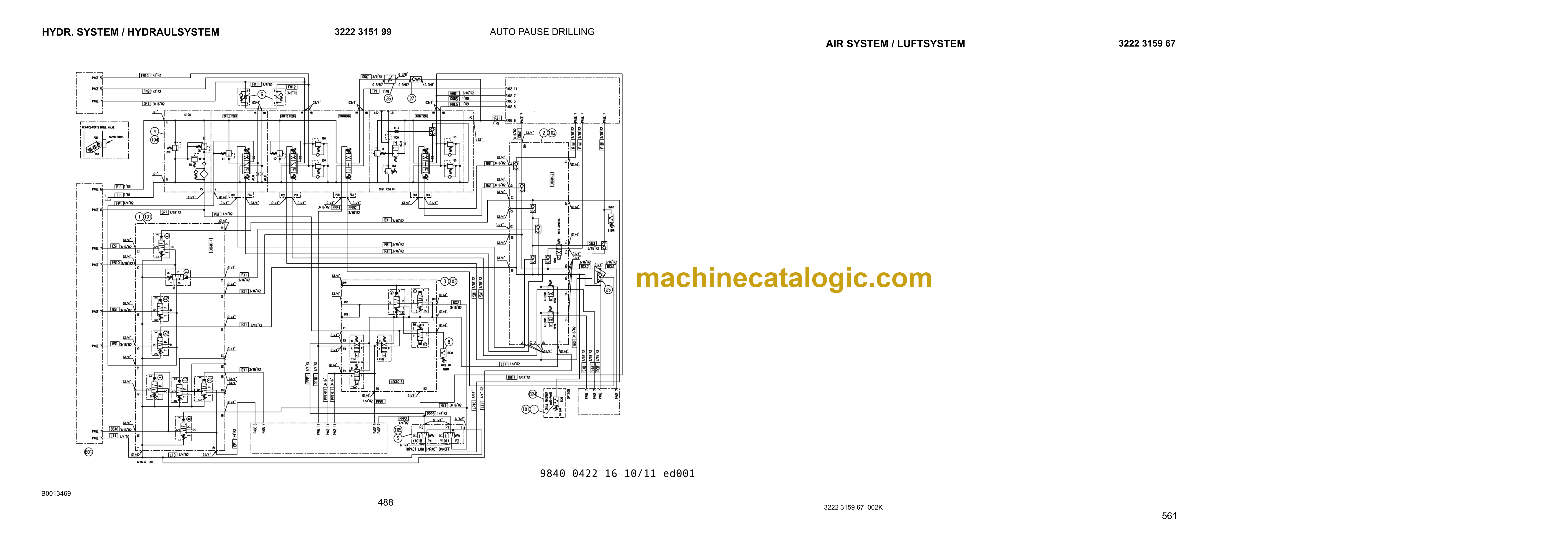

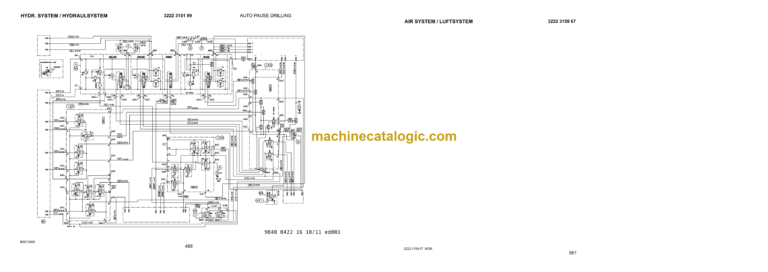

10. HYDR. SYSTEM / HYDRAULSYSTEM ………………………………………. 371
11. AIR SYSTEM / LUFTSYSTEM ………………………………………………….. 497
12. HOSE SET COMPL. / SLANGSATS KOMPL ……………………………… 577

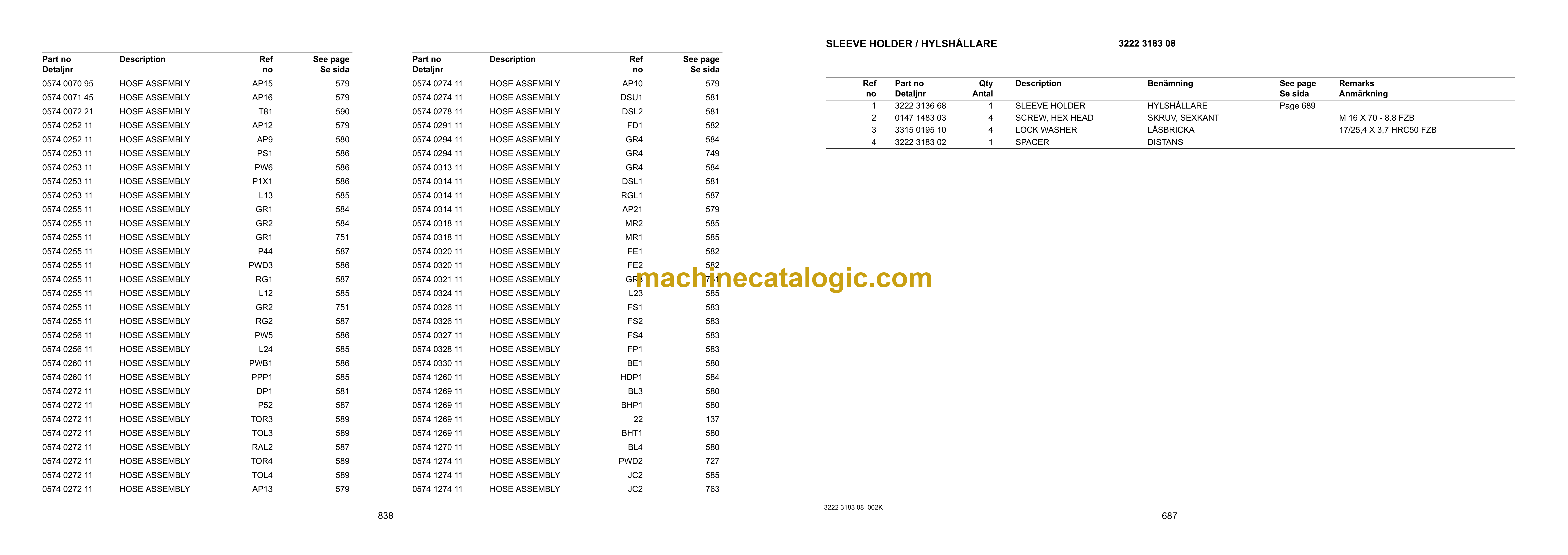

13. HOSE CONNECTION / SLANGANSLUTNING …………………………… 591
14. ELECTR. SYSTEM / ELSYSTEM ……………………………………………….611
15. CABLE SET / KABELSATS ……………………………………………………… 675
16. OPTION / OPTION ………………………………………………………………….. 679
17. CROSS REFERENCE LIST ……………………………………………………….. 821
