Description
Bell B30D Tracked Machine Parts Manual (872162)
Bell B30D Tracked Machine Index:
ACTUATOR ASSEMBLY . . . . . . . . . . . . . 3-65
AIR CLEANER . . . . . . . . . . . . . . . . . . . 2-67
AIR DUCTING, HVAC SYSTEM. . . . . . . . . . 7-45
AIR DUCTING, HVAC SYSTEM . . . . . . . . . 7-47
AIR INTAKE SYSTEM . . . . . . . . . . . . . . 2-65
AIRCON DRIER UNIT AND PIPING. . . . . . . . 7-49
AIRCON SYSTEM , CAB . . . . . . . . . . . . . 7-55
AIRCON SYSTEM: FRONT CHASSIS . . . . . . 7-53
AIRCON UNIT . . . . . . . . . . . . . . . . . . . 7-51
ARTIC JOINT BEARING ASSEMBLY . . . . . . 7-101
AXLE, FRONT . . . . . . . . . . . . . . . . . . 3-69
AXLE, REAR. . . . . . . . . . . . . . . . . . . . 3-75
AXLES, DIFFS & FINAL DRIVES : REPAIR/OVERHAUL
10-23
B
BASE, SEAT ASSEMBLY, SEARS . . . . . . . . 7-43
BATTERY BOX KIT . . . . . . . . . . . . . . . . 7-85
BELLY PLATE . . . . . . . . . . . . . . . . . . 7-79
BIN HEATING KIT . . . . . . . . . . . . . . . . . 2-63
BIN LINER KIT. . . . . . . . . . . . . . . . . . . 7-117
BIN PIVOT . . . . . . . . . . . . . . . . . . . . . 7-113
BIN PIVOT . . . . . . . . . . . . . . . . . . . . 7-115
BIN, MISCELLANEOUS PARTS . . . . . . . . . 7-109,7-111
BONNET CATCH . . . . . . . . . . . . . . . . . 7-73,7-75
BONNET KIT . . . . . . . . . . . . . . . . . . . 7-67
BONNET KIT: DETAIL A . . . . . . . . . . . . . 7-69
BONNET KIT: DETAIL B . . . . . . . . . . . . . 7-71
BRAKE – SECTION D . . . . . . . . . . . . . . . 3-15
BRAKE – SECTION E . . . . . . . . . . . . . . . 3-17
BRAKE – SECTION F . . . . . . . . . . . . . . . 3-19
BRAKE – SECTION G . . . . . . . . . . . . . . . 3-21
BRAKE ASSEMBLY . . . . . . . . . . . . . . . . 3-81
BRAKE PEDAL . . . . . . . . . . . . . . . . . . 4-9
C
CAB ASSEMBLY . . . . . . . . . . . . . . . . . 7-1
CAB DOOR ASSEMBLY . . . . . . . . . . . . . 7-9
CAB HARNESS . . . . . . . . . . . . . . . . . . 6-1,6-3,6-5
CAB HARNESS & RELATED COMPONENTS – DETAIL A
6-7,6-11
CAB HARNESS & RELATED COMPONENTS – DETAIL B
6-9,6-13
CAB HARNESS & RELATED COMPONENTS – DETAIL C
6-15
CAB INTERIOR HATCHES AND LIDS . . . . . . 7-29
CAB INTERIOR TRIM . . . . . . . . . . . . . . . 7-31
CAB MOUNTINGS. . . . . . . . . . . . . . . . . 7-15
CAB SHELL AND RELATED PARTS . . . . . . . 7-3
CAB WINDOWS . . . . . . . . . . . . . . . . . . 7-5,7-7
CAB: INTERIOR COMPONENTS . . . . . . . . . 7-25
CAB: INTERIOR COMPONENTS . . . . . . . . . 7-27
COUPLING . . . . . . . . . . . . . . . . . . . . 3-13
D
DASH SWITCHES . . . . . . . . . . . . . . . . 6-21,6-23
DECALS . . . . . . . . . . . . . . . . . . . . . . 7-119,7-121
DIAGNOSTIC TOOLS (DRIVELINE) . . . . . . . 10-33
DOOR LATCH . . . . . . . . . . . . . . . . . . . 7-11
DOOR, HVAC SYSTEM . . . . . . . . . . . . . . 7-13
DROPBOX HOUSING . . . . . . . . . . . . . . . 3-55
DROPBOX IDLER . . . . . . . . . . . . . . . . . 3-59
DROPBOX INPUT SHAFT . . . . . . . . . . . . 3-57
DROPBOX MISCELLANEOUS PARTS . . . . . 3-51
DROPBOX MOUNTINGS . . . . . . . . . . . . . 3-53
DROPBOX OUTPUT SHAFT . . . . . . . . . . . 3-61
E
ELECTRICAL ACCESSORIES . . . . . . . . . . 6-29
ELECTRICAL ACCESSORIES . . . . . . . . . . 6-31
ELECTRICAL CONNEC TORS – CAB HARNESS 6-79,6-81
ELECTRICAL CONNECTORS – ARTIC HARNESS6-67,6-83
ELECTRICAL CONNECTORS – CAB HARNESS . 6-63,6-65,6-77
ELECTRICAL CONNECTORS – CAB HARNESS 6-61
ELECTRICAL CONNECTORS – ENGINE HARNESS
6-75,6-89
ELECTRICAL CONNECTORS – ENGINE HARNESS
6-73,6-91

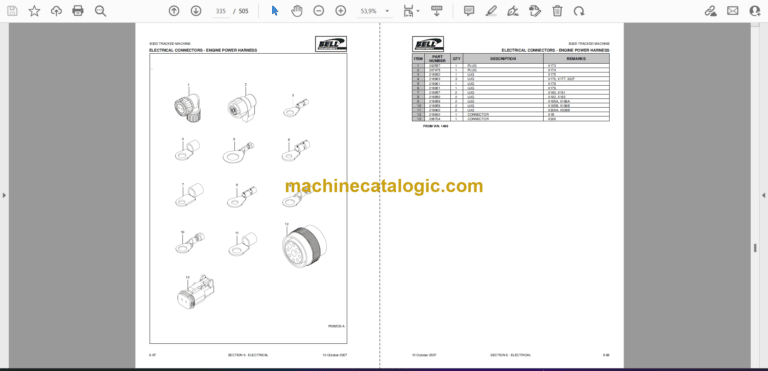

ELECTRICAL CONNECTORS – ENGINE POWER HARNESS
6-71,6-87
ELECTRICAL CONNECTORS – REAR HARNESS 6-69,6-85
ELECTRICAL SYSTEM, FRONT CHASSIS. . . . 6-33
EMERGENCY STEERING PUMP CHECK VALVE 4-13
ENGINE – OM906LA REPAIR TOOLS, KIT 26212710-5,10-7
ENGINE – OM906LA REPAIR TOOLS, KIT 262128
10-9
ENGINE – OM906LA SERVICE TOOLS, KT 262126
10-1,10-3
ENGINE COOLING SYSTEM . . . . . . . . . . . 2-73,2-75
ENGINE HARNESS AND RELATED PARTS . . . 6-35,6-37
ENGINE HARNESS AND RELATED PARTS . . . 6-39
ENGINE, AIR COMPRESSOR . . . . . . . . . . 2-31

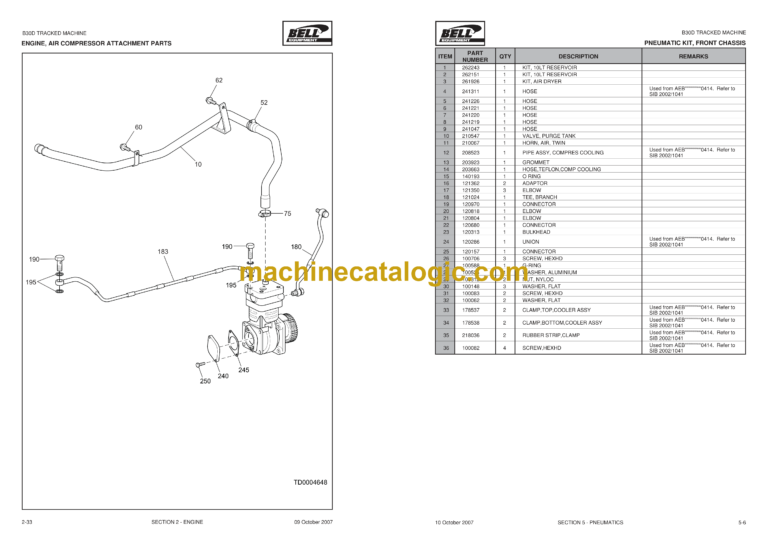

ENGINE, AIR COMPRESSOR ATTACHMENT PARTS
2-33,2-35,2-36
ENGINE, AIRCONDITIONER COMPRESSOR . . 2-59
ENGINE, ALTERNATOR AND ATTACHMENT . . 2-45
ENGINE, CAMSHAFT AND TIMING PARTS . . . 2-19
ENGINE, CONNECTING ROD AND PISTONS . . 2-17
ENGINE, COOLING SYSTEM, RADIATOR . . . . 2-77
ENGINE, CRANKSHAFT AND FLYWHEEL. . . . 2-15
ENGINE, CYLINDER CRANKCASE, COVER, GASKET KIT
2-3
ENGINE, CYLINDER HEAD COVER . . . . . . . 2-13
ENGINE, CYLINDER HEAD, ROCKER ARM . . . 2-11
ENGINE, CYLINDER HEAD, VALVES, GASKET KIT
2-9
ENGINE, ELECTRICAL EQUIPMENT. . . . . . . 2-41
ENGINE, ENGINE SUPPORTS & ATTACHMENT PARTS
2-57
ENGINE, EXHAUST MANIFOLD . . . . . . . . . 2-39
ENGINE, FAN . . . . . . . . . . . . . . . . . . . 2-55
ENGINE, FLAMESTART SYSTEM . . . . . . . . 2-27
ENGINE, FUEL FILTER . . . . . . . . . . . . . . 2-25
1-1 ALPHABETICAL INDEX 09 October 2007
ALPHABETICAL INDEX
ENGINE, FUEL LINES. . . . . . . . . . . . . . . 2-23
ENGINE, INJECTION PUMP . . . . . . . . . . . 2-21
ENGINE, INTAKE MANIFOLD. . . . . . . . . . . 2-37
ENGINE, MISCELLANEOUS ITEMS . . . . . . . 2-1
ENGINE, OIL FILTER AND OIL COOLER. . . . . 2-49
ENGINE, OIL LINES . . . . . . . . . . . . . . . . 2-51
ENGINE, OIL PAN AND DIPSTICK . . . . . . . . 2-7
ENGINE, OIL PUMP . . . . . . . . . . . . . . . . 2-47

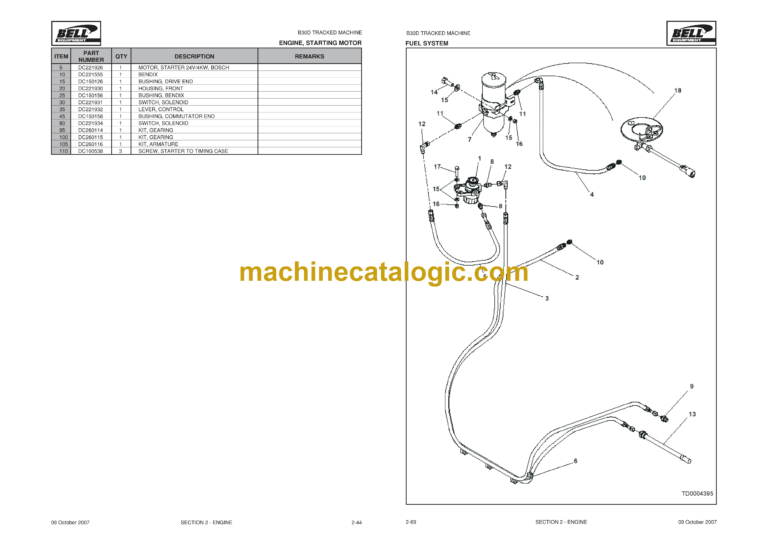

ENGINE, STARTING MOTOR. . . . . . . . . . . 2-43
ENGINE, TIMING CASE AND FLYWHEEL HOUSING
2-5
ENGINE, TURBO CHARGER . . . . . . . . . . . 2-29
ENGINE, WATER PUMP . . . . . . . . . . . . . 2-53
EXHAUST SYSTEM . . . . . . . . . . . . . . . . 2-61
EXTRA BATTERIES KIT . . . . . . . . . . . . . 6-49
F
FRAME AND OSCILLATION TOOLS . . . . . . . 10-31
FRONT CHASSIS KIT . . . . . . . . . . . . . . . 7-59
FRONT CHASSIS KIT . . . . . . . . . . . . . . 7-61,7-63
FRONT CHASSIS KIT, MK 4 . . . . . . . . . . . 7-65
FRONT DIFFERENTIAL ASSEMBLY . . . . . . . 3-71
FRONT SUSPENSION . . . . . . . . . . . . . . 7-89
FUEL SYSTEM . . . . . . . . . . . . . . . . . . 2-69
FUEL TANK MISC. PARTS . . . . . . . . . . . . 7-87
FUEL-WATER FILTER UNIT . . . . . . . . . . . 2-71
G
GEAR RATIO 13100 TRANSFER CASE . . . . . 10-11,10-13
GEARBOX PLANETARY . . . . . . . . . . . . . 3-11
GRILL . . . . . . . . . . . . . . . . . . . . . . . 7-77
H
HEAT EXCHANGER. . . . . . . . . . . . . . . . 3-45
HVAC SEALING, CAB . . . . . . . . . . . . . . . 7-57
HYDRAULIC KIT: CAB TILT SYSTEM . . . . . . 4-17
HYDRAULIC KIT: CAB TILT SYSTEM . . . . . . 4-15
HYDRAULIC PUMP A10V . . . . . . . . . . . . 4-35
HYDRAULIC SYSTEM, CAB – DETAIL A . . . . . 4-1,4-3
HYDRAULIC SYSTEM, CAB – DETAIL B . . . . . 4-7
HYDRAULIC SYSTEM, CAB – DETAIL B . . . . . 4-5
HYDRAULIC SYSTEM, FRONT CHASSIS – DETAIL A
4-21
HYDRAULIC SYSTEM, FRONT CHASSIS – DETAIL B
4-33
HYDRAULIC SYSTEM, REAR CHASSIS . . . . . 4-41
HYDRAULIC TANK . . . . . . . . . . . . . . . . 7-97
HYDRAULIC TANK . . . . . . . . . . . . . . . . 7-95
HYDRAULIC TANK FILTER ASSEMBLY . . . . . 7-99
HYDRAULIC TANK MISC. PARTS . . . . . . . . 4-39
HYDRAULICS: REPAIR/OVERHAUL . . . . . . . 10-29
I
INTERNAL TRANSMISSION HARNESS . . . . . 6-17,6-19
K
KIT, 10L RESERVOIR . . . . . . . . . . . . . . . 5-15
KIT, 10L RESERVOIR . . . . . . . . . . . . . . 5-13
KIT, AIR DRIER . . . . . . . . . . . . . . . . . . 5-9
KIT, BRAKES AND BREATHER, FRONT . . . . . 3-85
KIT, BRAKES AND BREATHER, REAR. . . . . . 3-83
KIT, REPAIR, AIR DRIER . . . . . . . . . . . . . 5-11
L
LIGHT BREAKDOWNS . . . . . . . . . . . . . . 6-59
LUBRICANTS . . . . . . . . . . . . . . . . . . . 9-1
M
MUDGUARDS AND MISCELLANEOUS PARTS . 7-81
MUDGUARDS AND MISCELLANEOUS PARTS . 7-83
O
OIL SUPPLY . . . . . . . . . . . . . . . . . . . . 3-6
OIL SUPPLY . . . . . . . . . . . . . . . . . . . 3-8
OIL SUPPLY COVER PLATE . . . . . . . . . . . 3-7
OIL SUPPLY, CONTROL INSERT . . . . . . . . 3-5
OPERATOR AND TRAINER SEAT INSTALLATION
7-37
OUTPUT . . . . . . . . . . . . . . . . . . . . . . 3-23
OUTPUT (Continued) . . . . . . . . . . . . . . . 3-25
P
PAINTS AND PROCEDURES . . . . . . . . . . . 9-3
PARK BRAKE . . . . . . . . . . . . . . . . . . . 3-63
PERIPHERALS . . . . . . . . . . . . . . . . . . 3-47
PLANETARY HUB, FRONT . . . . . . . . . . . . 3-89
PLANETARY HUB, REAR . . . . . . . . . . . . . 3-87
PNEUMATIC BLOCK ASSEMBLY . . . . . . . . 5-3
PNEUMATIC KIT, CAB . . . . . . . . . . . . . . 5-1
PNEUMATIC KIT, FRONT CHASSIS . . . . . . . 5-5
PNEUMATIC KIT: REAR CHASSIS . . . . . . . 5-17
POWER HARNESS AND BATTERY CABLES . . 6-45,6-47
POWER TAKE OFF . . . . . . . . . . . . . . . . 3-43
PROPSHAFTS. . . . . . . . . . . . . . . . . . . 3-67
PUMP, CAB TILT . . . . . . . . . . . . . . . . . 4-19
PURGE TANK VALVE. . . . . . . . . . . . . . . 5-7
R
REAR CHASSIS HARNESS AND COMPONENTS 6-55
REAR CHASSIS HARNESS AND COMPONENTS
6-51,6-53
REAR CHASSIS KIT. . . . . . . . . . . . . . . . 7-103,7-107
REAR CHASSIS KIT . . . . . . . . . . . . . . . 7-105
REAR DIFFERENTIAL ASSEMBLY . . . . . . . . 3-77,3-79
REAR VIEW MANUAL MIRRORS. . . . . . . . . 7-21
REAR VIEW MIRROR BRACKETS . . . . . . . . 7-17,7-19
REAR VIEW MIRROR ELECTRICAL KIT (OPTIONAL)
7-23
RETARDER VALVE . . . . . . . . . . . . . . . . 3-9
ROOF INTERIOR LINERS AND HATCH . . . . . 7-33
S
SEAT INSTALLATION, SEARS . . . . . . . . . . 7-41
SERVICE KITS . . . . . . . . . . . . . . . . . . 8-1
SHIFT CONTROL . . . . . . . . . . . . . . . . . 3-27
SHIFT CONTROL (Continued) . . . . . . . . . . 3-29
STEERING COLUMN . . . . . . . . . . . . . . . 7-35
STEERING CONTROL VALVE, EATON . . . . . 4-11
STEERING CYLINDER . . . . . . . . . . . . . . 4-29
STEERING CYLINDER . . . . . . . . . . . . . . 4-31
STEERING CYLINDER ASSEMBLY . . . . . . . 4-37
SUSPENSION STRUT . . . . . . . . . . . . . . 7-91,7-93
SUSPENSION: REPAIR/OVERHAUL . . . . . . . 10-27
T
THRU DRIVE . . . . . . . . . . . . . . . . . . . 3-73
TIP CYLINDER BREAKDOWN . . . . . . . . . . 4-43
TORQUE CONVERTER. . . . . . . . . . . . . . 3-41
TRAINER SEAT MOUNTING . . . . . . . . . . . 7-39
TRANSMISSION AND ARTIC HARNESS. . . . . 6-41
TRANSMISSION AND ARTIC HARNESS . . . . 6-43
TRANSMISSION COOLING SYSTEM . . . . . . 3-49
TRANSMISSION DIPSTICK . . . . . . . . . . . . 3-37
TRANSMISSION MISC. PARTS. . . . . . . . . . 3-1
TRANSMISSION OIL SUMP . . . . . . . . . . . 3-39
TYRE INFLATION KIT (OPTIONAL) . . . . . . . 10-35
V
VOAC BLOCK A . . . . . . . . . . . . . . . . . . 4-23
VOAC BLOCK B, VALVES . . . . . . . . . . . . 4-25
VOAC BLOCK C. . . . . . . . . . . . . . . . . . 4-27
W
WHIP ROD SWITCH . . . . . . . . . . . . . . . 6-57
WINDOW WIPER AND WASHER KIT . . . . . . 6-25,6-27
Z
ZF 6HP 592 C TRANSMISSION. . . . . . . . . . 10-21
ZF 6HP 592 C TRANSMISSION
. . . . . . . . . . . . . . . . . . . . . . . . . . 10-15,10-17,10
-19
ZF HK 3.18 LS DIFFERENTIAL . . . . . . . . . . 10-25
