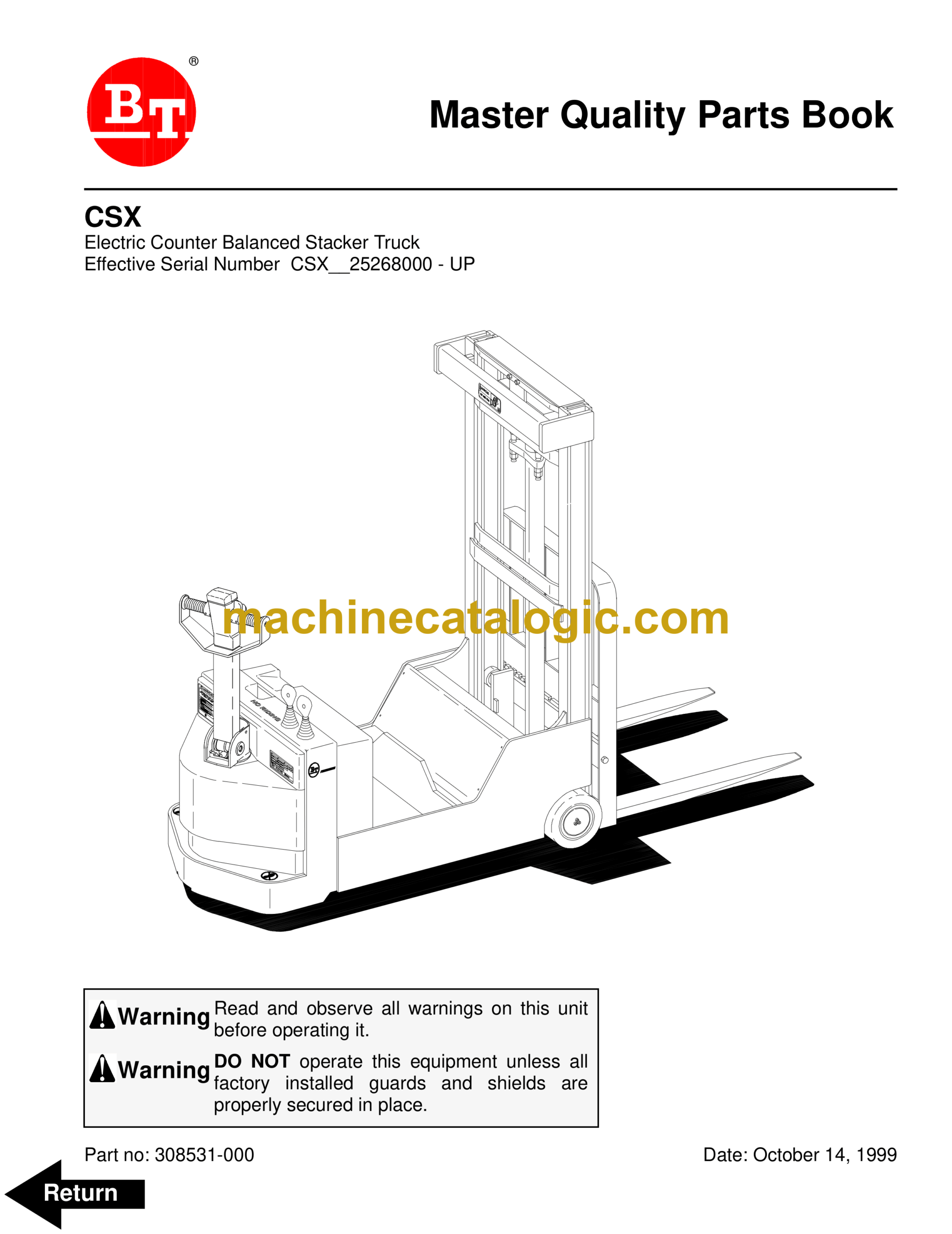

BT CSX Pedestrian Stacker Quality Parts Manual

Categories: ,

BT CSX Pedestrian Stacker Quality Parts Manual

Format: PDF (Printable Document)

File Language: English

File Pages: 246

File Size: 4.52 MB (Speed Download Link)

Brand: BT

Model: CSX

Type of Document: Quality Parts Manual

$ 40

Share:

BT CSX Pedestrian Stacker Quality Parts Manual

📘 Show Index

BT CSX Pedestrian Stacker Index:

F r o n t Cover
Parts Ordering Instructions
General Information
Index
0000 Chassis
0300-000 Frame / Chassis
0340-000 Inspection covers (Shields & guards)
0340-100 Inspection covers (“EE” electrical box)
0370-000 Counter balance weight
0390-000 Battery compartment parts (7 in. [178 mm] battery)
0390-100 Battery compartment parts (9 in. [229 mm] battery)
0390-200 Battery compartment parts (13.3 in. [338 mm] battery)
0640-000 Drivers controls (One spool valve handle)
0640-100 Drivers controls (Two spool valve handle)
0641-000 Drivers controls (Speed and direction)
0841-000 Driver protection (Reverser)
0850-000 Signs, warnings
1000 Motors
1750-000 Pump motor
1760-000 200 Amp system drive motor Serial Number 25268000 – 27108000
1760-001 200 Amp system drive motor Serial Number 27108001 – UP
1760-100 300 AMP system drive motor
2000 Transmission / Drive Gear
2550-000 Mechanical drive gear unit
3000 Brake / Wheel System

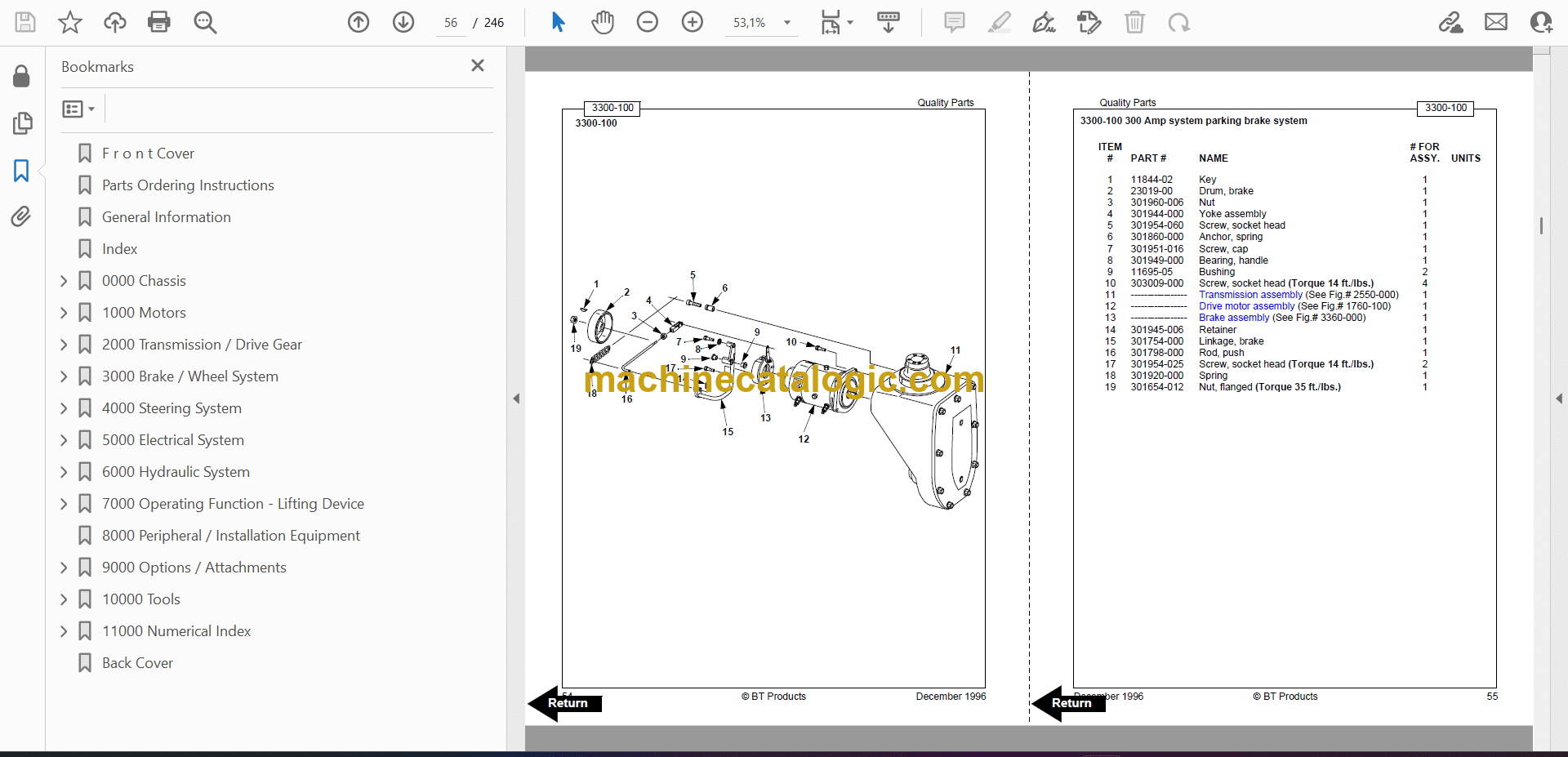

3300-000 200 Amp system parking brake system
3300-100 300 Amp system parking brake system
3360-000 Brake drum/disc assembly
3530-000 Drive wheel
3540-000 Support / swivel wheel
3550-000 Load wheels
3560-000 Caster assembly
4000 Steering System
4110-000 Steering arm / wheel (Tiler arm) Serial Number 25268000 – 27323100
4110-001 Steering arm / wheel (Tiler arm) Serial Number 27324000 – UP
4111-000 Steering arm / wheel (Control head assembly)
4180-000 Steering / radial bearing
5000 Electrical System
5161-000 Horn
5181-000 Static strap
5190-000 Battery connector
5192-000 200 Amp system line contactor
5192-100 300 Amp system line contactor
5192-200 200/300 Amp system “EE” line contactor
5230-000 Voltage / battery indicator
5290-000 Hourmeter / speedometer
5310-000 Start / stop switch
5330-000 Speed controls
5390-000 Control cables / harnesses
5430-000 200 Amp system motor power cables
5430-100 300 Amp system motor power cables
5460-000 200 Amp system transistor panel
5460-100 300 Amp system transistor panel
5510-000 Micro switches
5590-000 Control cables, harness
5610-000 Pump contactor
5911-000 Power circuit breaker
6000 Hydraulic System

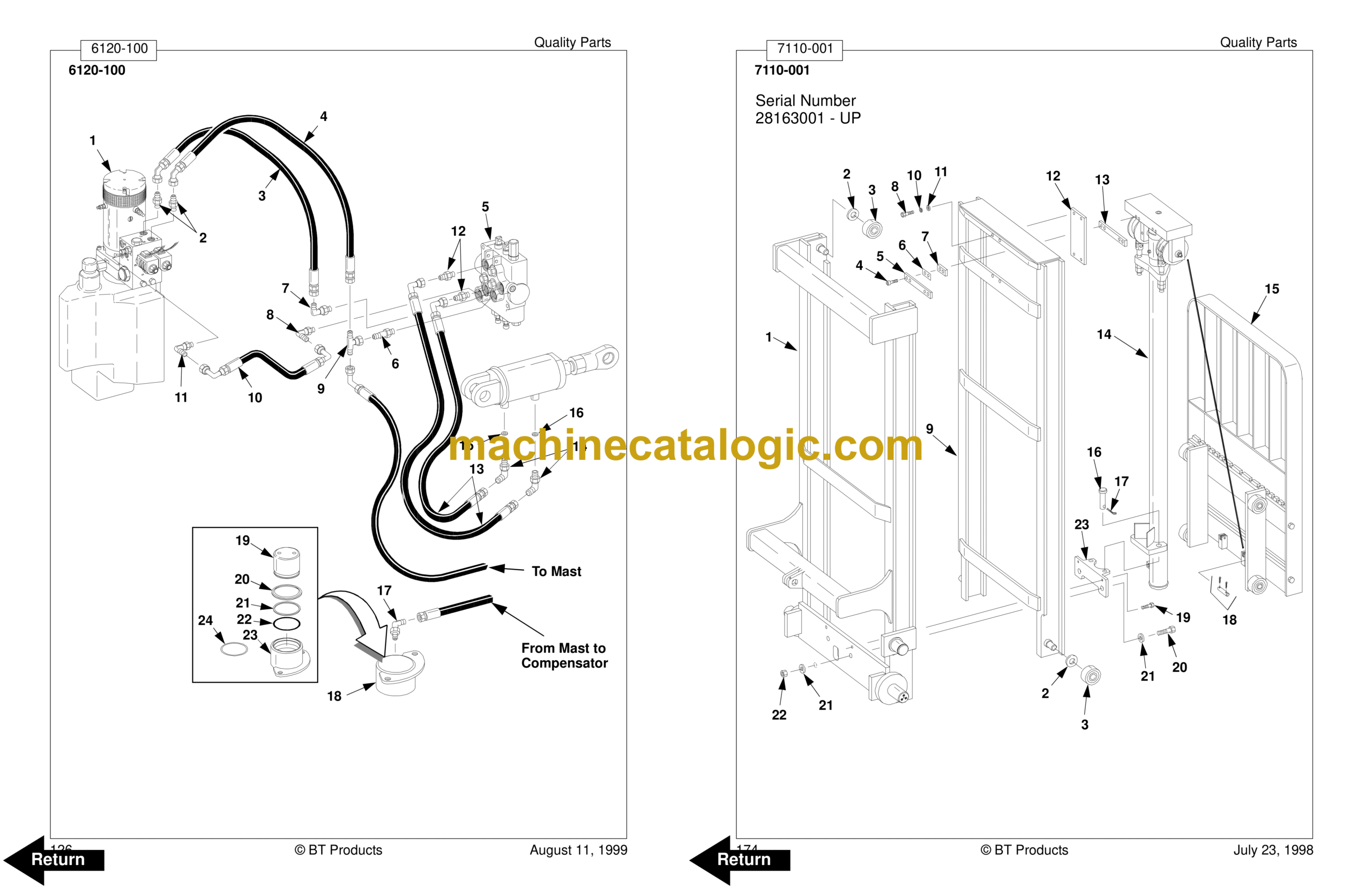

6100-000 Hydraulic pump (Model # DM-1005)
6100-001 Hydraulic pump (Model # DM-1006)
6110-000 Hydraulic tank
6120-000 One spool valve hydraulic lines
6120-100 Two spool valve hydraulic lines
6125-000 CSX10 Two stage mast lines Serial Number 25268000 – 28163000
6125-001 CSX10 Two stage mast lines Serial Number 28163001 – UP
6125-100 Two stage mast lines Serial Number 25268000 – 28163000
6125-101 Two stage mast lines Serial Number 28163001 – UP
6125-200 Two stage mast lines Serial Number 25268000 -28163000
6125-201 Two stage mast lines Serial Number 28163001 – UP
6125-300 Two stage mast lines
6125-400 Two stage full freelift lines
6125-500 Three stage mast lines
6160-000 Control valve (One spool control valve)
6160-100 Control valve (Two spool control valve)
6170-000 Pressure / flow control valve
6220-000 Control valve (Manifold assembly)
6610-000 Two stage mast lift cylinder Serial number 25268000 – 28163000
6610-001 Two stage mast lift cylinder Serial Number 28163001 – UP
6610-100 Two stage mast lift cylinder
6610-200 Two stage full freelift staging cylinder
6610-300 Three stage mast staging cylinder
6620-200 Two stage full freelift, freelift cylinder
6620-300 Three stage mast freelift cylinder
7000 Operating Function – Lifting Device
7105-000 Mast pivot
7110-000 Two stage mast Serial Number 25268000 – 28163000
7110-001 Two stage mast Serial Number 28163001 – UP
7110-100 Two stage mast
7110-200 Two stage full freelift mast
7110-300 Three stage mast
7170-000 Two stage mast lifting gear
7170-100 Two stage full freelift mast liftting gear
7170-200 Two / three stage mast lifting gear
7210-000 Sideshifter assembly Serial Number 25268000 – 28077001
7210-001 Sideshifter assembly Serial Number 28077002 – UP
7320-000 Tilt cylinder
7410-000 Fork assembly
7420-000 Two stage mast fork carriage unit
7420-100 Two stage mast fork carriage unit
7420-200 Two stage full freelift mast fork carriage unit
7420-300 Three stage mast fork carriage unit
8000 Peripheral / Installation Equipment
9000 Options / Attachments
9100-000 Attachments (Supply line to mast)
9100-100 Attachments (Two stage mast lines)
9100-300 Attachments (Three stage mast lines)
9370-000 Warning lights / alarm
9390-000 Positioning equipment
9500-000 Load backrest
9660-000 Electrical heater
10000 Tools
10010-000 Electrical controllers (Handset)
10020-000 Special tools and lubrications
11000 Numerical Index
CSX Electical Truck Numerical Index
Back Cover
