Case 580 Super R, 580 Super R Plus 590 Super R, 695 Super R Series 3 Backhoe Loaders Parts Catalog (87725940)

These 580/590/695 Super R backhoes usually live in mud, demolition rubble, and roadworks, so the undercarriage and running gear take a beating. This parts catalog helps you identify every component in the undercarriage assemblies, from big structural pieces down to the shims and seals that are easy to miss. If you’ve got a machine coming in with a loose final drive or a damaged axle support, this is what you use at the bench to match what’s in front of you to the correct Case part numbers before you order.

Applications & Use Cases

• Trace how undercarriage components fit together so you don’t miss spacers, clips, or hardware during a rebuild.
• Cross-check different Super R model variants to confirm you’re ordering the right version of a bracket, hub, or carrier.

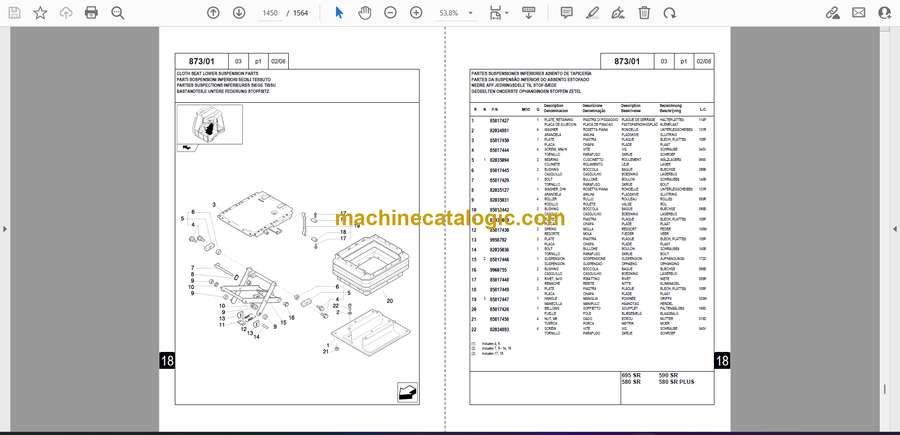

• Use the exploded views to isolate worn bushings and bearings instead of guessing from memory.
• Verify which seals, O-rings, and fasteners are tied to a specific housing or sub-assembly.
• Print or mark up pages at the parts counter to avoid mis-orders when multiple revisions exist for the same area.

FAQ

Q: Can I use this catalog on a tablet in the field?

A: Yes, it works well on a tablet; you can zoom in on the exploded views to match parts directly on the machine.

Q: Is this useful if I’m only doing partial repairs, not full rebuilds?

A: Definitely; it lets you order just the individual components you’re touching, without buying the wrong assemblies.

Safety Note

Always confirm part numbers against the machine’s ID plate and follow the manufacturer’s safety procedures before disassembly.

Case 580 Super R, 580 Super R Plus 590 Super R, 695 Super R Series 3 Backhoe Loaders Index:

UNDERCARRIAGE COMPONENTS
FRAME AND MOUNTINGS
AXLE ARRANGEMENTS
STRUCTURAL SUPPORTS
TIRE & WHEEL SYSTEM
DRIVE SHAFTS
FLUID TANKS & RESERVOIRS
ROTARY CONNECTIONS
BALANCE WEIGHTS
POWER UNIT
FUEL DELIVERY SYSTEM
ENGINE COOLING GROUP
TRAVEL DRIVE / SWING GEAR
COUPLING DEVICES
STEERING MECHANISM
BRAKING EQUIPMENT
HYDRAULIC SYSTEM GROUP
PUMPS AND DRIVE MOTORS
VALVE ASSEMBLIES
ACTUATOR CYLINDERS
CAB HEATING & AIR CONDITION
CENTRAL LUBRICATION
ELECTRICAL PARTS & ACCESSORIES
WIRING & ELECTRICAL SYSTEM
SLIPRING DEVICE
CAB STRUCTURE MODULE
SAFETY FEATURES
PANELS AND HOUSINGS
CAB PROTECTIVE GRIDS
CLIMATE PACKAGE
BOOM UNIT
WORKING ARM / STICK
ENGINE SUBASSEMBLIES
