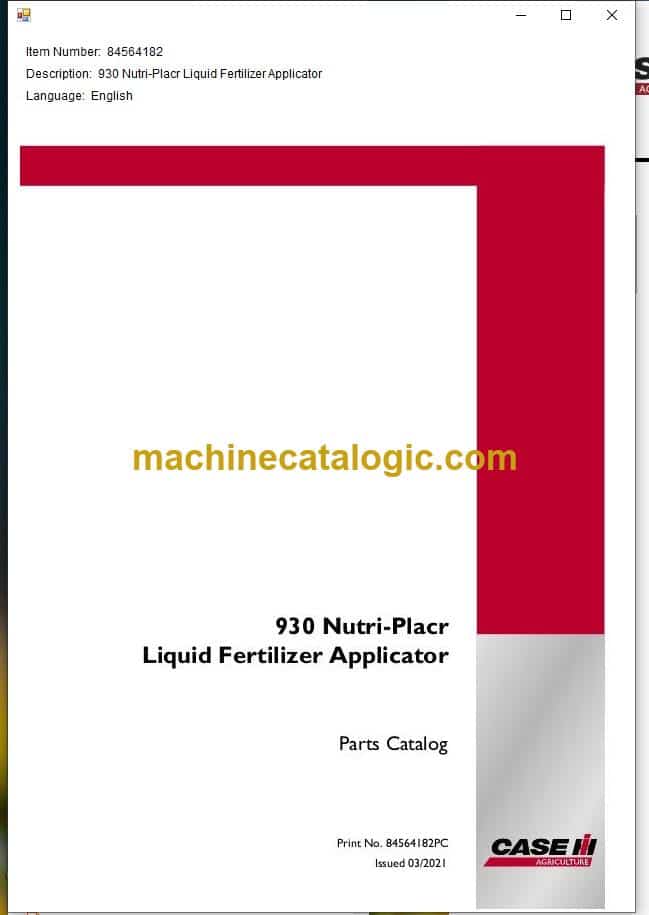

Case 930 Nutri-Place Liquid Fertilizer Applicator Parts Manual Index:

00.000.01 PICTORAL INDEX
05.100.03 01 FILTERS & CAPACITIES, NUTRI-PLACER 930 (20 – 47 FOOT)

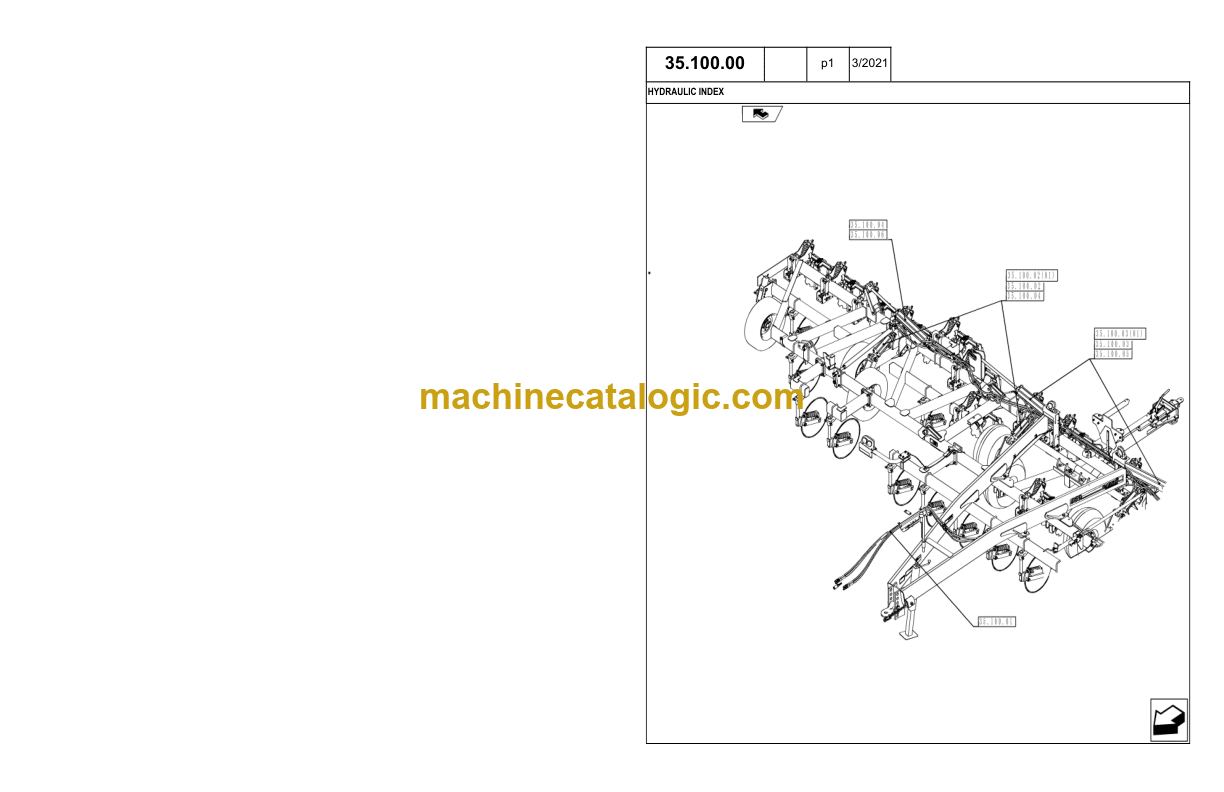

35.100.00 HYDRAULIC INDEX
35.100.01 MAIN/PULL FRAME HYDRAULICS 27′ – 47′ MODELS
35.100.02 FRAME LIFT HYDRAULICS 47′ MODEL
35.100.02 01 FRAME LIFT HYDRAULICS 27′-42′ MODELS
35.100.03 WING FOLD HYDRAULICS 42′ – 47″ MODEL
35.100.03 01 WING FOLD HYDRAULICS 27′ – 37′
35.100.04 FRAME LIFT CYLINDERS
35.100.05 WING FOLD CYLINDER INNER 27′ – 47′ MODELS
35.100.06 WING FOLD CYLINDER OUTER 42′ – 47′ MODELS
35.100.09 FLOW DIVIDER VALVE & MOUNT
39.100.00 FRAME INDEX
39.100.01 PULL FRAME
39.100.02 MAIN FRAME
39.100.03 INNER WING 42′ – 47′
39.100.04 OUTER WING 42′ – 47′
39.100.05 WING FRAME 27′ – 37′
39.100.06 REAR HITCH FRAME
39.100.07 REAR HITCH
39.100.08 SPDC
39.100.09 LIFT LEVEL ASSEMBLY
39.100.10 EXTENSION TUBES
44.100.00 AXLE AND WHEEL INDEX
44.100.01 42′-47′ MAIN FRAME TANDEM
44.100.02 42′-47′ MAIN FRAME TANDEM HUB ASSEMBLY
44.100.03 42′-47′ WING TANDEM
44.100.04 42′-47′ WING TANDEM HUB ASSEMBLY
44.100.05 47′ GAUGE WHEEL ASSEMBLY
44.100.06 27′-42′ MAIN FRAME SINGLE HUB ASSEMBLY
44.100.07 42′ WING SINGLE HUB ASSEMBLY
44.100.08 27′-37′ MAIN FRAME TANDEM
44.100.09 27′-37′ MAIN FRAME TANDEM HUB ASSEMBLY
44.100.10 27′-37′ WING TANDEM
44.100.11 27′-37′ WING TANDEM HUB ASSEMBLY
44.100.12 27′-37′ WING SINGLE HUB ASSEMBLY
55.404.01 ELECTRICAL LIGHTING / BRACKETS
55.404.01 ELECTRICAL LIGHTING / BRACKETS
75.200.00 SOIL PREP INDEX
75.200.01 HCS SHANKS
75.200.02 HCS MOUNT, 4 X 6
75.200.02 SPRING COULTER-SHANK ASSEMBLY
75.200.02 01 HCS SHANK
75.200.02 01 SPRING CLTR-SHNK ASS HUB/SPINDLE
75.200.03 18″ SPRING SEALER SOLID/NOTCHED ASSEMBLY
75.200.04 INDIVIDUAL COULTER ASSEMBLY
75.200.05 14″ SPRING DISK ASSEMBLY
75.200.06 HD SPRING SHANK ASSEMBLY
75.200.07 RIGID MOUNT WITH 1 X 2 SHANK
75.200.08 KIT COULTER KNIFE
75.200.09 01 HSLD ASSEMBLY
75.200.09 02 HSLD ASSEMBLY
88.100.01 GROUND DRIVE PACKAGE
88.100.02 KNIFE TIP
88.100.03 EXTENSION BARS
88.100.03 NH3 DUAL KIT, 3/8″
88.100.04 COULTER ASSEMBLY LIQUID 20″
88.100.04 NH3 DUAL KIT W/ VAPOR
88.100.05 INJECTOR NOZZLE KIT
88.100.05 NH3 VAPOR ONLY KIT
88.100.06 COULTER KNIFE KIT
88.100.06 NH3 1/2 KIT
88.100.07 AA ROUTING MOUNTS
88.100.07 NH3 1/2 DUAL KIT
88.100.08 28″ WING EXTENSION
88.100.08 DRY FERTILIZER TUBE KIT
88.100.09 WORKLIGHT KIT
88.100.63 ORIFICE & SPRAY NOZZLES
90.100.01 DECALS
