Case DCX131 Disk Mower Conditioner Index:

ZZZ
RECOMMENDED PARTS STOCK LIST – FOR 5 MACHINES
01.01
PRIMARY PTO, FRONT HALF, NOT FOR SWIVEL HITCH
01.02
PRIMARY PTO, REAR HALF, NOT FOR SWIVEL HITCH
01.03
1
SWIVEL TONGUE DRIVE SHAFT
01.03
2
SECONDARY PTO, FRONT, SWIVEL
01.04
SECONDARY PTO W/ CLAMP & HUB ON CLUTCH
01.05
SWIVEL TONGUE PTO, 2 POINT
01.05
1
SWIVEL TONGUE PTO, DRAWBAR
01.06
COMPACT CLUTCH W/CLAMP & HUB
03.01
GEARBOX, SWIVEL
03.02
GEARBOX, PIVOT
03.03
GEARBOX, CONDITIONER
03.04
GEARBOX, BEVEL
03.04/01
GEARBOW, BEVEL, FLAIL
06.01
AMBER LIGHTS & RED TAIL LIGHTS

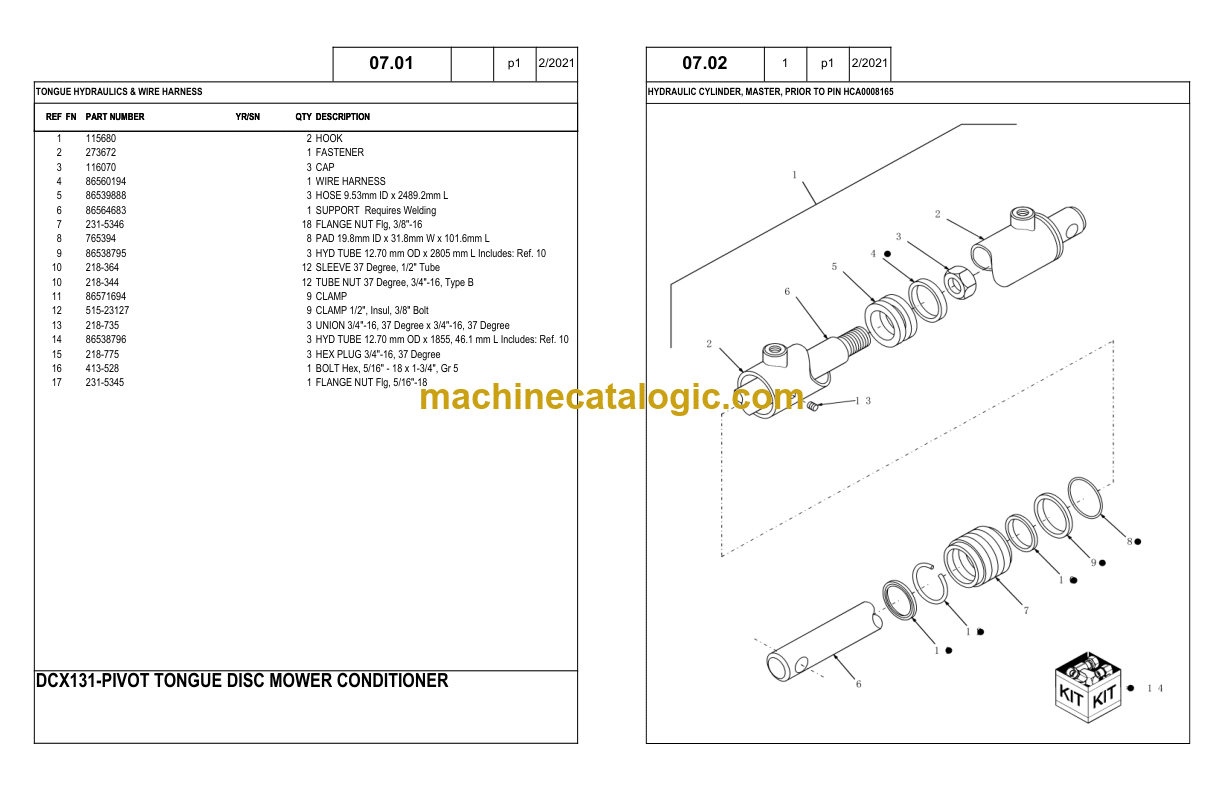

07.01/01
TONGUE HYDRAULICS & WIRE HARNESS
07.01
TONGUE HYDRAULICS & WIRE HARNESS
07.02
1
HYDRAULIC CYLINDER, MASTER, PRIOR TO PIN HCA0008165
07.02
2
HYDRAULIC CYLINDER, MASTER, MONARCH, AFTER PIN HCA0008165
07.03
1
HYDRAULIC CYLINDER, SLAVE, PRIOR TO PIN HCA0008152
07.03
2
HYDRAULIC CYLINDER, SLAVE, MONARCH, AFTER PIN HCA0008152
07.04
1
HYDRAULIC CYLINDER, TILT, PRIOR TO PIN HCA0008152
07.04
2
HYDRAULIC CYLINDER, TILT, MONARCH, AFTER PIN HCA0008152
07.05
HYDRAULIC CYLINDER, SWING
08.01
SHIELDING, LEFT SIDE
08.01/01
SHIELDING, LEFT SIDE
08.02
SHIELDING, RIGHT SIDE
08.02/01
SHIELDING, RIGHT SIDE
08.03
SHIELDING, TOP
08.04
SKIRTS, FRONT
08.05
SWATHGATE
08.05/01
SWATHGATE
08.06
DECALS, STANDARD & SWIVEL TONGUE MODELS
08.07
SHIELDING, CENTER
08.08
SKIRT, REAR
11.01
HUB, SPINDLE & TIRES
12.01
HITCH EXTENSION & SAFETY CHAIN
12.01
1
DRAWBAR, SWIVEL HITCH & SAFETY CHAIN
12.02
NON-TRACTOR TOW BAR
12.03
DRAWBAR, SWIVEL HITCH, JACK, & TOOL BOX
12.03
1
STANDARD TONGUE, FRONT
12.03
2
JACK COMPONENTS
12.04
STANDARD TONGUE, REAR
12.04/01
LATCH
12.05
SWIVEL HITCH TONGUE
12.06
2 POINT SWIVEL HITCH
12.07
TRAIL FRAME, RIGHT SIDE
12.08
TRAIL FRAME, LEFT SIDE
12.09
TRAIL FRAME, REAR
14.01
HEADER DRIVE, LEFT SIDE
14.01/01
HEADER DRIVE, LEFT SIDE
14.02
HEADER DRIVE, RIGHT SIDE
14.02/01
HEADER DRIVE, RIGHT SIDE
14.03
HEADER DRIVE, CENTER
14.04
ROLLS CUTTERBAR
14.04
01 KIT KNIFE 7 W/LIFTERS
14.04
02 LIT KNIFE DISC MOWER W/HWD 140S CW
14.04/01
FLAIL CUTTERBAR

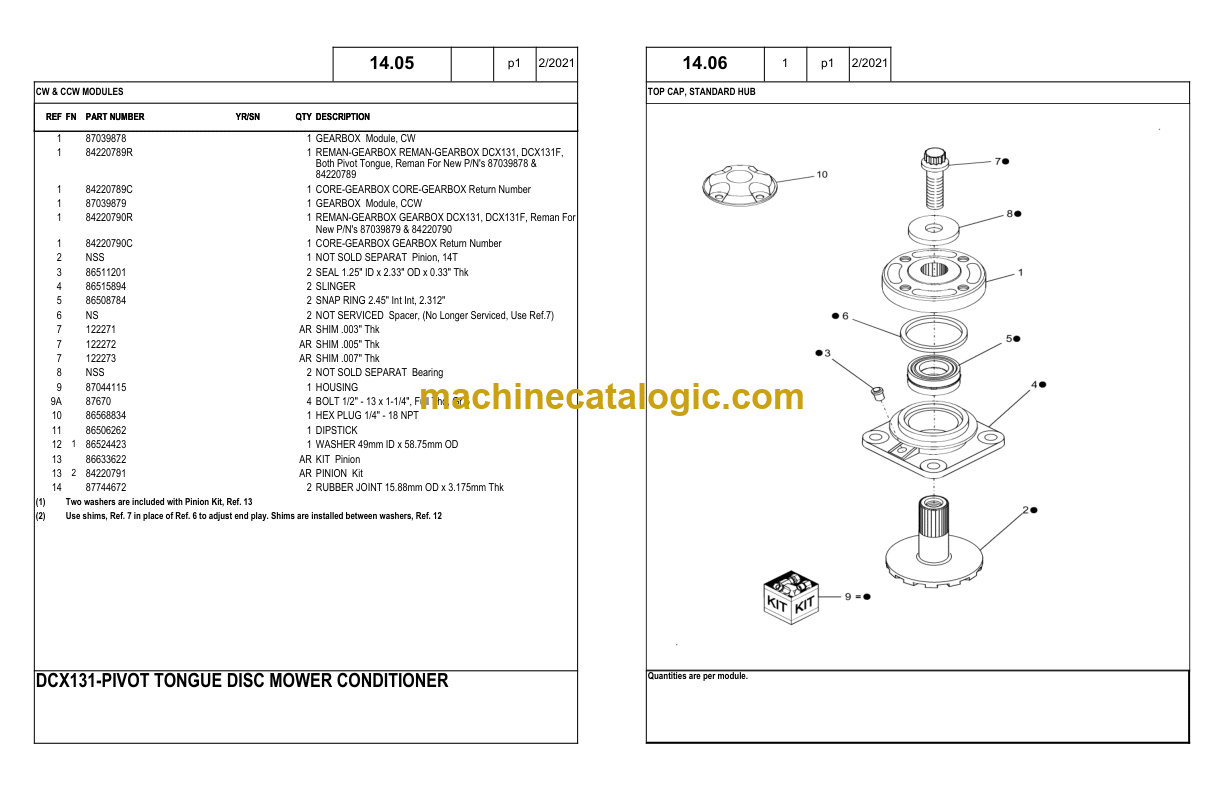

14.05
CW & CCW MODULES
14.06
1
TOP CAP, STANDARD HUB
14.06
2
TOP CAP, SHOCK HUB
14.07
DRIVE SHAFT, CUTTERBAR
14.08
HEADER SPRINGS
14.08/01
HEADER SPRINGS
14.09
KIT DISC COMPLETE W/LIFTER CW7
14.10
01 KIT DISC COMPLETE W/LIFTERS 14CW
14.10
02 KIT DISC COMPLETE W/LIFTERS 14CCW
14.10
03 KIT KNIFE DISC MOWER W/HWD 14 TWIST CW
14.10
04 KIT KNIFE DISC MOWER W/HARDWARE 14 TWIST CCW
14.11
KIT DISC COMPLETE W/LIFTERS 140SCW
14.12
KIT KNIFE DISC MOWER W/HARDWARE 7 TWIST CW
14.12
01 KIT KNIFE DISC MOWER W/HARDWARE 7 TWIST CCW
14.13
01 KIT KNIFE BLADE W/LIFTERS
14.14
01 KIT DISC COMPLETE CCW140S
14.15
KIT KNIFE 14
14.16
KIT KNIFE 7
14.17
KIT KNIFE BLADE DISC MOWER W/ HARDWARE WITH LIFTERS
14.18
KIT SKIDSHOE DISCMOWER 8PK W/HARDWARE
15.01
CONDITIONER ROLLS, DRIVE SHAFTS, TIMED
15.02
CONDITIONER ROLLS
15.02
01 CHEVRON CONDITIONING ROLLS
15.02/01
HEADER AND ROTOR MOUNTING
15.02/02
ROTOR, CAST FLAILS
15.03
ROLL TENSION
15.04
HOOD, ROTOR
15.05
DRIVE SHAFT, ROTOR
15.06
KIT BEARING
18.02
TIRE BUMPER EXTENSION KIT
18.03
ROLLING CROP DIVIDER
18.04
CROP DIVIDER KIT
18.05
CORNER MARKER KIT
18.06
CANE PADDLE KIT
18.07
ROLL DEFLECTOR KIT
18.08
KIT TALL DRUM
18.09
02 KIT SKID SHOE DISC MOWER 5 PACK W/HARDWARE
18.09
04 KIT SKIDSHOE DISCMOWER 6PK W/HARDWARE
