Case Magnum 235, 260, 290, 315, 340, 370 Tier 2, Tier 4A Series Tractor CVT Parts Catalog

These Magnum CVT tractors spend their lives on big acreage work—heavy tillage, planting, hauling grain carts—often in dusty, rough conditions. This parts catalog is what I’d keep open when I’m trying to identify exactly which CVT and chassis parts belong on your specific tractor, especially with both Tier 2 and Tier 4A variants in the mix. If you come in with a complaint like “tractor surges under load” and we find wear in the CVT control linkage, I use this book to trace the exploded view, confirm every bushing and seal in that sub-assembly, and make sure we order the right revision the first time.

Applications & Use Cases

• Cross-check CVT components between 235–370 models to verify which parts actually interchange.
• Use exploded views to trace sub-assemblies and catch small seals, shims, and fasteners that often get missed.
• Confirm part numbers when updating older Tier 2 machines to later-spec components where allowed.
• Verify differences between similar options (axles, PTO, hydraulics) before placing an order.
• Print specific pages to tag parts on the bench during teardown and reassembly.

FAQ

Q: Can I use this catalog on a tablet in the field?

A: Yes, it’s handy on a tablet for zooming into exploded views and checking part numbers right next to the machine.

Q: Is this useful if I’m only ordering a few seals or bearings?

A: Very—those small items are easy to miss, and the breakdowns help you identify every O-ring, seal, and spacer in the stack.

Safety Note

Always verify parts with the serial number and lock out the tractor before inspecting or matching components.

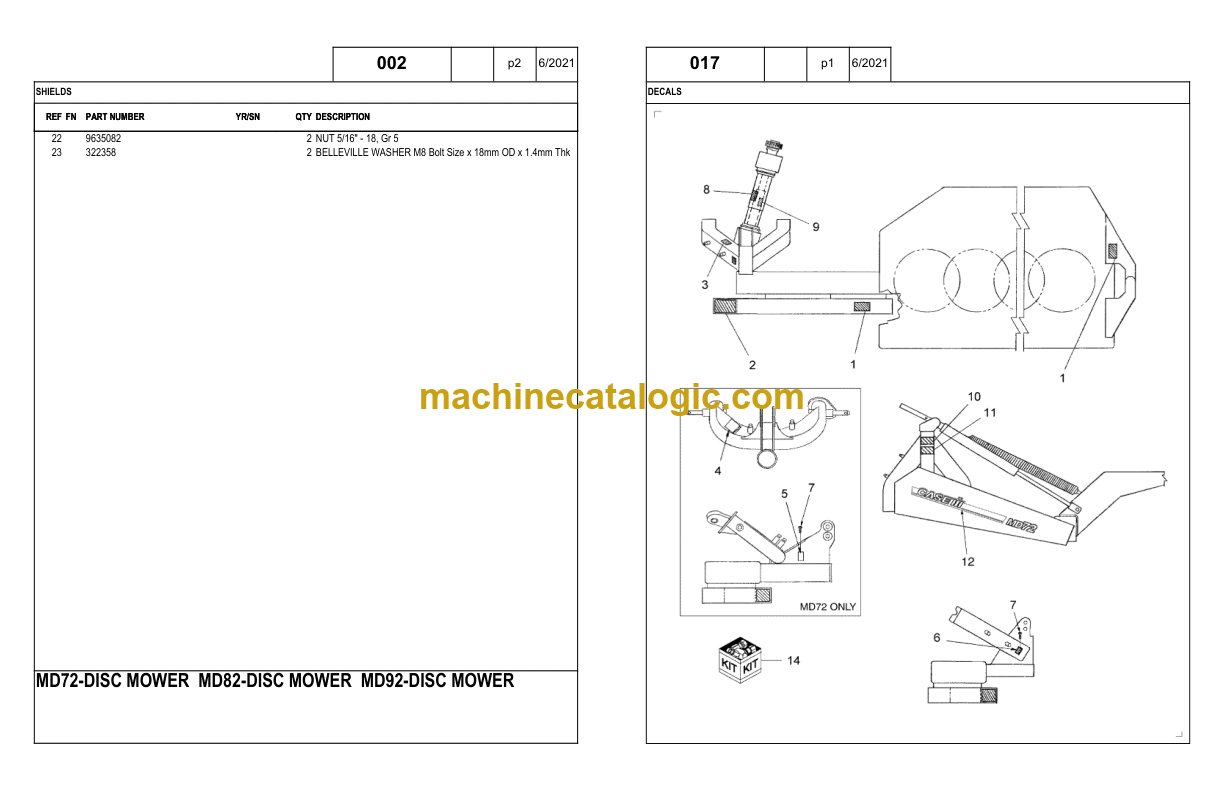

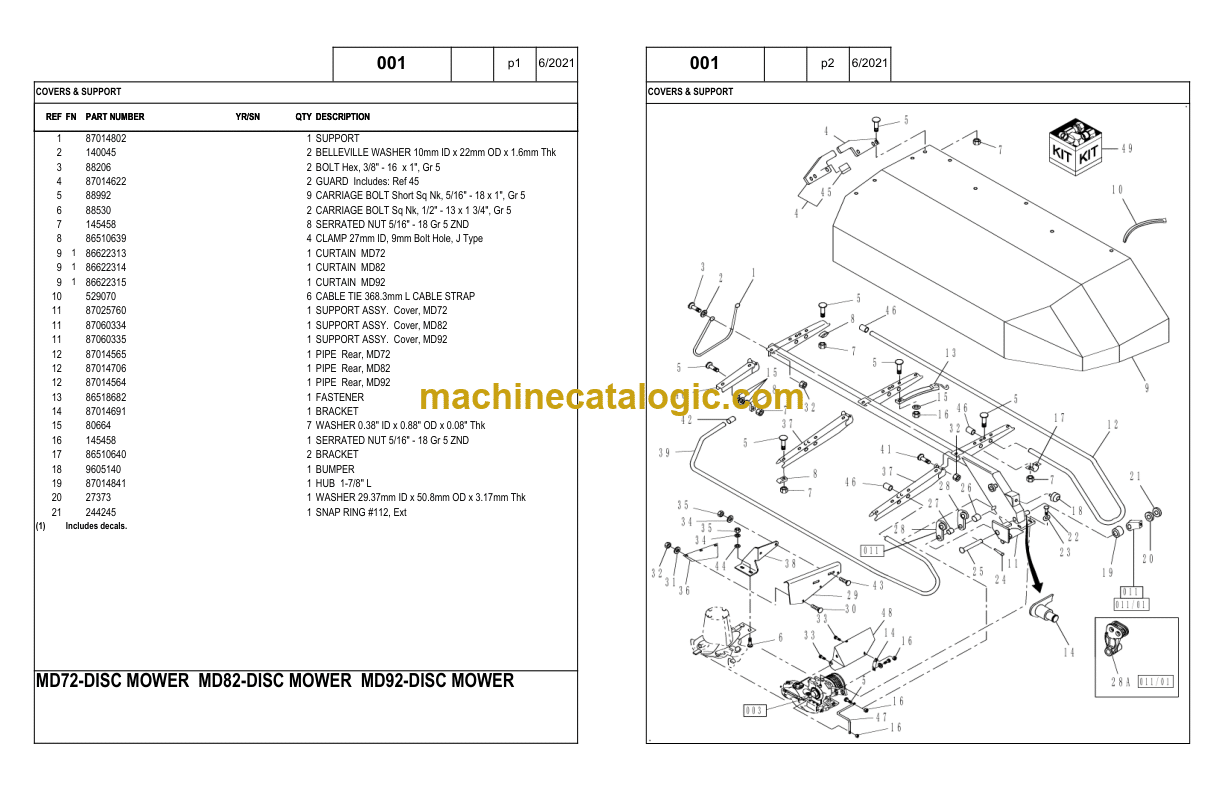

Case MD72, MD82, MD92 Disc Mower Parts Manual Index:

018 RECOMMENDED PARTS STOCK LIST – FOR 5 MACHINES
015 PTO, MD72
015/01
PTO, MD82 & MD92
014 CYLINDER COMPONENTS
003 CUTTERBAR
004 CW & CCW MODULE
005 MODULE, SPECIAL
006 1
TOP CAP, STANDARD HUB
006 2
TOP CAP, SHOCK HUB
007 SKID SHOE, MODULE & GEARBOX MOUNT
008 GEARBOX ASN YFN146308
008 GEARBOX BSN YFN146307
010 FRAME, LIFT ARM
010 2
SPRING, MD92
011 FRAME, MAIN, MD72
011/01
FRAME, MAIN, MD82 & MD92
012 BELT PIVOT
013 BREAKAWAY
020 KIT DISC COMPLETE W/LIFTER CW7
021 KIT KNIFE DISC MOWER W/HWD 140S CW
022 KIT DISC COMPLETE W/LIFTER 14CCW
023 01 KIT DISC COMPLETE W/LIFTER 14CW
024 01 KIT DISC COMPLETE W/LIFTERS 140SCW
025 02 KIT DISC COMPLETE CCW140S
026 02 KIT SKID SHOE DISC MOWER 5 PACK W/HARDWARE
026 03 KIT DISC COMPLETE CCW7
026 04 KIT DISC COMPLETE CW7
026 05 KIT DISC COMPLETE CW14
026 06 KIT SKIDSHOE DISCMOWER 8PK W/HARDWARE
016 LH WINDROW KIT
019 01 KIT, SWATHBOARD, DEFLECTOR RH
027 KIT, SWATHBOARD, DEFLECTOR LH
028 KIT DMC HIGH STUBBLE
029 KIT, HUB SHOCK REPAIR KIT
030 KIT, LIGHT TRAIL MOWER
001 COVERS & SUPPORT
002 SHIELDS
017 DECALS
