Case Optum 270 CVX AFS Connect Tractor Service Manual (92303675) (September 2024)

Out in the field this Optum’s usually on heavy tillage, big planters, grain carts, maybe a mower or baler, running long days in dust, mud, and cold starts. This service manual’s about how to trace faults properly so you’re not just throwing sensors and valves at it. Say the tractor drops power under load: instead of guessing turbo, fuel, or transmission, you’ll follow a test path, verify pressures and signals, and isolate if it’s actually the engine, the CVX, or an electronic control issue before you spend a dime on parts.

Applications & Use Cases

• Work through step‑by‑step diagnostics to trace a fault from a dash code to the exact harness, connector, or component that’s actually bad.
• Check and verify hydraulic or transmission complaints by following the given test sequence, so you don’t misread a symptom and split the tractor for nothing.
• Isolate electrical issues by learning where to probe, how to route temporary jumpers, and when a sensor’s lying versus when the wiring’s at fault.
• Inspect and align linkages, axles, and driveline components using the manual’s procedures so things go back straight and stay quiet.
• Bleed fuel, brakes, and hydraulics the way Case expects, which usually saves you from chasing phantom air problems later.

FAQ

Q: Is this a PDF I can search on my laptop or tablet?

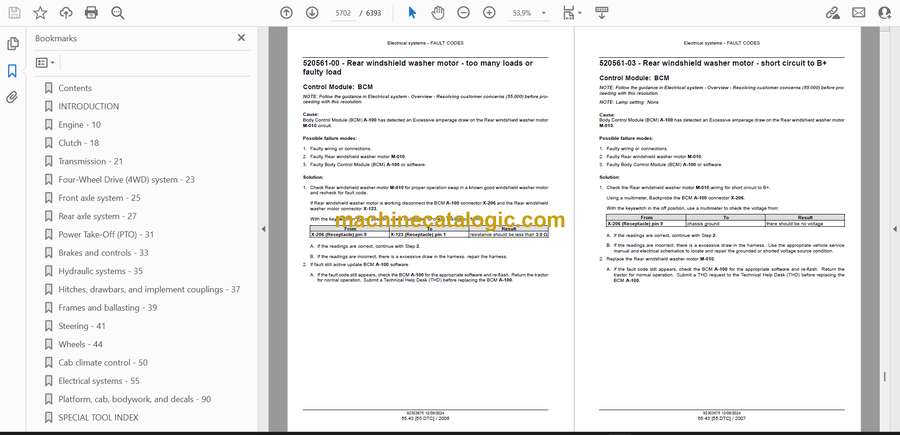

A: Yes, it’s typically delivered as a searchable PDF, so you can jump to systems or keywords instead of flipping pages forever.

Q: Can I print just the sections I need for the shop?

A: You usually can; most folks print the jobs they’re doing that day so they can mark notes and not risk a tablet in the oil pan.

Safety Note

Always support the tractor properly with rated stands before you crawl under to test, inspect, or remove any drivetrain or axle components.

Case Optum 270 CVX AFS Connect Tractor Index:

• Contents
• INTRODUCTION
• Engine – 10
• Clutch – 18
• Transmission – 21
• Four-Wheel Drive (4WD) system – 23
• Front axle system – 25
• Rear axle system – 27
• Power Take-Off (PTO) – 31
• Brakes and controls – 33
• Hydraulic systems – 35
• Hitches, drawbars, and implement couplings – 37
• Frames and ballasting – 39
• Steering – 41
• Wheels – 44
• Cab climate control – 50
• Electrical systems – 55
• Platform, cab, bodywork, and decals – 90
• SPECIAL TOOL INDEX
