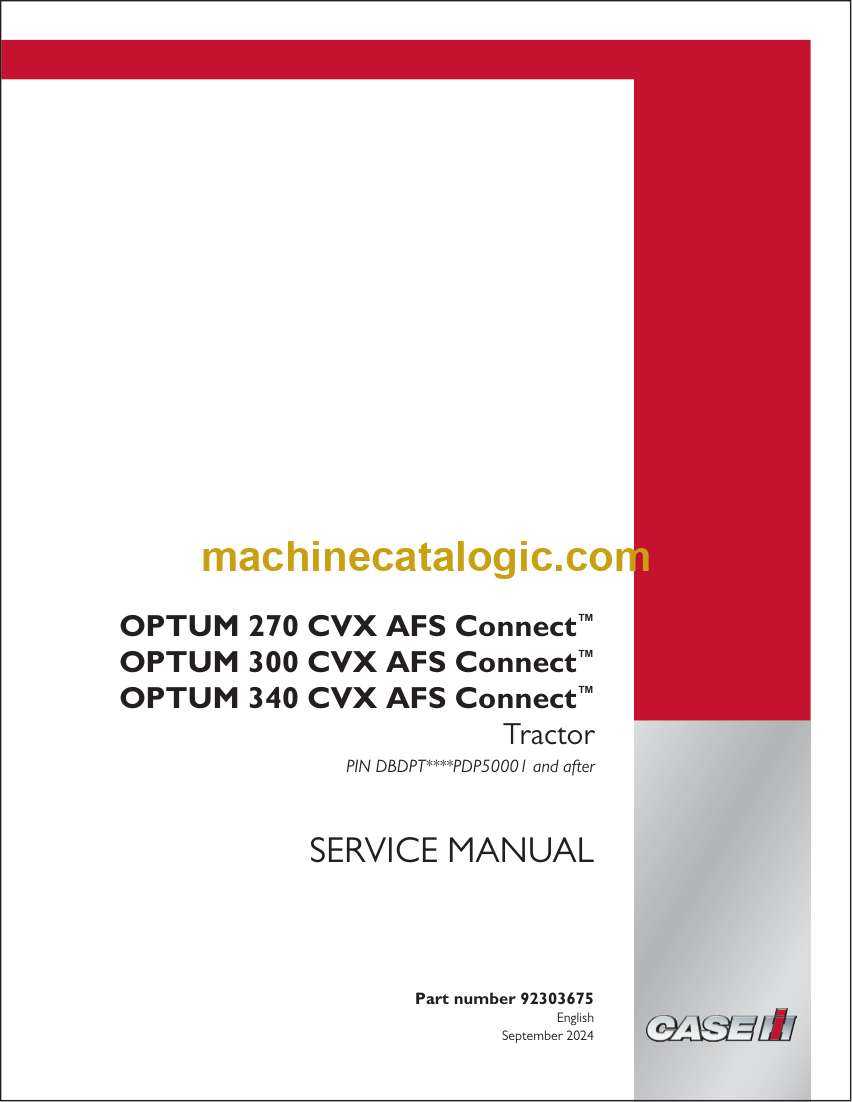

Case Optum 300 CVX AFS Connect Tractor Service Manual (92303675) (September 2024)

Out in the field this Optum 300 CVX is usually pulling big tillage gear, running carts, or on the road hauling grain, often in dust, mud, and lousy weather. This service manual helps you trace faults step by step, so you can tell if you’ve actually got a failed part or just a bad sensor, loose connector, or software setting. Say the tractor won’t move right in road gear—you’d follow the transmission and CVX checks in order, test pressures or signals where it tells you, and verify what’s wrong before you order anything pricey.

Applications & Use Cases

• Track an electrical fault by routing through the exact test sequence instead of guessing which harness or controller is bad.
• Check hydraulic issues by isolating circuits, then bleeding and testing one section at a time so you don’t tear into the whole system.
• Verify transmission and CVX problems with guided checks that keep you from swapping valves or modules that are actually fine.
• Inspect steering, 4WD, and brakes using the manual’s alignment and adjustment procedures to cure pulls, wander, or uneven wear.
• Use it to plan jobs: you’ll see what must come off first so you don’t backtrack and do the same teardown twice.

FAQ

Q: Is this a PDF I can search on my laptop or phone?

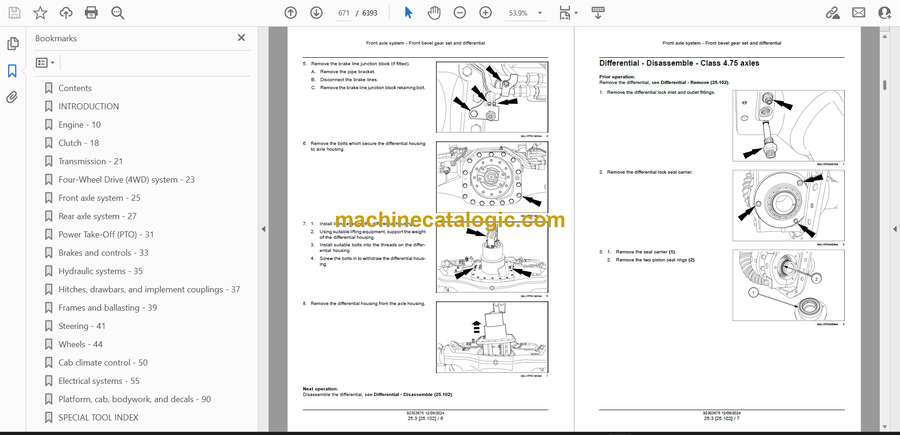

A: It’s typically a searchable PDF; you can jump to sections, use keywords, and zoom wiring diagrams without scrolling forever.

Q: Can I print just a few pages to take to the tractor?

A: Yes, most folks print the procedures and schematics they need for that repair, stick them in a sleeve, and don’t risk a tablet in the mud.

Safety Note

Always depressurize hydraulics and verify everything’s blocked and supported before you crawl under or crack any lines.

Case Optum 300 CVX AFS Connect Tractor Index:

• Contents
• INTRODUCTION
• Engine – 10
• Clutch – 18
• Transmission – 21
• Four-Wheel Drive (4WD) system – 23
• Front axle system – 25
• Rear axle system – 27
• Power Take-Off (PTO) – 31
• Brakes and controls – 33
• Hydraulic systems – 35
• Hitches, drawbars, and implement couplings – 37
• Frames and ballasting – 39
• Steering – 41
• Wheels – 44
• Cab climate control – 50
• Electrical systems – 55
• Platform, cab, bodywork, and decals – 90
• SPECIAL TOOL INDEX
