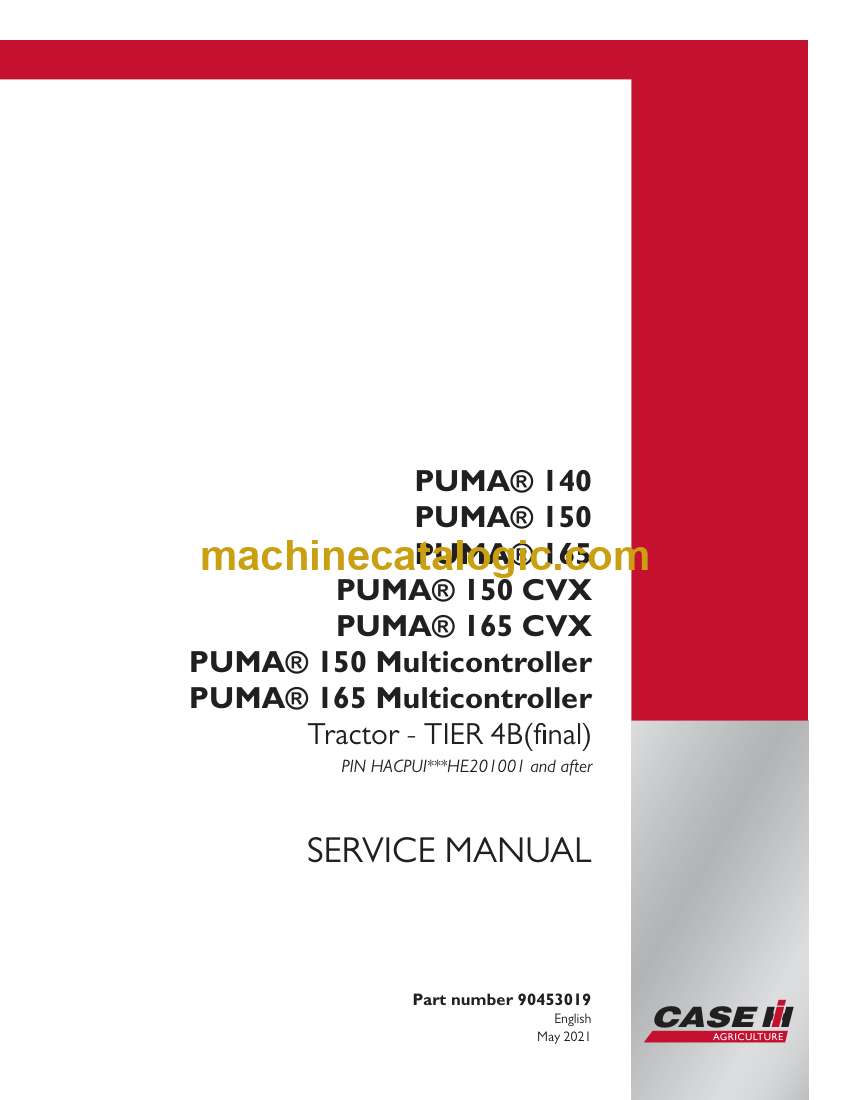

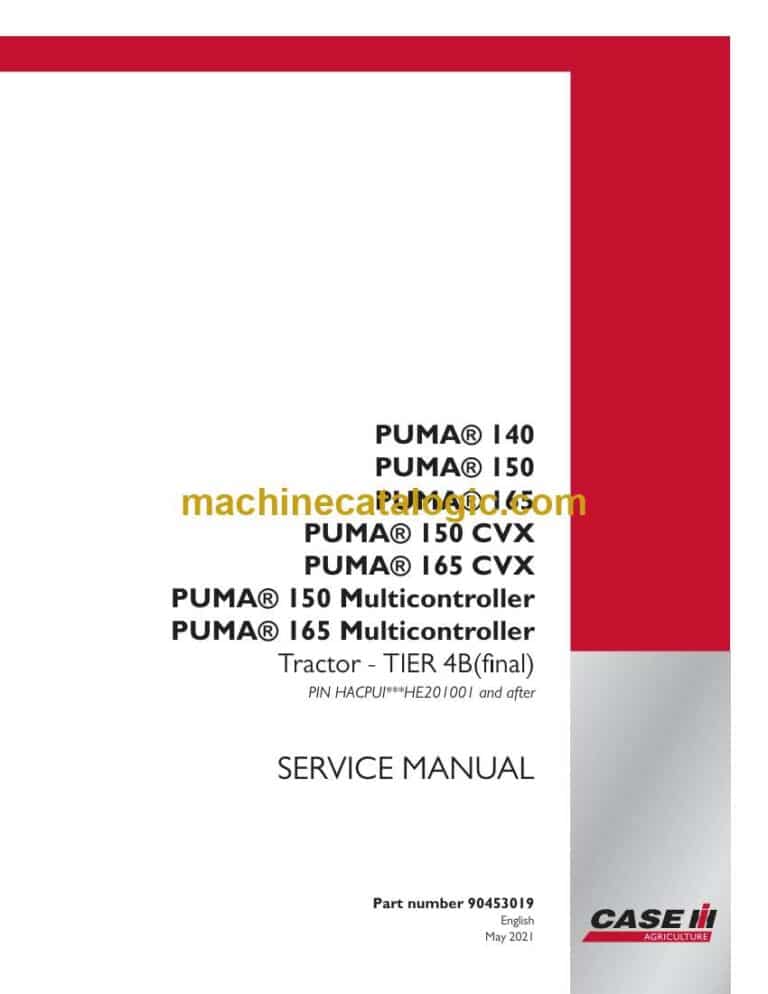

Case Puma 140 Tier 4B Final Tractor Service Manual (90453019) (May 2021)

Out in the field, this Puma 140 is usually on tillage, planting, hauling wagons, maybe a loader on the front, working dust, mud, and cold starts. This service manual’s about walking you through how to trace and isolate problems so you’re not just throwing parts at it. Say the tractor won’t pull right under load: you’d follow a sequence to check hydraulic pressure, verify transmission signals, and test sensors before you ever order a valve or controller.

Applications & Use Cases

• Track down an intermittent no-start by tracing power and ground, checking relays, and verifying the ECU’s actually getting what it needs.
• Diagnose hydraulic lift issues by routing through the step-by-step tests, so you can tell if it’s a cylinder, a valve, or a control problem.
• Inspect and align driveline components after a clutch or transmission repair so you don’t end up with vibration or premature wear.
• Bleed fuel or brake systems the way the factory expects, using the right sequence so you don’t trap air and have to redo it.
• Isolate electrical faults in lights or controls by following the wiring diagrams and test procedures instead of guessing.

FAQ

Q: Is this a PDF I can search on my laptop or phone?

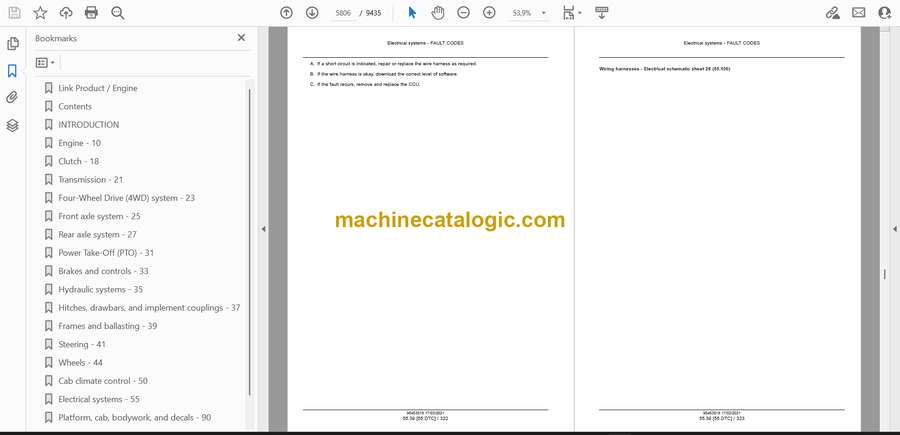

A: It’s typically a searchable PDF, so you can jump to sections, use keywords, and zoom wiring diagrams on-screen.

Q: Can I print just a few pages to take to the tractor?

A: Yeah, you can usually print the sections you need, grease them up in the shop, and keep the full manual clean on your computer.

Safety Note

Always verify the machine’s properly supported and hydraulics are de-energized before you inspect or work under any raised implement or chassis.

Case Puma 140 Tier 4B Final Tractor Index:

• Link Product / Engine
• Contents
• INTRODUCTION
• Engine – 10
• Clutch – 18
• Transmission – 21
• Four-Wheel Drive (4WD) system – 23
• Front axle system – 25
• Rear axle system – 27
• Power Take-Off (PTO) – 31
• Brakes and controls – 33
• Hydraulic systems – 35
• Hitches, drawbars, and implement couplings – 37
• Frames and ballasting – 39
• Steering – 41
• Wheels – 44
• Cab climate control – 50
• Electrical systems – 55
• Platform, cab, bodywork, and decals – 90
• SPECIAL TOOL INDEX
