Case RDX161 Disc Header Parts Manual Index:

ZZZ
DEALER PARTS STOCK ORDER QTY FOR 5 UNITS
005 BELT DRIVE
006 1
GEARBOX, BELT DRIVE, PRIOR TO PIN HCA0016065
006 2
GEARBOX, BELT DRIVE, AFTER PIN HCA0016065

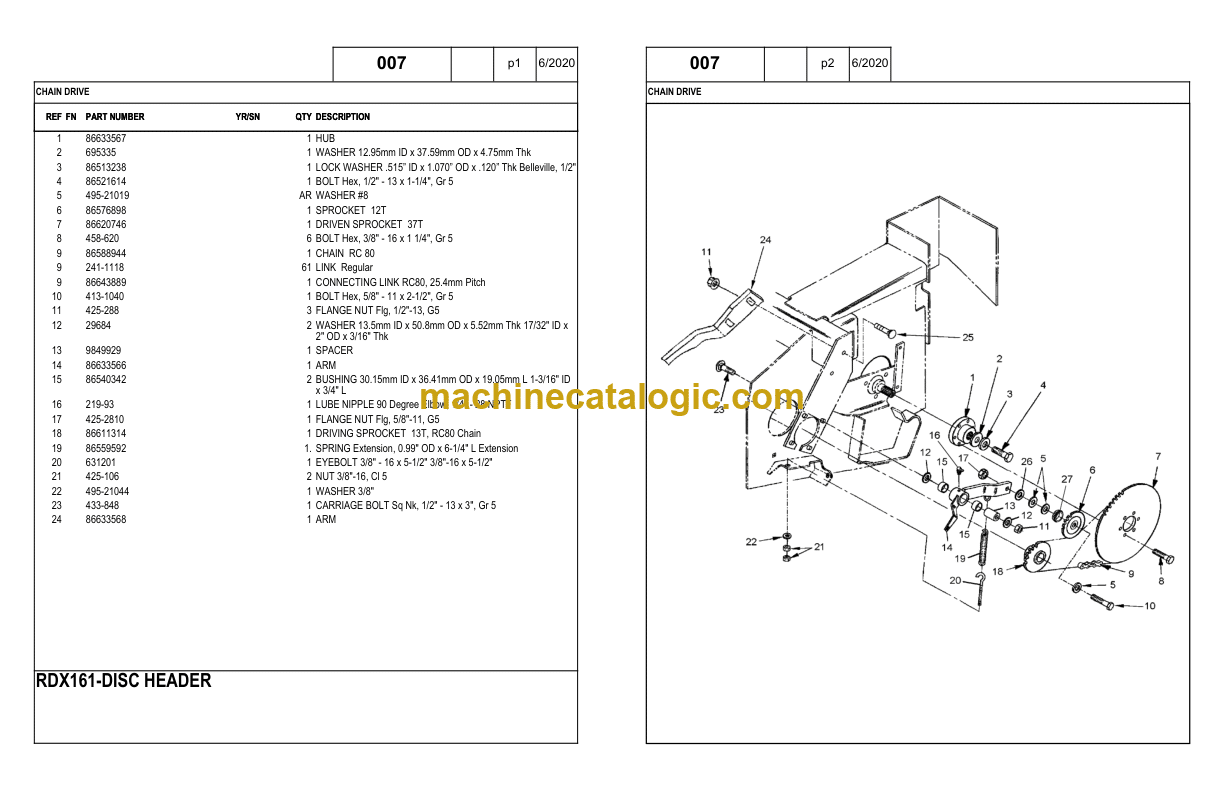

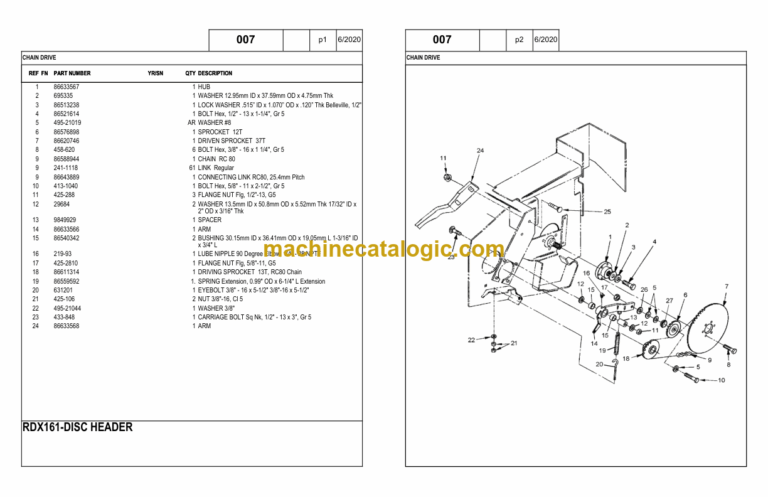

007 CHAIN DRIVE
008 CONDITIONER DRIVE SHAFTS
009 CONDITIONER GEARBOX
010 CONDITIONER GEARBOX MOUNTING
017 HYDRAULICS, HEADER
018 HYDRAULIC MOTOR
023 GAUGE WHEEL MOUNTING
024 GAUGE WHEEL
019 1
ELECTRICAL W/WDX1701
019 2
ELECTRICAL W/WDX1902 OR WDX2302
001 FLOOR, & HEADER CLOSURE KIT
002 1
CONDITIONING ROLLS, PRIOR TO 2/07
002 2
CONDITIONING ROLLS, FROM 2/07
002 3
CONDITIONING ROLLS, CHEVRON
003 1
CONDITIONING ROLL TENSION, PRIOR TO PIN HCA0016084
003 2
CONDITIONING ROLL TENSION, BTWN PIN HCA0016084 & 2/07
003 3
CONDITIONING ROLL TENSION, FROM 2/07
004 1
AUGER, PRIOR TO PIN HCA0016094
004 2
AUGER, FROM PIN HCA0016094
004 4
AUGER FIELD KIT, 6″ TUBE
004 5
AUGER, 6″ SERVICE TUBE
011 02 KIT KNIFE DISC MOWER W/HWD 140S CW
011 03 KIT KNIFE COMPLETE 140S
011 1
CUTTERBAR, 12 DISC, NON SHOCK HUBS
011 2
CUTTERBAR, 12 DISC, SHOCK HUBS, OPTION
011 3
KIT DISC COMPLETE W/LIFTER 14CW
011 4
KIT DISC COMPLETE W/LIFTER 14CCW
011 5
KIT KNIFE DISC MOWER W/HWD 14 TWIST CW
011 6
KIT KNIFE 14
011 7
KIT KNIFE DISC MOWER W/HWD 14 TWIST
012 1
CUTTERBAR DRIVE SHAFT, PRIOR TO PIN HCA0016065
012 2
CUTTERBAR DRIVE SHAFT, FROM PIN HCA0016065
012 3
KIT KNIFE BLADE
012 4
KIT KNIFE BLADE W/LIFTERS
012 5
KIT KNIFE 7
012 6
KIT DISC COMPLETE W/LIFTER 140SCW
012 7
KIT SKID SHOE DISC MOWER 5 PACK W/HARDWARE
012 8
KIT KNIFE DISC MOWER W/HARDWARE 14 TWIST CCW
012 9
KIT SKIDSHOE DISCMOWER 6PK W/HARDWARE
013 CW & CCW MODULE
013 1
TOP CAP, STANDARD HUB
013 2
TOP CAP, SHOCK HUB
014 01 KIT BEARING
021 HEADER ATTACHING & SPRINGS
025 PUSHBAR DIVIDER & ROLLING CROP DIVIDER
026 DMC DIVIDER KIT
027 CORNER MARKER KIT
031 KIT KNIFE DISC MOWER W/HARDWARE 7 TWIST CW
031 01 KIT KNIFE DISC MOWER W/HARDWARE 7 TWIST CCW
032 AA
KIT KNIFE W/14 LIFTERS
033 KIT CUTTER BAR BOLT BUSHING STARTING JULY1, 2009 SERIAL NUMBER Y9N083777
035 KIT KNIFE BLADE DISC MOWER W/ HARDWARE WITH LIFTERS
028 ADAPTER KIT, WDX1902 OR WDX2302
029 DIA., 60 IN. CLOSURE KIT – GRASS SEED
030 DIA., 83 IN. CLOSURE KIT – GRASS SEED
034 KIT KNIFE 7 W/LIFTERS
88.088.01 DIA KIT, CORNER MARKER CNH
014 SHIELDING LEFT SIDE
015 SHIELDING REAR
016 SHIELDING RIGHT SIDE & TOP LINK
020 DECALS
90.119.03 SHIELDING, CENTER TOP COVERS
