Case TIGER-MATE – Ii – Dmi Double Fold – 38-12′ To 50-12′ Service Index:

HYDRAULICS SINGLE FOLD MODELS 12-1/2 THROUGH 38-1/2

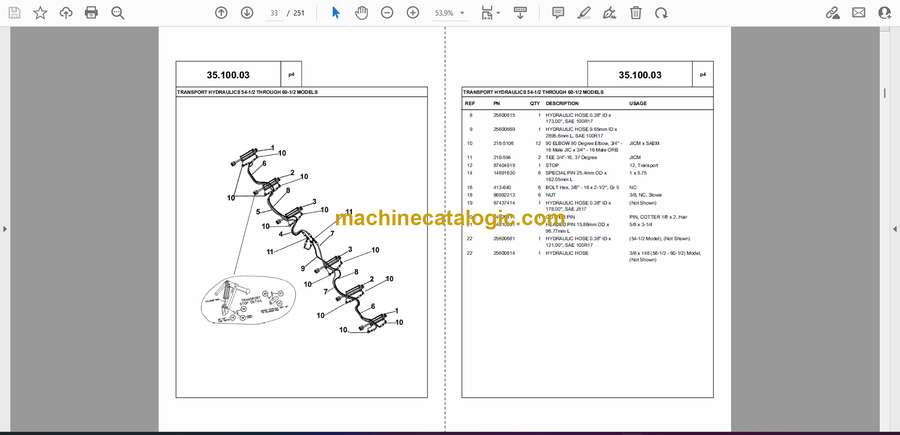

TRANSPORT HYDRAULICS 38-1/2 THROUGH 50-1/2 MODELS
TRANSPORT HYDRAULICS 54-1/2 THROUGH 60-1/2 MODELS
DOUBLE FOLD WING LIFT HYDRAULICS 38-1/2 THROUGH 46-1/2
DOUBLE FOLD WING LIFT HYDRAULICS 48-1/2 THROUGH 50-1/2
FRONT WING LIFT HYDRAULICS OPTION 38-1/2 THROUGH 46-1/2
FRONT WING LIFT HYDRAULICS OPTION 48-1/2 THROUGH 50-1/2
WING FOLD HYDRAULICS 54-1/2 THROUGH 60-1/2
HYDRAULIC CYLINDERS 3000 PSI
SINGLE FOLD MAIN FRAME 12-1/2 THROUGH 38-1/2
DOUBLE FOLD MAIN FRAME AND TRUSSES 38-1/2 THROUGH 50-1/2
DOUBLE FOLD MAIN FRAME AND TRUSSES 54-1/2 THROUGH 60-1/2
SINGLE FOLD LIFT SYSTEM
KIT HUB BEARING
DOUBLE FOLD LIFT SYSTEM AND PULL FRAME 38-1/2 THROUGH 50-1/2 MODELS
54-1/2 THROUGH 60-1/2 DOUBLE FOLD LIFT SYSTEM AND PULL FRAME
WING FRAME SINGLE FOLD 12-1/2 THROUGH 38-1/2
DOUBLE FOLD INNER WING 38-1/2 THROUGH 50-1/2 MODELS
54-1/2 TO 60-1/2 DOUBLE FOLD INNER WING
DOUBLE FOLD OUTER WING 38-1/2 THROUGH 50-1/2 MODELS
54-1/2 TO 60-1/2 DOUBLE FOLD OUTER WING
SINGLE FOLD MAIN FRAME
JACK
ACS REAR HITCH ATTACHMENT
SINGLE FOLD M.F & WING 783 WALKING AXLE ASSEMBLY
DOUBLE FOLD WALKING AXLE ASSEMBLY 38-1/2 (12 MAINFRAME ONLY) THROUGH
46-1/2
DOUBLE FOLD WALKING AXLE ASSEMBLY 48-1/2 MAINFRAME ONLY THROUGH 50-1/2
MODELS
DOUBLE FOLD WALKING AXLE ASSEMBLY MAINFRAME ONLY 54-1/2 THROUGH 60-1/2
DOUBLE FOLD WALKING AXLE ASSEMBLY (WINGS ONLY) 38-1/2 THROUGH 46-1/2
DOUBLE FOLD WALKING AXLE ASSEMBLY (WINGS ONLY) 48-1/2 THROUGH 60-1/2
MODELS
DOUBLE FOLD WALKING AXLE W/783 HUB – WINGS ONLY
DOUBLE FOLD WALKING AXLE W/50-8 HUB – 38-1/2′ – 50-1/2′ MAINFRAME
DOUBLE FOLD WALKING AXLE W/50-8 HUB – 54-1/2′ – 60-1/2′, 2005 & PRIOR
WING RIGID STABILIZER WHEEL
PIVOT STABALIZING WHEEL
PIVOT STABALIZING WHEEL
783 HUB
633 HUB AND SPINDLE ASSEMBLY
710 HUB AND SPINDLE ASSEMBLY STABILIZER WHEEL
710 HUB AND SPINDLE ASSEMBLY, WINGS ONLY
709 HUB & SPINDLE ASSEMBLY
KIT HUB BEARING
WARNING AND TAIL LIGHT KIT SINGLE FOLD 12-1/2 THROUGH 38-1/2
WARNING AND TAILLIGHT KIT 38-1/2 TO 50-1/2 MODELS
WARNING AND TAILLIGHT KIT 54-1/2 THROUGH 60-1/2 MODELS
TIGERMATE II SHANK ASSEMBLY
10 AND 12 SINGLE FOLD MAIN FRAME WALKING BEAM SERVICE PART KIT
SINGLE FOLD 14 MAIN FRAME ONLY WALKING BEAM SERVICE PART KIT
DOUBLE FOLD WALKING BEAM SERVICE KIT (38-1/2 (12 MAINFRAME) THROUGH 60-1/2
MODELS
TIGER TINE REAR HITCH ATTACHMENT
ACS PARTS BREAKDOWN
COIL TINE HARROW
TIGER TINE HARROW PARTS
TINE ADJUSMENT HANDLE STORAGE
SPIKE TOOTH HARROW
SPIKE ANTI-ANGLE KIT
DIA, KIT, TINE BAR ASSY, 4 – 16
DIA, KIT, TINE BAR ASSY, 5 – 16
KIT MAXXI SWEEP ADAPTER W/HARDWARE
KIT PROMOTIONAL ADAPTER
KIT 10.5 IN SWEEP W/ADAP HARDWARE
