Caterpillar 2EC25E 36-48V Forklift Service Manual (SENB8604-02)

This Cat 2EC25E is a 36-48V electric counterbalanced truck for moving pallets around warehouse floors, loading areas, and charger bays. When one is down during second shift, a warehouse maintenance tech or forklift mechanic uses the service manual to trace the fault and get the truck back into the aisle. I've used this kind of manual during battery swaps, drive faults, and electrical breakdowns.

What this manual helps you do

• Trace wiring, switches, and electrical faults through the truck circuits.
• Diagnose traction motor and controller problems.
• Check and adjust the brake, steering, hydraulic, and lift systems.
• Follow removal and refitting procedures for drive, axle, mast, and hydraulic parts.
• Troubleshoot operating symptoms using service data and repair procedures.

Who this is for

This suits plant maintenance technicians, dealer technicians, independent forklift repair shops, and rental fleet mechanics working on Cat electric trucks. The operator handbook is the companion volume for daily operation, while this manual is the workshop reference for repair and adjustment work.

FAQ

Q: What do I receive, and how is it organised?

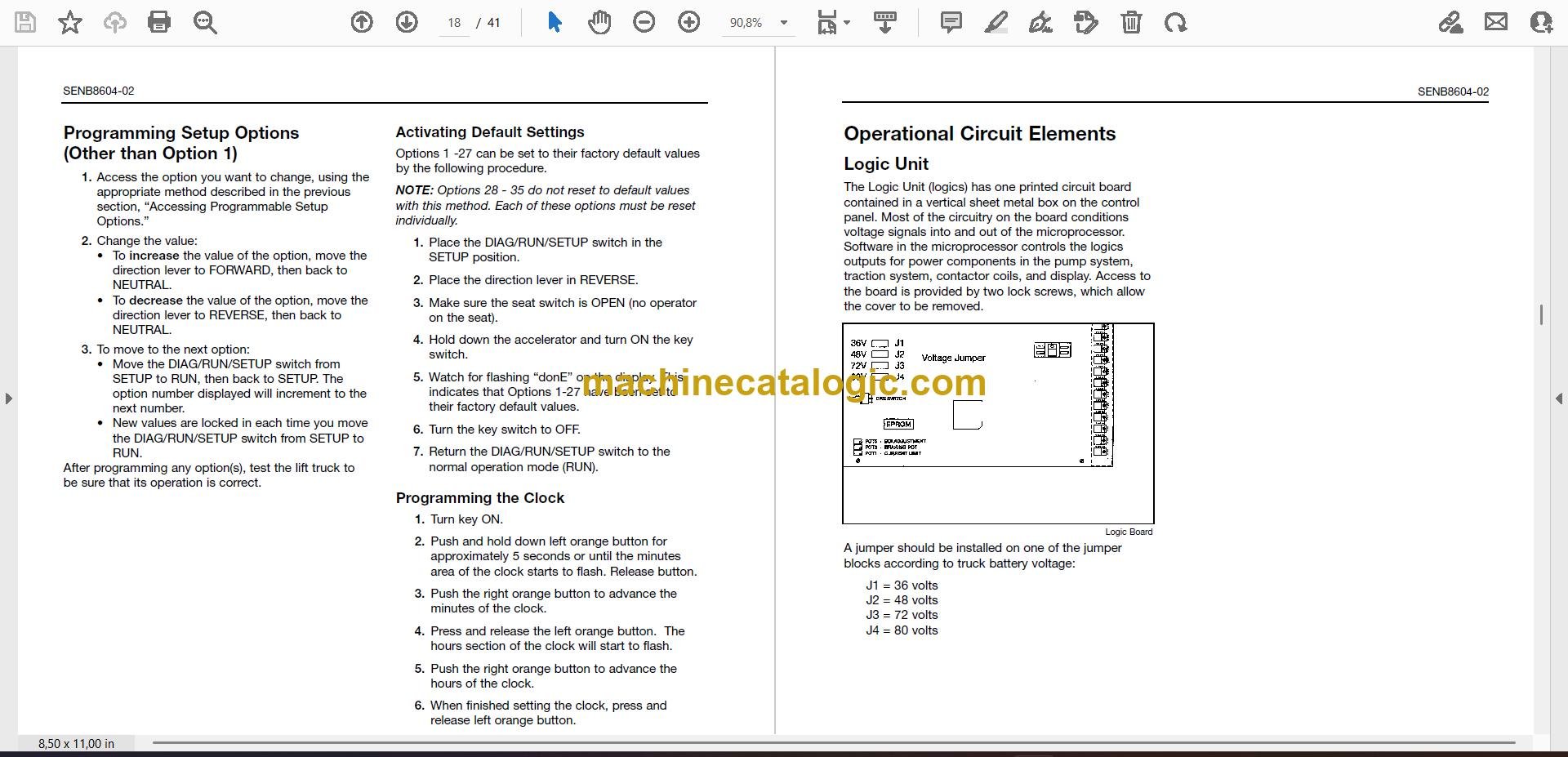

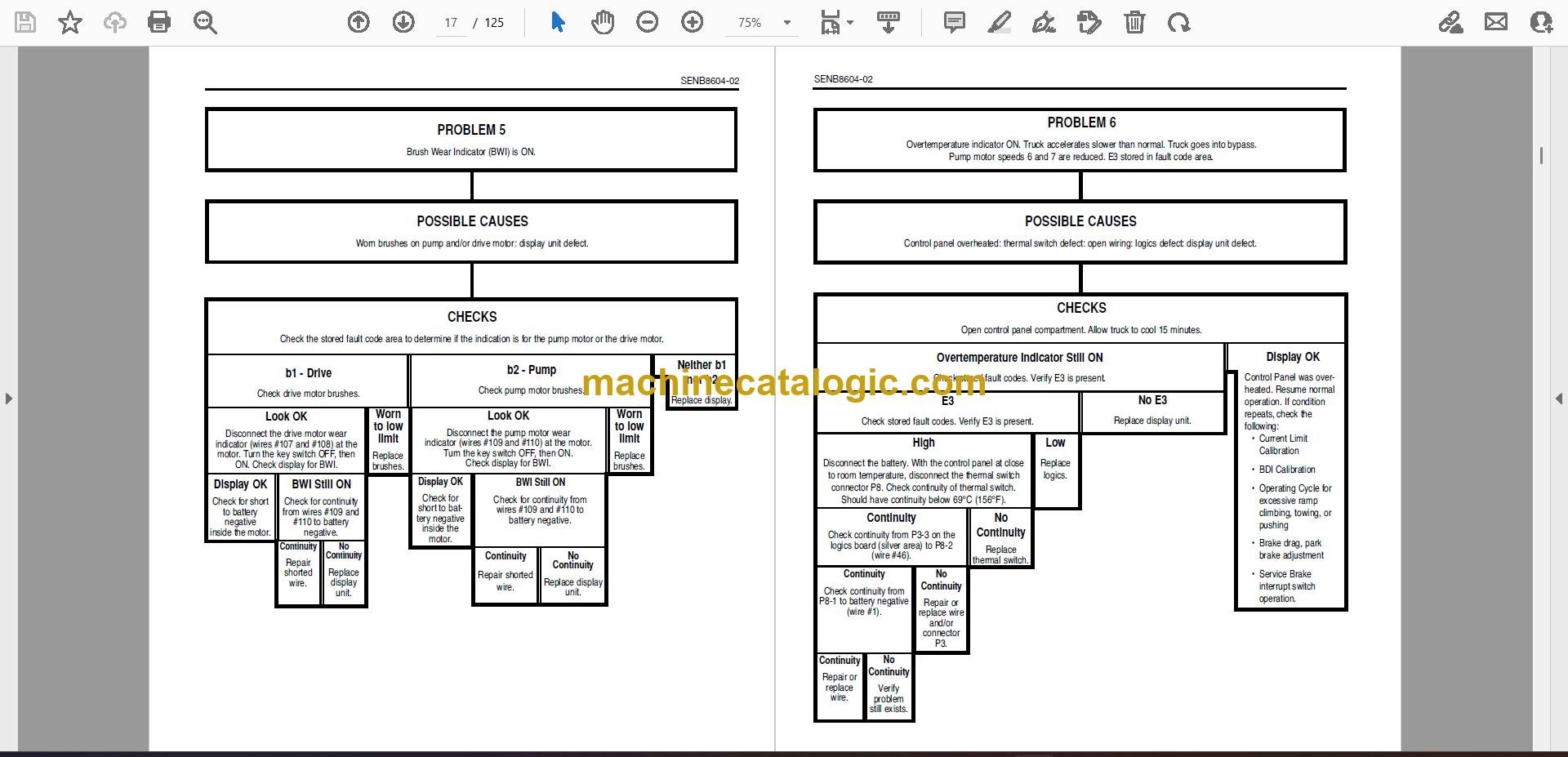

A: You receive four PDF files split by section, with 179 pages total. The PDFs support normal printing and on-screen zoom, and the set has a real text layer for searching and copying text.

Q: Which Cat truck variants does it fit?

A: It covers 2EC15, 2EC18, 2EC20, 2EC25, 2EC25E, and 2EC30. If the truck identification plate shows 2EC25E, this is the matching service manual.

Q: How does it fit the job I'm doing?

A: It is the workshop-level repair manual for an electric counterbalanced lift truck, covering electrical, traction, hydraulic, steering, brake, axle, mast, and troubleshooting work. That's the book to have beside the truck when you're aiming to clear a breakdown before the next wave.

For a Cat 2EC25E repair, this manual gives your shop the procedures and service information needed to test, adjust, remove, and refit major truck systems.

Models covered by this manual

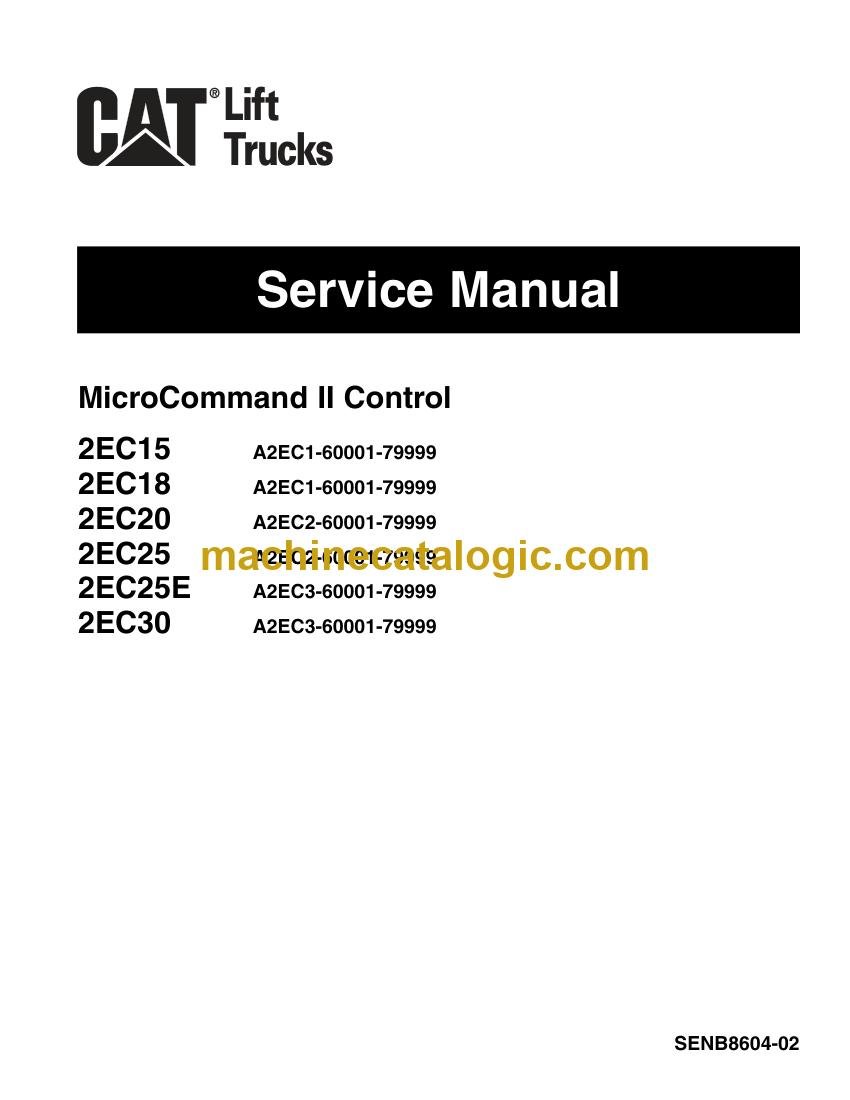

Caterpillar publication SENB8604-02 is the factory service manual for the 2EC25E 36-48V. The same publication covers 4 further forklift models: 2EC1536-48V, 2EC1836-48V, 2EC20-36-48V, 2EC25 36-48V. The cover also lists 2EC15, 2EC18, 2EC20, 2EC25, 2EC25E, 2EC30. Check the model and serial number on your data plate before ordering.
