Caterpillar 2EC20-36-48V Forklift Service Manual (SENB8604-02)

If your truck is a Cat electric counterbalanced model in the 2EC family, this is the workshop manual to have on the bench. These trucks move pallets and other loads around warehouses, plants, and yards, and the manual is for repairing the truck itself. In my shop, this is the book a technician reaches for when the truck needs electrical, drive, hydraulic, brake, steering, mast, or troubleshooting work.

What this manual helps you do

• Trace electrical faults through the truck wiring and control circuits.
• Diagnose traction motor, controller, drive unit, and operating problems.
• Follow procedures for hydraulic, steering, brake, mast, and fork service.
• Adjust and verify truck systems during repair and reassembly.

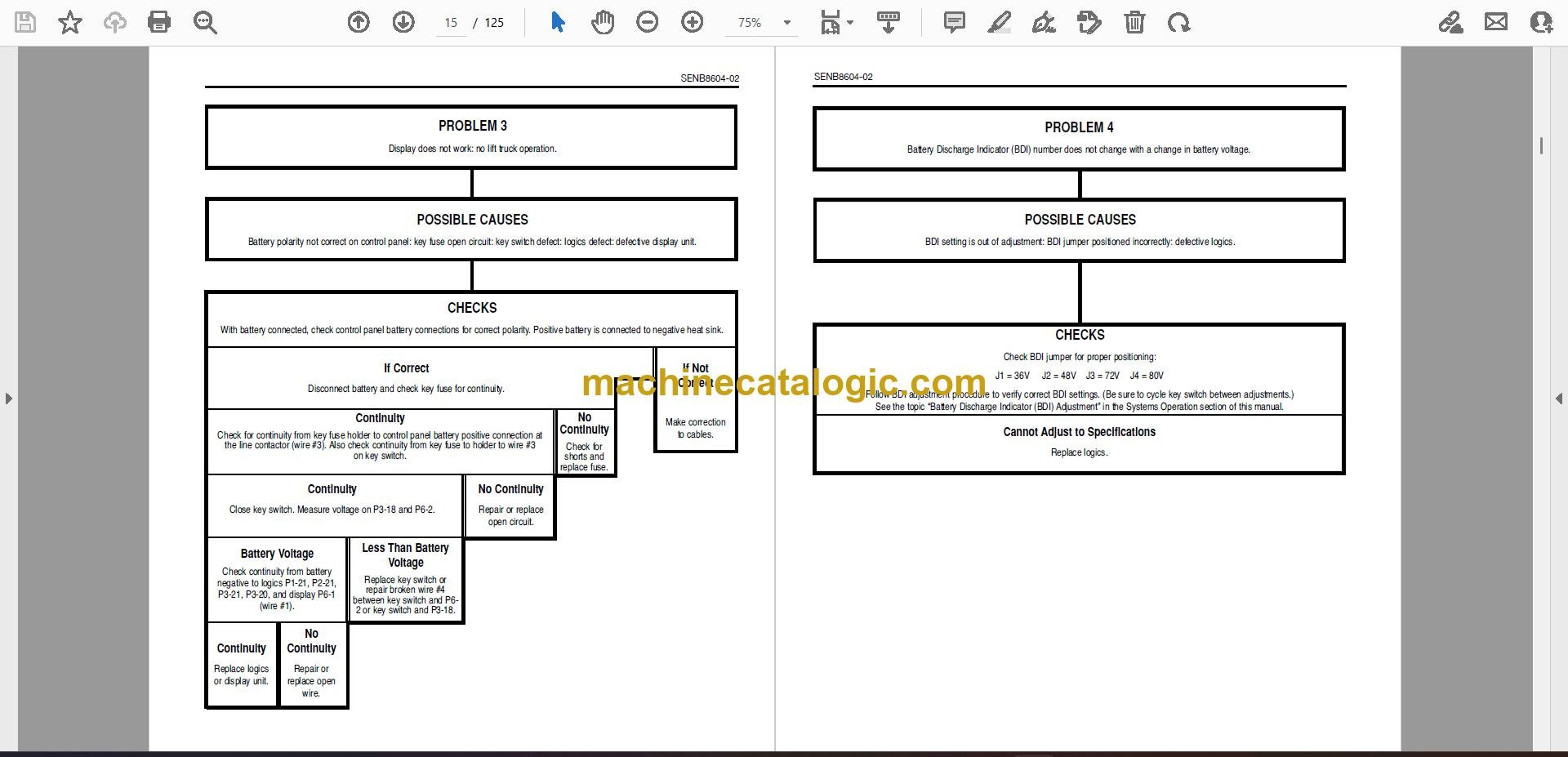

• Troubleshoot faults using service data and workshop checks.

Who this is for

This suits a warehouse maintenance technician, plant mechanic, rental fleet mechanic, dealer technician, or independent forklift repair shop. The operator handbook is the companion volume for daily operation, while this manual is the one for the repair trade.

FAQ

Q: What do I receive, and how is it organised?

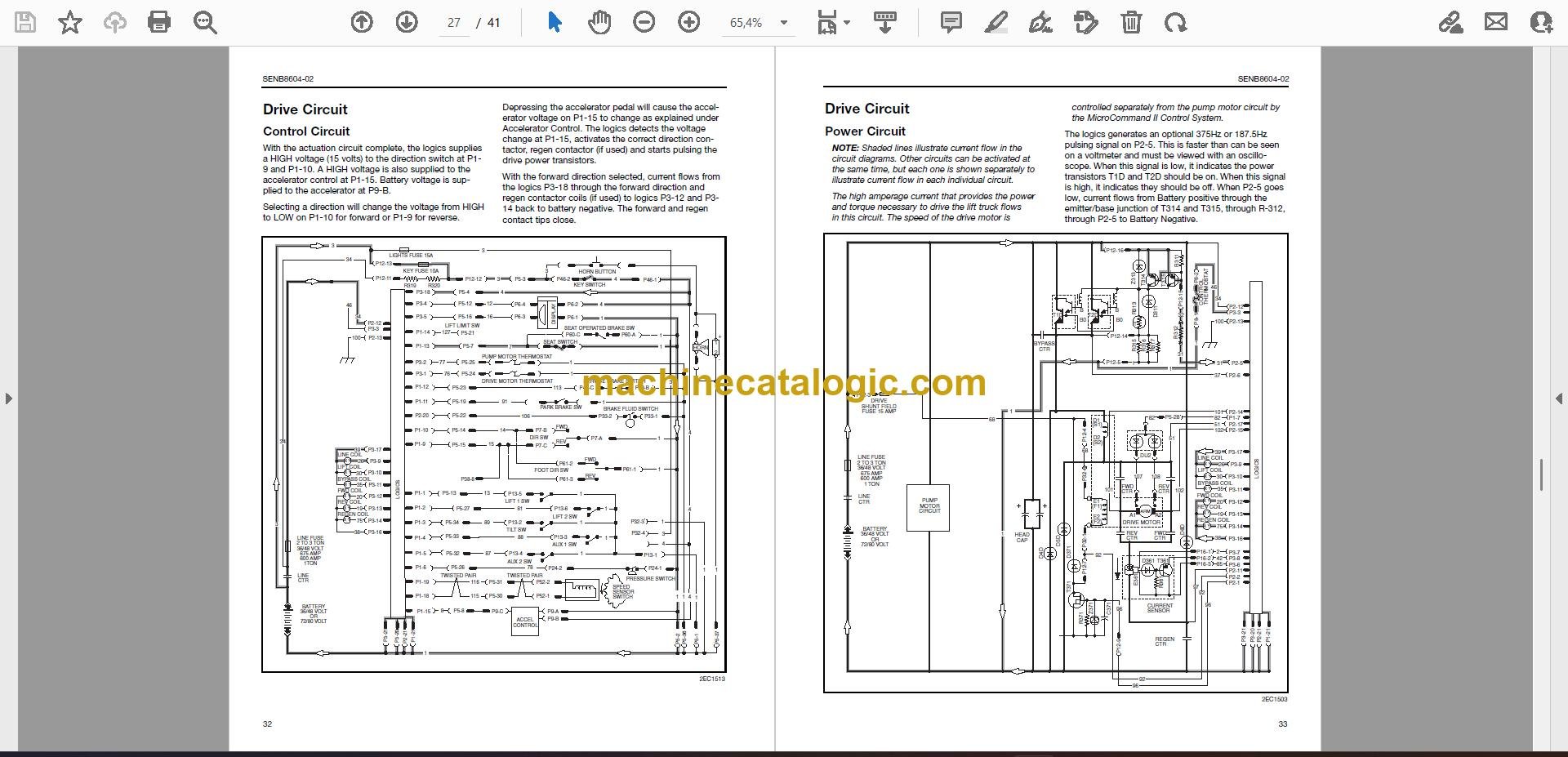

A: You receive four PDF files split by section. The PDFs have a real text layer, so you can search them, copy text, print pages, and zoom in on the procedures and diagrams.

Q: Which trucks does it fit?

A: The manual covers Cat models 2EC15, 2EC18, 2EC20, 2EC25, 2EC25E, and 2EC30, including the 36V and 48V 2EC20 variants identified by the title. Match the model tag on the truck before ordering.

Q: How does it fit the repair job?

A: It is a service manual for the electric truck chassis, including the traction system, wiring, hydraulics, axles, brakes, steering, mast, and fault diagnosis. That gives a working technician the procedures and service data needed to repair the truck in-house.

If your truck matches one of those 2EC models, this manual gives you a practical repair reference for diagnosing faults and getting the lift truck back to work.

Models covered by this manual

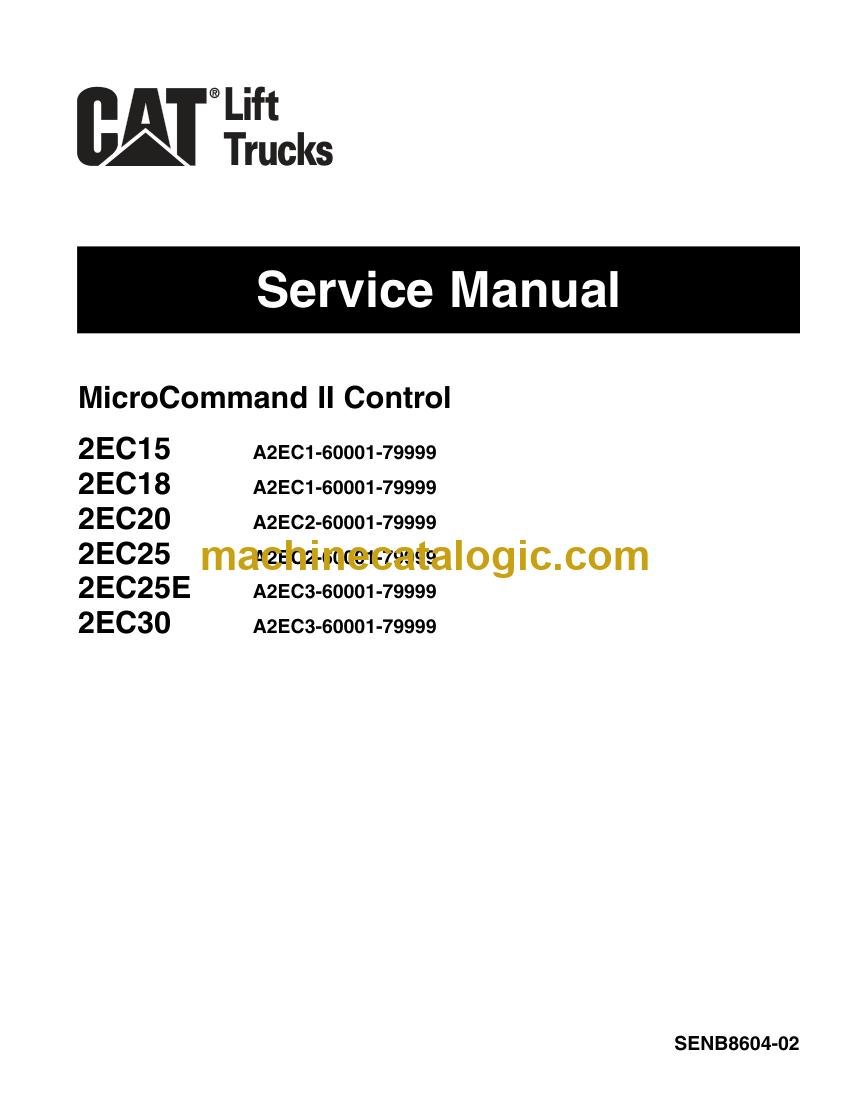

Caterpillar publication SENB8604-02 is the factory service manual for the 2EC20-36-48V. The same publication covers 4 further forklift models: 2EC1536-48V, 2EC1836-48V, 2EC25 36-48V, 2EC25E 36-48V. The cover also lists 2EC15, 2EC18, 2EC20, 2EC25, 2EC25E, 2EC30. Check the model and serial number on your data plate before ordering.

Table of Contents:

• K ohms
• N•m (320 lb in)
• N•m (71 lb in)
• C 0.0 C 1.5 C 2.0 C 2.5 C 3.0
• Disable Lift On Low
• Speed Limit On Low
• Disable Lift On High
• Speed Limit On High
• Volts
