Caterpillar 2PD4000 Forklift Service Manual (99719-8M110)

This Cat 2PD4000 is a diesel counterbalanced forklift for moving pallets and loads around warehouse floors, loading areas, and yards. When one is pulled from an aisle during a second-shift breakdown, maintenance staff use the service manual to test systems, set adjustments, and complete repairs. It is aimed at getting the truck back into service, not teaching an operator to drive it.

What this manual helps you do

• Trace electrical faults through wiring, switches, and starting or charging circuits.
• Check and adjust the brake, steering, hydraulic, mast, and fork systems.
• Diagnose power-train, transmission, axle, and drive complaints.
• Follow removal, inspection, repair, and reassembly procedures for truck components.
• Verify service data and use the matching engine publication for engine work.

Who this is for

This suits a warehouse maintenance tech, dealer technician, independent forklift shop, plant mechanic, or rental fleet mechanic working on Cat 2PD4000 trucks. The operator handbook is the companion volume for daily operation, and is also available.

FAQ

Q: What do I receive, and how is it organised?

A: You receive two Cat publications delivered as 24 PDF files, split by section, with 657 pages total. The files support printing, zooming, text search, and copying text.

Q: Does it fit my 2PD4000 truck?

A: Yes, the manual is for the 2PD4000, with serial coverage AT18C-30121-49999. That gives you a clear match for trucks in that range.

Q: How does this fit the repair job?

A: It is the workshop service set for troubleshooting, adjustment, teardown, and repair of the truck systems, with the engine material included in the set. It belongs on the maintenance computer or in the shop for fault-finding and scheduled repairs.

Use it to work through a 2PD4000 breakdown, confirm service data, and return the truck to the floor before the next wave.

Models covered by this manual

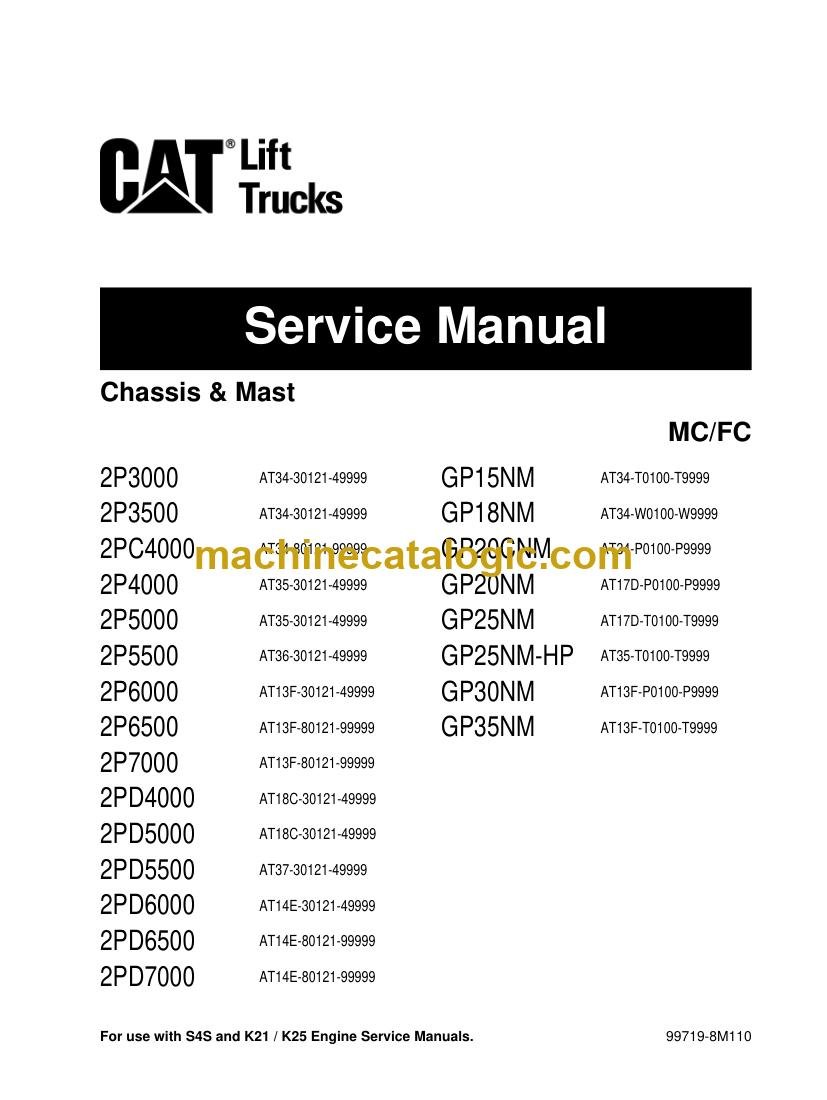

Caterpillar publication 99719-8M110 is the factory service manual for the 2PD4000, serial range AT18C-30121-49999. The same publication covers 6 further forklift models: 2PD5000, 2PD6000, 2PD6500, 2PD7000, GP25NM, GP30NM. The cover also lists 2P3000, 2P3500, 2PC4000, 2P4000, 2P5000, 2P5500, 2P6000, 2P6500, 2P7000, 2PD5500, GP15NM, AT34-T0100-T9999, GP18NM, AT34-W0100-W9999, GP20CNM, AT34-P0100-P9999. Check the model and serial number on your data plate before ordering.
