Caterpillar EC55N Forklift Control System Service Manual (SENB8473-02)

The Cat EC55N is an electric counterbalanced forklift used to move pallets around warehouse aisles, loading areas, and charger bays. When a truck drops out during a battery swap or second-shift run, this is the specialist manual a maintenance tech uses to trace the electronic fault and get it working again. It covers the control system, including the electronic control unit, parameter settings, diagnostics, fault codes, and adjustments.

What this manual helps you do

• Trace control-system wiring, inputs, outputs, and power supply faults.
• Check controller operation and verify parameter settings.
• Diagnose fault codes and follow the related test and adjustment procedures.
• Adjust control-system functions after repair or component replacement.
• Troubleshoot drive and truck response problems linked to the electronic controls.

Who this is for

This suits warehouse maintenance techs, dealer technicians, independent forklift shops, plant maintenance teams, and rental fleet mechanics working on EC55N trucks. The companion chassis manual is also available for the truck's mechanical systems, including hydraulics, mast, brakes, steering, and drive components.

FAQ

Q: What do I receive, and how is it organised?

A: You receive 8 PDF files split by section, with 143 pages total. The files are arranged for workshop use, print or on-screen zoom, and carry a real text layer so you can search and copy text.

Q: Will it fit my truck?

A: It is identified specifically for the Caterpillar EC55N control system, under reference SENB8473-02. Match the EC55N model designation on the truck before using the procedures.

Q: How does it fit the repair job?

A: Use it when the problem points to electronic control, controller settings, wiring, diagnostics, or fault codes. It gives the technician a structured reference for fault-finding instead of guessing at parts.

Yes, this is the right manual for in-house electronic troubleshooting on a Cat EC55N. It helps you diagnose control faults and return the truck to service before the next warehouse wave.

Models covered by this manual

Caterpillar publication SENB8473-02 is the factory control system service manual for the EC55N. The same publication covers 3 further forklift models: EC35N, EC40N, EC45N. Check the model and serial number on your data plate before ordering.

Table of Contents:

• Ton, 8 Ton & 10 Ton
• Ton
• Amps
• Amps
• Amps

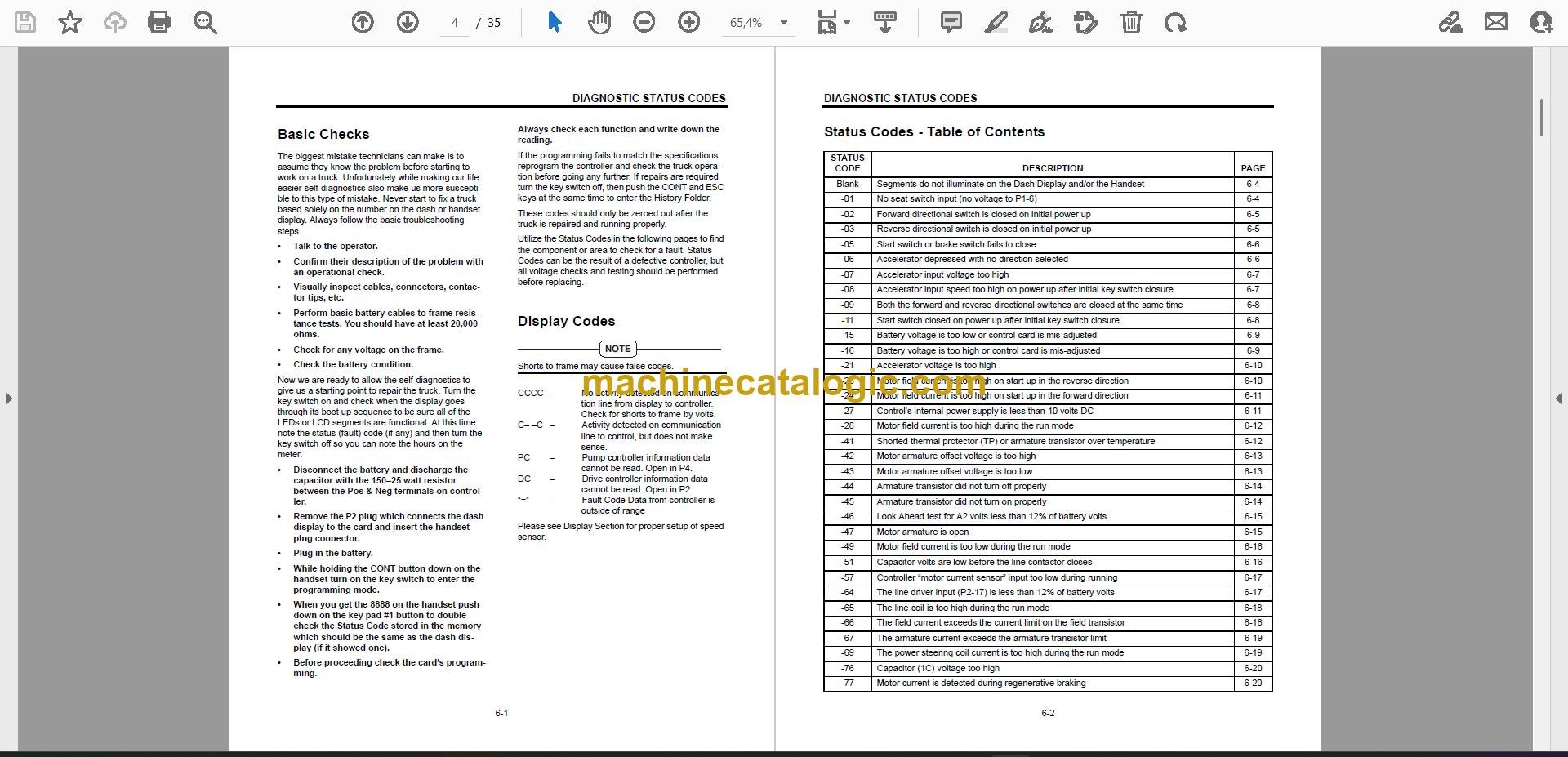

• Status Codes that caused the operation of the lift
• Ton
• Ton
• Volts
• Volts
