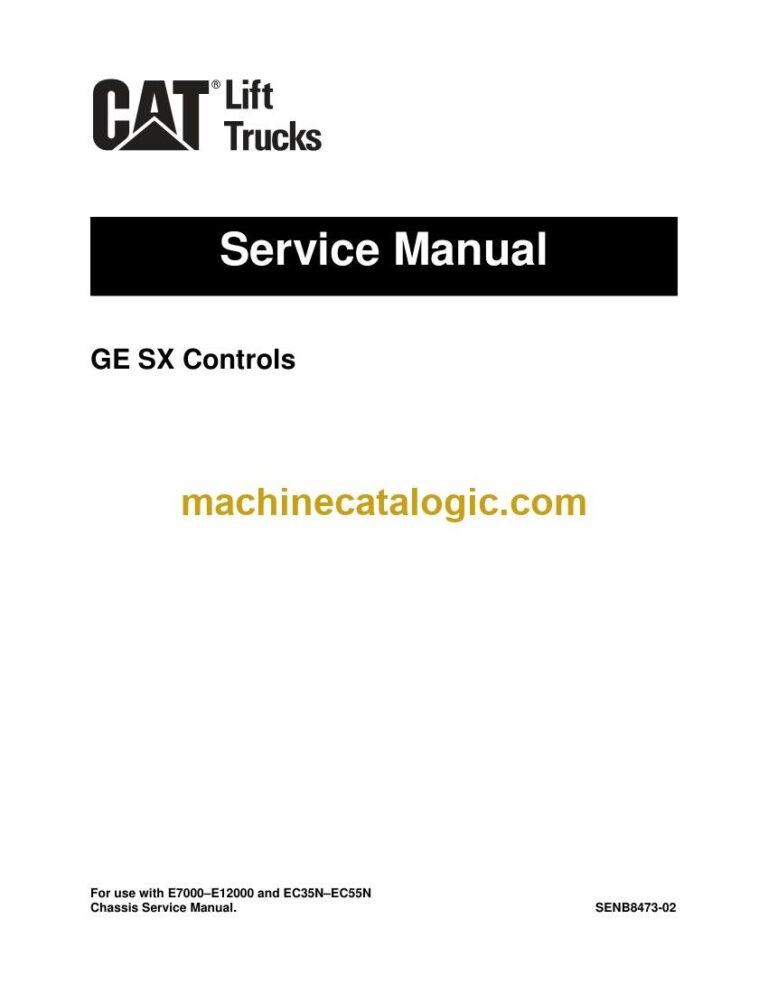

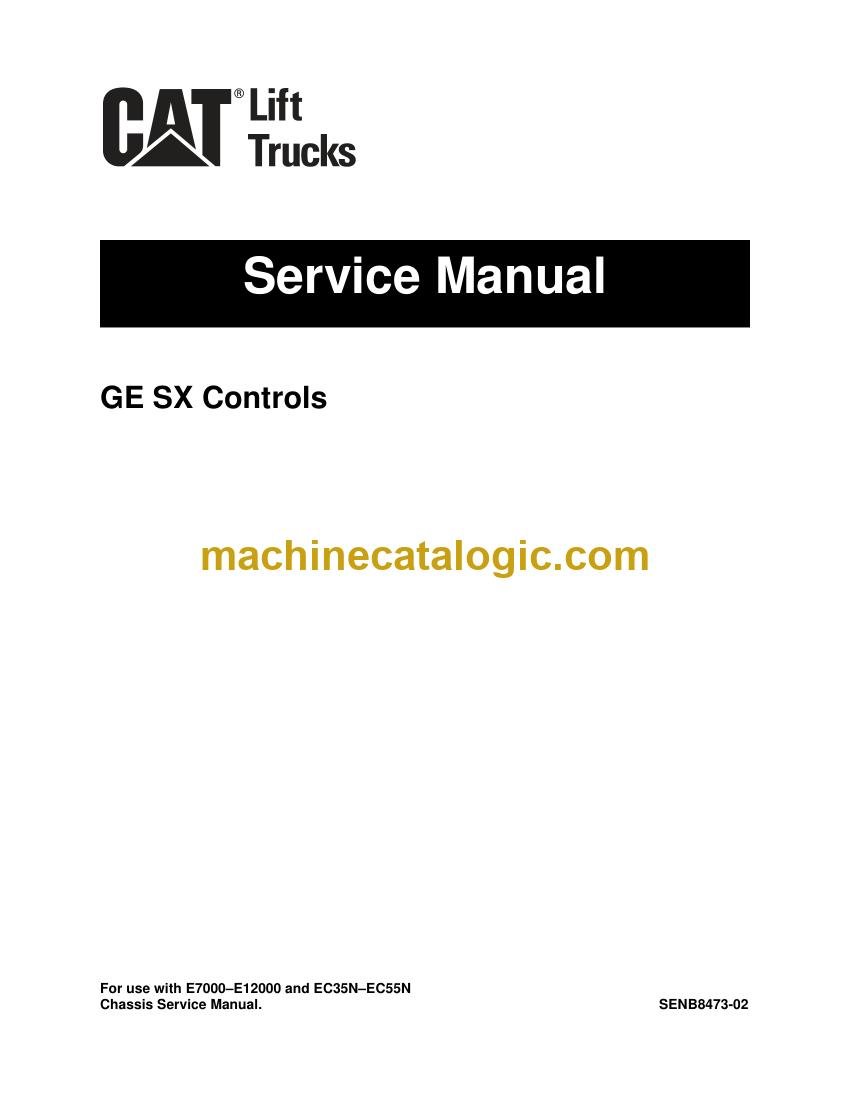

Caterpillar EC45N Forklift Control System Service Manual (SENB8473-02)

The Cat EC45N is an electric counterbalanced truck used to move and stack pallets around a warehouse or plant. When its electronic controls raise fault codes, lose a function, or need setup, this is the book a maintenance technician reaches for. It is written for workshop troubleshooting of the control system, including the electronic control unit, settings, diagnostics, fault codes, and adjustments.

What this manual helps you do

• Trace control-system wiring, signals, and connections.
• Check electronic control unit inputs, outputs, and operating conditions.
• Diagnose fault codes and connect them to practical test steps.
• Adjust parameter settings and control-system functions.
• Verify repairs before returning the EC45N to service.

Who this is for

This suits a warehouse maintenance tech, plant maintenance lead, dealer technician, independent forklift shop, or rental fleet mechanic working on an EC45N. In my experience, it is the specialist book you want during a short repair window, while the companion chassis manual covers the mechanical truck, mast, hydraulics, and related systems.

FAQ

Q: What do I receive, and how is it organized?

A: You receive 8 PDF files, split by section, with 143 pages total. The set has a real text layer, so you can search it, copy text, print pages, and enlarge them on screen.

Q: Will it fit my truck?

A: It is written for the Caterpillar EC45N electric counterbalanced forklift. Match the model on the truck identification plate before applying settings or diagnostic procedures.

Q: How does it fit the repair job?

A: Use it when the problem involves the electronic control unit, controller settings, diagnostics, fault codes, or adjustment. It gives the shop-level reference for electronic troubleshooting rather than operator use.

If your job is diagnosing the control system on a Cat EC45N, yes, this is the manual to have at the bench or beside the truck.

Models covered by this manual

Caterpillar publication SENB8473-02 is the factory control system service manual for the EC45N. The same publication covers 3 further forklift models: EC35N, EC40N, EC55N. Check the model and serial number on your data plate before ordering.
