Caterpillar EP30 72-80V MCIII Forklift Electrical Schematic (99759-60100)

Yes, if you're tracing an electrical fault on a Cat EP30 72-80V MCIII, this is the wiring manual to have at the truck. It covers the electrical systems used on the plant floor, so a maintenance tech can identify circuits instead of guessing during a short weekend repair window. Electricians, warehouse maintenance staff, dealer technicians, and rental fleet mechanics reach for this when the truck has a no-start, drive, charging, control, or intermittent wiring problem.

What this manual helps you do

• Trace full circuit routing through the truck's electrical system.
• Check connector pin assignments, wire numbers, and wire colours.
• Follow wiring from batteries and controls through traction motors, controllers, sensors, and truck functions.
• Diagnose faults using the included diagnostic tables.
• Verify the schematic against the EP-series voltage and model variant before testing.

Who this is for

This suits a plant maintenance technician, forklift electrician, dealer technician, independent repair shop, or rental fleet mechanic working on Cat electric counterbalanced trucks. Step-by-step mechanical repair procedures are in the companion chassis service manual, also available, while this manual is the electrician's wiring reference.

FAQ

Q: What do I receive, and how is it organised?

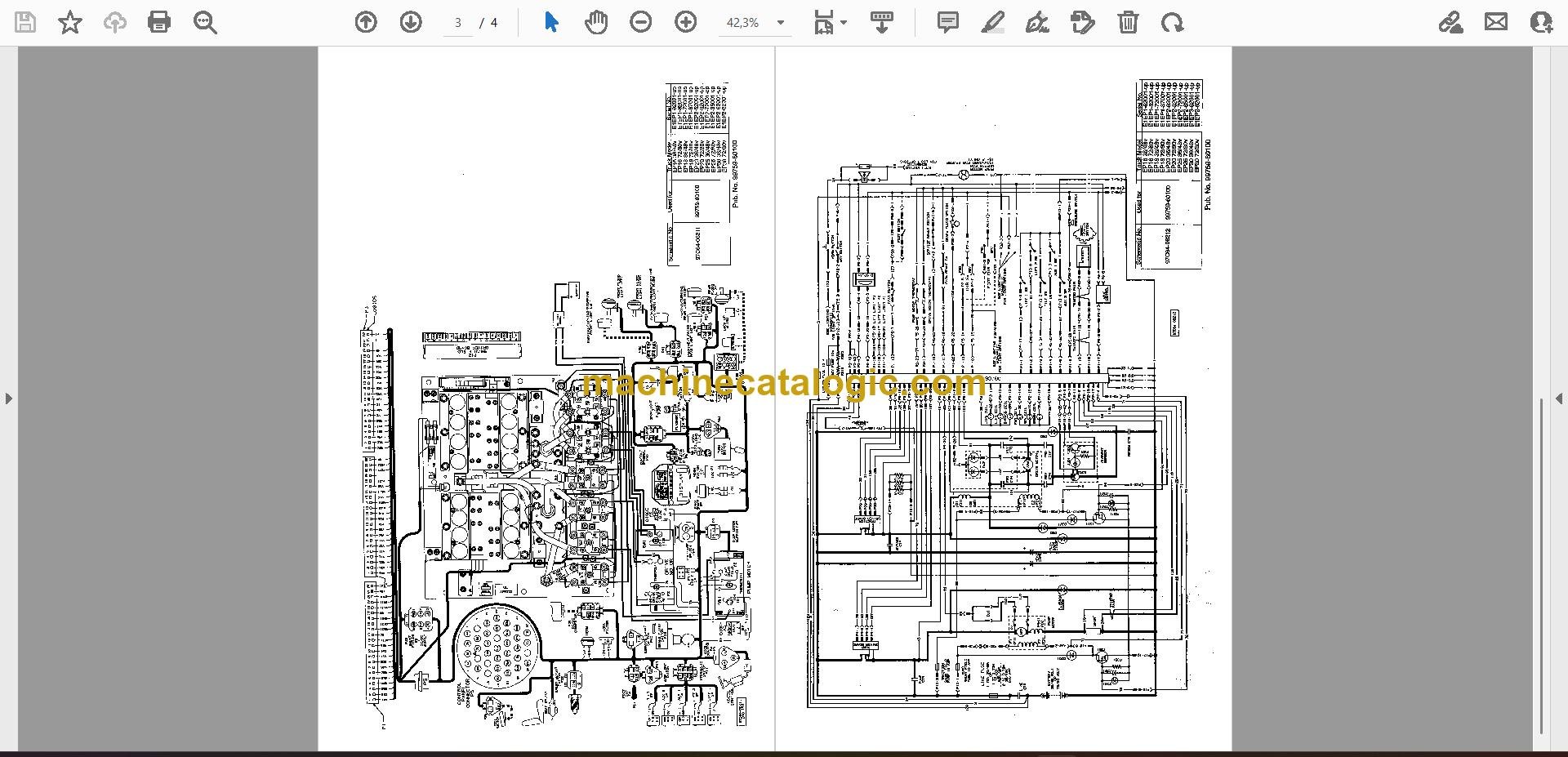

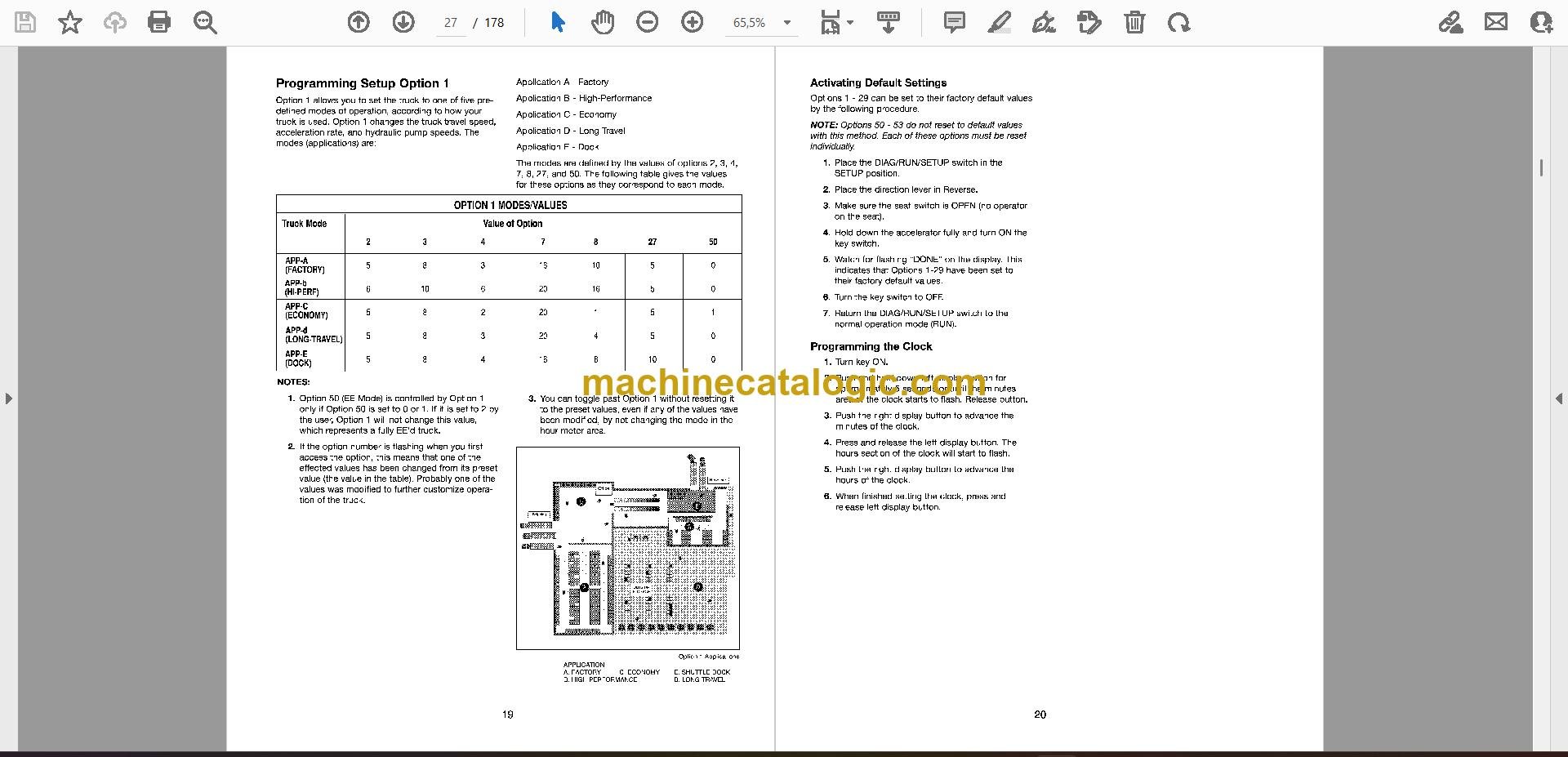

A: You receive 2 PDF files with 182 pages total, split by section. They are arranged for practical on-screen reference and printing when a wiring sheet needs to be beside the truck.

Q: Does it match my truck's model and serial coverage?

A: It covers EP16, EP18, EP20, EP25, and EP30 trucks in the listed 36/48V and 72/80V versions, including EP30 72-80V MCIII serial groups E1EP1-62001-up, E1EP1-82001-up, E1EP1-72001-up, E1EP1-87001-up, E1EP2-82001-up, and E1EP2-92001-up.

Q: How does it fit the repair job?

A: Use it for electrical fault-finding, connector checks, wire tracing, and controller or motor circuit diagnosis. It gives the circuit information needed to test methodically and return the truck to service.

For the covered EP-series trucks, this manual lets you work through wiring faults with the circuit path in front of you.

Models covered by this manual

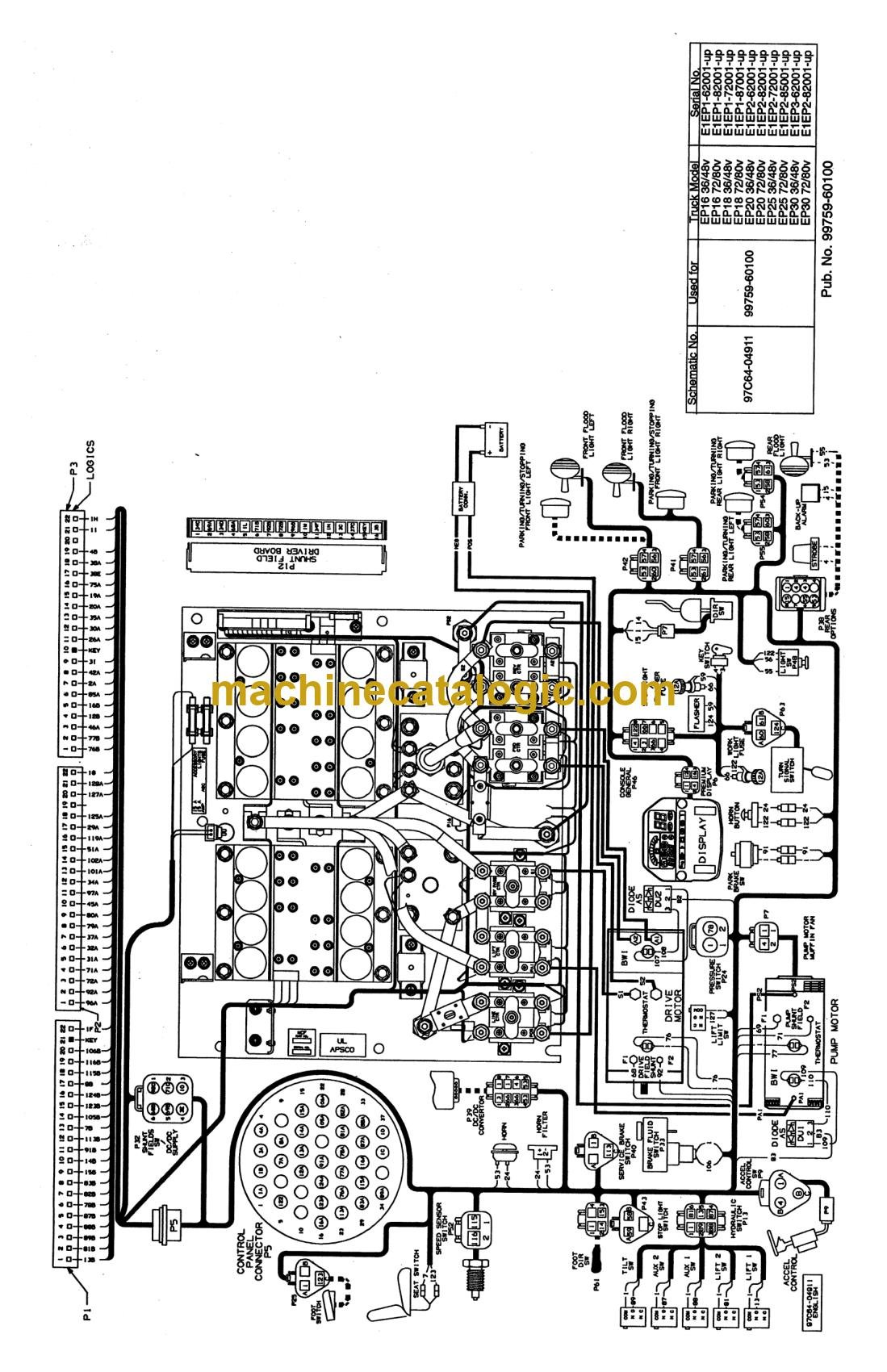

Caterpillar publication 99759-60100 is the factory electrical schematic for the EP30 72-80V MCIII. The same publication covers 9 further forklift models: EP16 36-48V MCIII, EP16 72-80V MCIII, EP18 36-48V MCIII, EP18 72-80V MCIII, EP20 36-48V MCIII, EP20 72-80V MCIII, EP25 36-48V MCIII, EP25 72-80V MCIII, EP30 36-48V MCIII. The cover also lists EP16 36/48V, EP16 72/80V, EP18 36/48V, EP18 72/80V, EP20 36/48V, EP20 72/80V, EP25 36/48V, EP25 72/80V, EP30 36/48V, EP30 72/80V. Check the model and serial number on your data plate before ordering.
