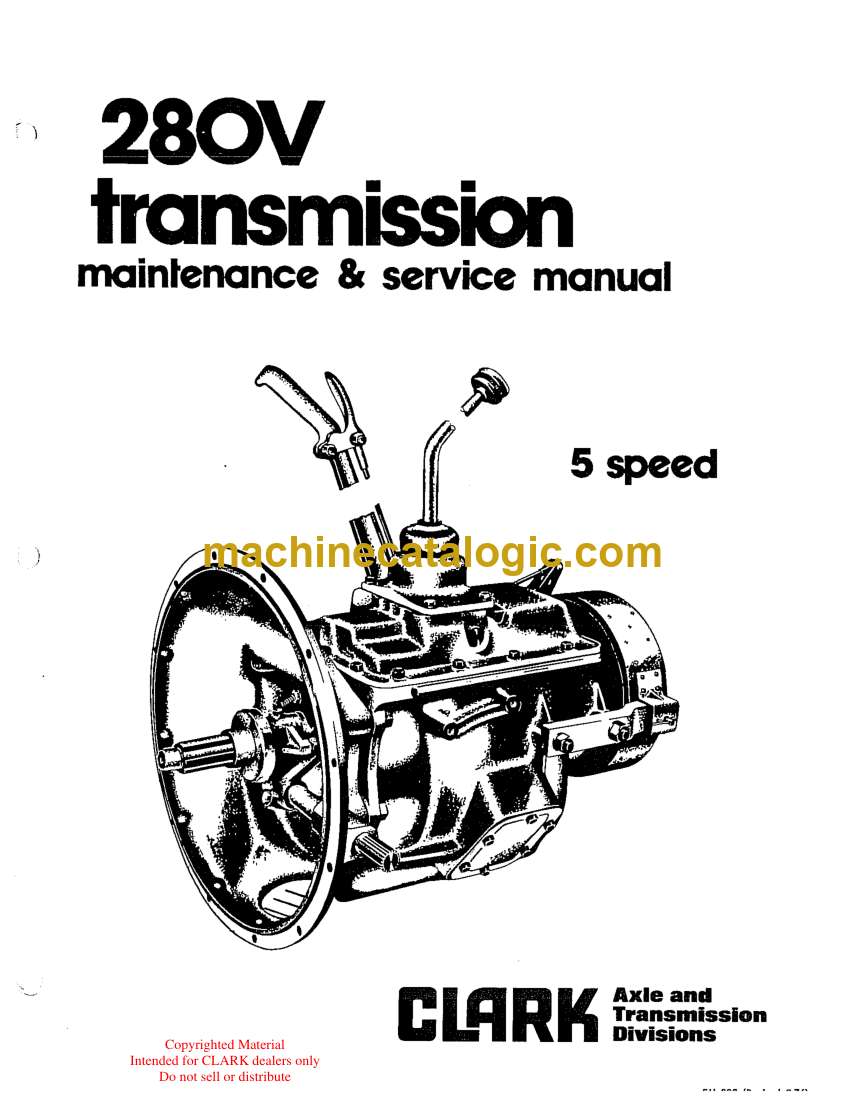

Clark 280V Transmission 5 Speed Axle and Transmission Divisions Index:

1. Shift Rod Cover Screw — 14
2. Shift Rod Cover Screw Lockwasher — 14
3. Control Cover (Stamped version) — 1
4. Control Cover Gasket — 1
5. Mainshaft 5th Speed Synchronizer Cup — 1
6. Mainshaft 4th & 5th Synchronizer Assembly — 1
7. Mainshaft 4th Speed Synchronizer Cup — 1
8. Mainshaft 4th & 5th Shift Hub Sleeve
– Retainer Ring — 1
9. Mainshaft 4th & 5th Shift Hub Sleeve — 1
10. Mainshaft 4th Speed Gear — 1
11. Mainshaft 3rd Gear Retainer Ring — 1
12. Mainshaft 3rd Gear Locating Washer — 1
13. Mainshaft 3rd Speed Gear — 1
14. Mainshaft 3rd Speed Synchronizer Cup — 1
15. Mainshaft 2nd & 3rd Synchronizer Assembly — 1
16. Mainshaft 2nd & 3rd Shift Hub Sleeve
– Retainer Ring — 1
17. Mainshaft 2nd & 3rd Shift Hub Sleeve — 1
18. Mainshaft 2nd & 3rd Shift Hub Sleeve
– Retainer Ring — 1
19. Mainshaft 2nd Speed Gear — 1
20. Mainshaft 2nd Speed Gear Locating Washer — 1
21. Mainshaft 2nd Speed Gear Retainer Ring — 1
22. Mainshaft — 1
23. Mainshaft 1st & Reverse Gear — 1
24. Countershaft Rear Bearing Cap Screw — 4
25. Countershaft Rear Bearing Cap Lockwasher — 4
26. Countershaft Rear Bearing Cap — 1
27. Countershaft Rear Bearing Cap Gasket — 1
28. Countershaft Rear Bearing Retainer Ring — 1
29. Countershaft Rear Bearing — 1
30. Countershaft Rear Bearing Oil Slinger — 1
31. Countershaft Gear Key — 1
32. Countershaft 4th Speed Gear — 1
33. Countershaft Drive Gear — 1
34. Countershaft Drive Gear Retainer Ring — 1
35. Filler Plug — 1
36. Magnetic Drain Plug — 1
37. Flange Nut — 1
38. Flange to Drum Bolt Nut — 4
39. Brake Drum — 1
40. Brake Drum to Flange Bolt — 4
41. Brake Assembly — 1
42. Brake Assembly — 1
43. Brake Drum to Flange Bolt — 4
44. Mainshaft Rear Oil Seal — 1
45. Mainshaft Rear Bearing Cap Screw — 3
46. Mainshaft Rear Bearing Cap Screw Lockwasher — 3
47. Mainshaft Rear Bearing Cap — 1
48. Mainshaft Rear Bearing Cap Gasket — 1
49. Speedometer Drive Gear — 1
50. Mainshaft Rear Bearing — 1
51. Transmission Case — 1
52. P.T.O. Cover Plate Gasket — 2
53. P.T.O. Cover Plate — 2
54. P.T.O. Cover Plate Screw — 12
55. Mainshaft Rear Bearing Cap Screw Lockwasher — 1
56. Mainshaft Rear Bearing Cap Screw — 1
57. Speedometer Driven Gear — 1
58. Speedometer Tube Nut — 1
59. Reverse Idler Shaft Lock Screw — 1
60. Reverse Idler Shaft Lock — 1
61. Reverse Idler Shaft — 1
62. Reverse Idler Thrust Washer — 2
63. Reverse Idler Bearing — 2
64. Reverse Idler Gear — 1
65. Mainshaft Spigot Bearing — 1
66. Main Drive Gear — 1
67. Main Drive Gear Bearing Oil Slinger — 1
68. Main Drive Gear Bearing — 1
69. Main Drive Gear Bearing Retainer Ring — 1
70. Main Drive Gear Bearing Cap Oil Seal — 1
71. Main Drive Gear Bearing Cap Gasket — 1
72. Main Drive Gear Bearing Cap — 1
73. Main Drive Gear Bearing Cap Screw — 4
74. Clutch Housing Stud Nut — 4
75. Clutch Housing Stud Nut Lockwasher — 4
76. Clutch Housing Stud — 4
77. Countershaft Pilot Bearing — 1
78. Pedal Shaft Grease Fitting — 1
79. Clutch Housing Inspection Plate Bolt — 2
80. Clutch Housing Inspection Plate Lockwasher — 2
81. Clutch Housing Inspection Plate — 1
82. Clutch Housing Shaft Bushing — 1
