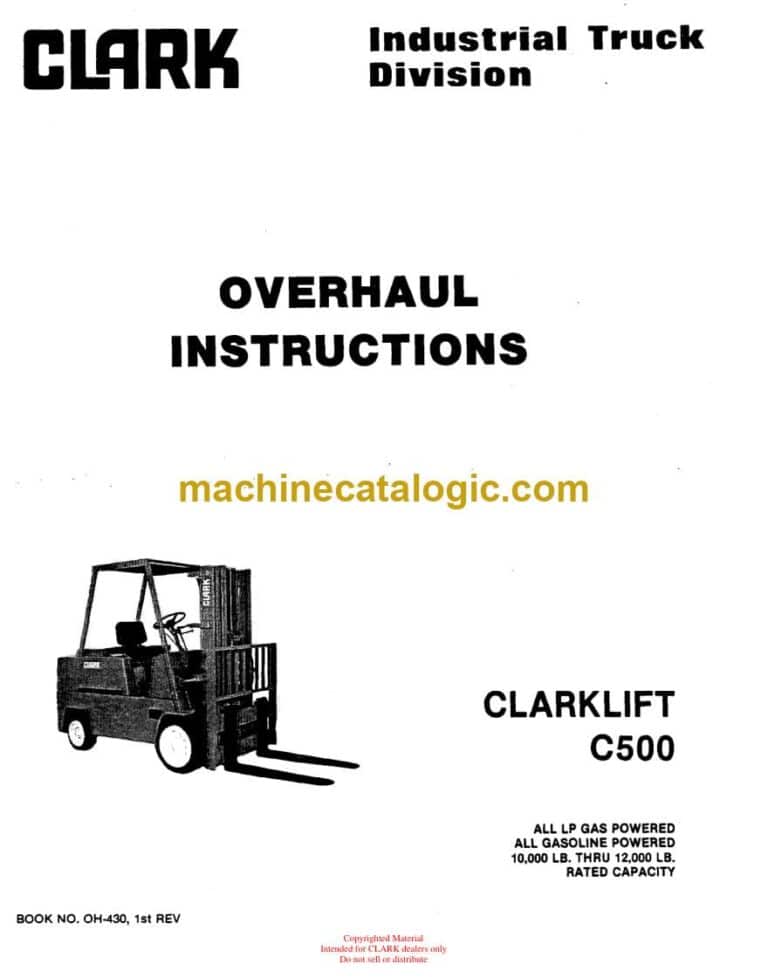

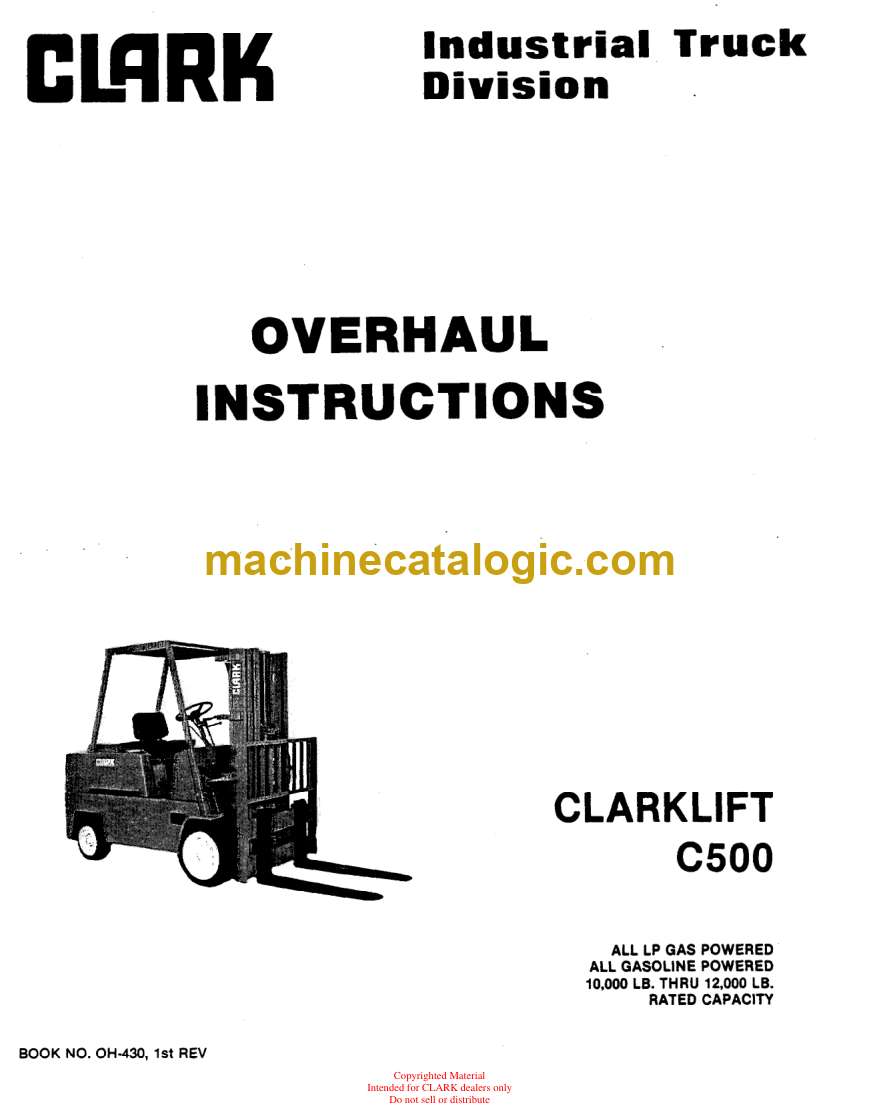

Clark C500 All Gas Powered Overhaul Manual (OH430)

Clark C500 All Gas Powered Index:

ASSEMBLY
Engine (Continental)
Carburetor (IMPCO/LPG)
Carburetor (Zenith/Gas)
INDEX
GROUP SECTION
OTS152A – 00~152~
02 10
02M150A – 02~150~
Transmission (Hydratork) 26M206A – 06~206~
Starter (Delco-Remy) llM103A – llM103F
Distributor (Prestolite) 11 03
Alternator (Delco-Remy) 12 03
Drive Axle (Clark) 20 06
Hydrovac (Bendix) 23M503P – 23M503T

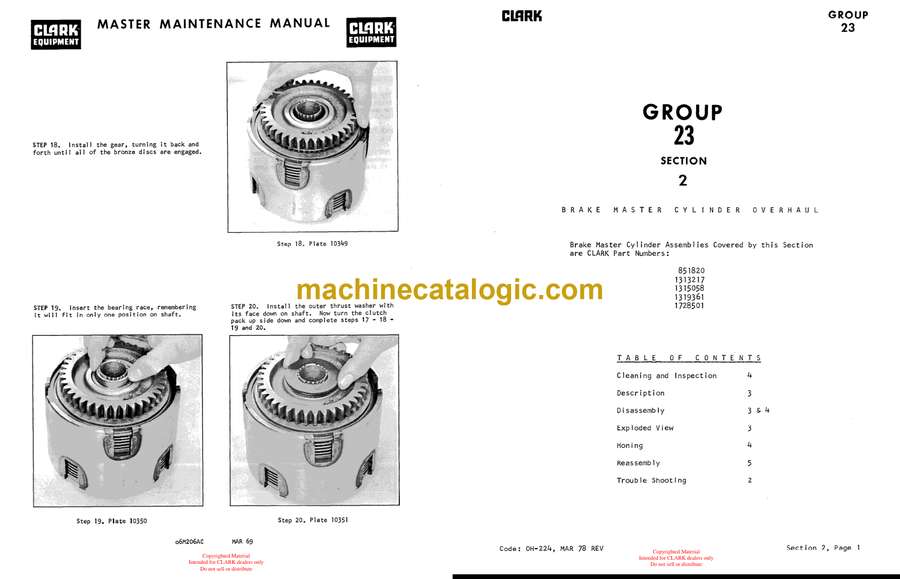

Master Cylinder (Wagner) 23 02
Brake Assembly (Clark) 23 11
Steer Gear (Saginaw) 25 05
Steer Cylinder (Hydraulic Prod.) 26 09
Steer Pump (Hydreco) 29 01
Hydraulic Pump (Hydreco) 29 13
Tilt Cylinder (Clark) 32 09
Lift Cylinder (Clark) 34 01
