Clark CF30B, CF40B, CF50B, CLFR40 Forklift Operators Manual (O-C81-2)

Clark CF30B, CF40B, CF50B, CLFR40 Forklift Index:

## 8 Hour Lubrication & Preventive Maintenance Illustration

Horn, Fuel Tank and System Fuses
Crankcase Oil Level Check, Recommended Lubricants
Cooling System Check
Instrument Indicators Check
Brake Pedal Free Travel Check, Parking Brake Operation Check
Engine Air Cleaner Service
Hydraulic Sump Tank Level Check, Hydraulic Control Lever Operation Check
Tires Inspect
Clutch Pedal Free Travel Check
Release Bearing Lubricate
Power Steering Reservoir Level Check

## 100 Hour Lubrication & Preventive Maintenance Illustration

Transmission & Axle Adaptor Level Check, Fuel Tank and Lines Inspect
Engine Crankcase Drain & Refill, Crankcase Ventilation Inspect
Engine Oil Filter Change
Cooling System Inspect, Clean Radiator Fins
Fan and Generator Belt Adjustment
Brake Pedal Free Travel Check
Brake Pedal Free Travel Adjust, Master Cylinder Level Check
Lift and Tilt Cylinders Inspect, Lift Chains Check and Adjust
Visually Inspect All Wiring and Hydraulic Piping
All Miscellaneous Linkage
Hydraulic Sump Tank Breather Inspect or Replace
Steering Gear Verify Lubricant Level, Battery Inspect
Clutch Pedal Free Travel Adjust
Lubrication Charts

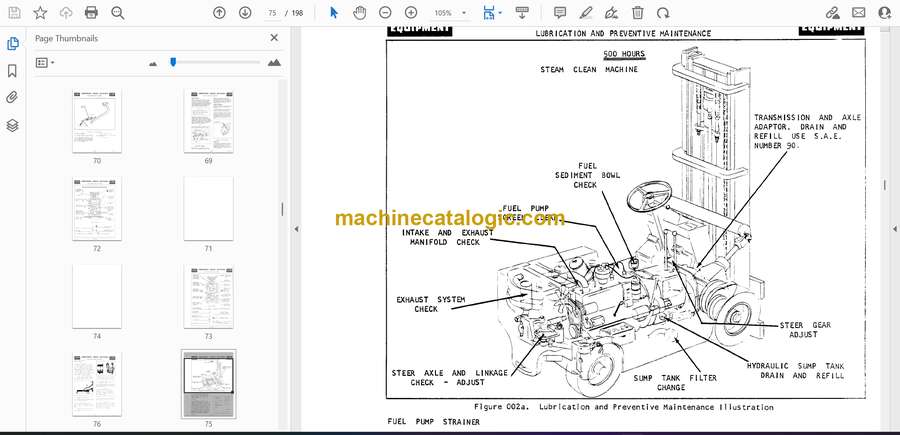

## 500 Hour Lubrication & Preventive Maintenance Illustration

Fuel Pump Strainer Clean, Fuel Pump Operation Check
Hydraulic Sump Tank Drain & Refill, Hydraulic Sump Tank Oil Filter Change
Steering Gear Adjust
Steering Axle and Linkage Adjust (Less Power Steering – White Paper)
(Power Steering Equipped – Orange Paper)
Manifolds Check Security of Mounting, Nuts, Bolts and Cap Screws Check
