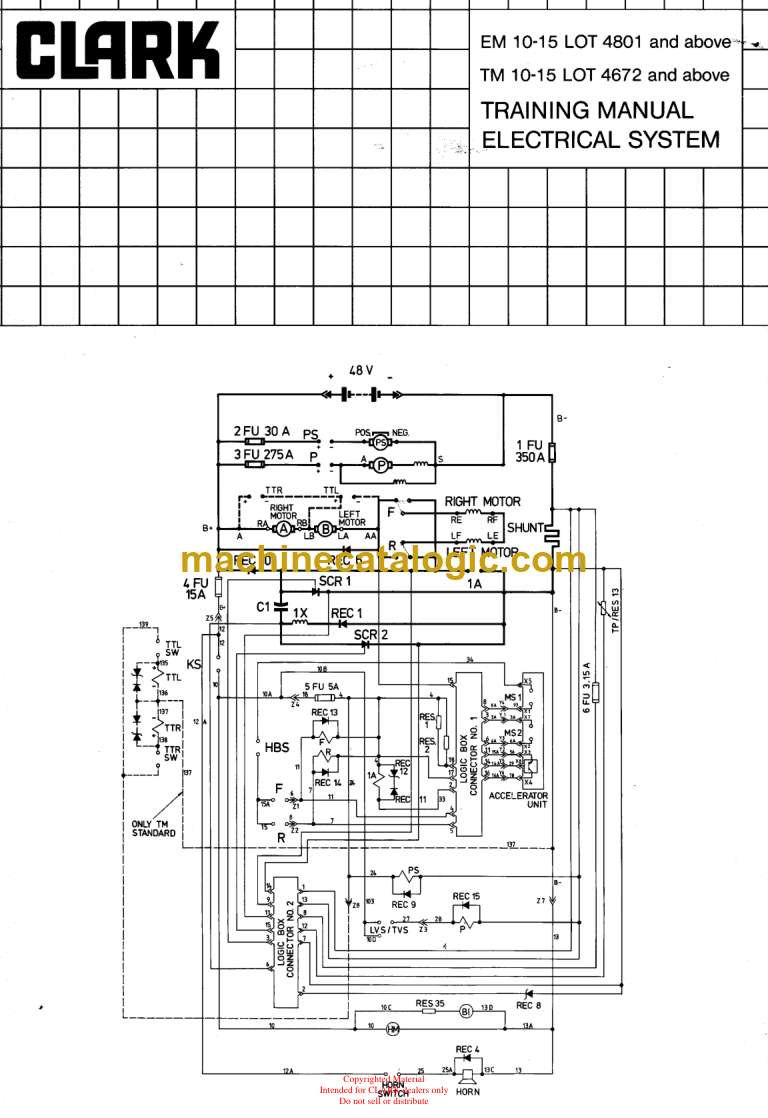

Clark EM10-15 LOT and TM10-15 LOT Training Manual Electrical System (E5107)

Clark EM10-15 LOT and TM10-15 LOT Index:

Step 1 : Initial power supply when battery is connected
Step 2 : Power supplied when key switch is turned on I
Step 3 : Power supplied when key switch is turned on II
Step 4 : Pick up of the direction contactors
Step 5 : Commutation I + II + III
Step 6 : Mark space ratio
Step 7 : Flywheel
Step 8 : Current limit
Step 9 : 1A contactor operation
Step 10 : Controlled plugging I + II
Step 11 : Suppression diodes
Step 12 : Turning off the inner drive motor
