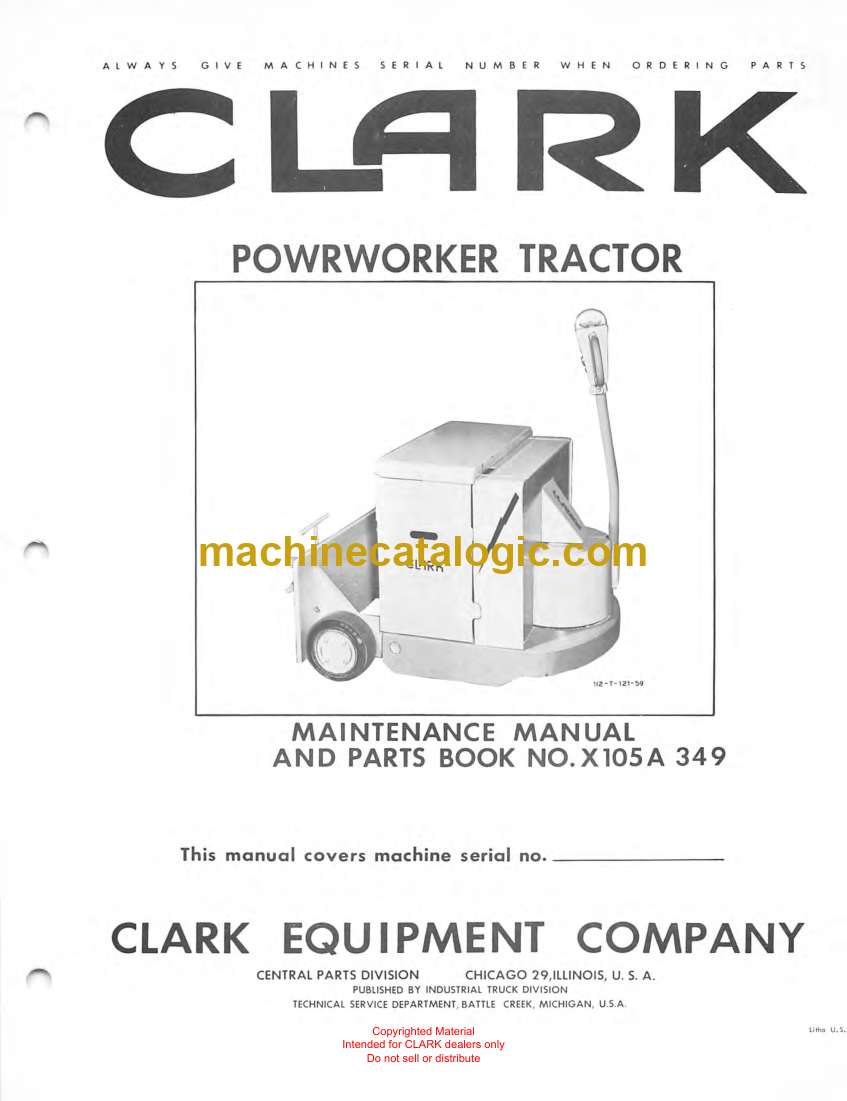

Clark Powrworker Tractor Parts Manual (X105A)

This Clark Powrworker Tractor Parts Manual for the X105A is what I’d keep on the bench when working on a warehouse or loading-dock unit that’s moving pallets all day in tight aisles. The tractor itself does the grunt work of towing and positioning loads; this book helps you name and confirm exactly which bits you’re staring at once the covers are off. Say you’ve got a drive issue and you’re tearing down around the axle shaft and brake linkage—this manual lets you trace each component, match it to the correct Clark part number, and avoid ordering the wrong contactor panel, connector, or terminal block.

Applications & Use Cases

• Match axle, brake, and linkage components to the correct part numbers before placing an order.
• Trace wiring paths from battery receptacle to contactor panel and identify the right connectors and blocks.
• Verify small hardware and subcomponents during teardown so you don’t mix up similar-looking pieces.
• Cross-check old or painted-over part tags against the illustrated listings to confirm what you’re replacing.
• Print specific pages to keep at the truck while you inspect, test, and reassemble the drive end.

FAQ

Q: Can I use this on a tablet or phone at the machine?

A: Yes, it’s practical to keep it open on a device so you can zoom in on diagrams while you trace parts on the tractor.

Q: Is it worth printing sections of this manual?

A: Many techs print only the pages for the area they’re working on, then mark notes and part numbers directly on those sheets.

Safety Note

Always isolate power and secure the tractor against movement before inspecting or removing any components.

Clark Powrworker Tractor Index:

Axle Shaft, Drive….
Battery Receptacle..
Block, Terminal Connection.
Brake and Linkage…
Connector
Contactor Panel
Contactor panel Box…
Cover , Compartment..
Dead Han Swi
Decals and Name Plates.
Diagrn, Wiring…. • •
Di rectlonal Control Switch.
Drive Assnbly
Drive Motor.
Drive Brake…
Drive Pinion….
Drive Wheel and Tire…
Electrical
Handle,
Horn Button…
Ignition Swi

Linkage, Brake
Name Plates and Decals..
Receptacle, Battery
Res i stor.
Steering Handle
Swi tch, Directional Control
Swi tch, Drive Hotor……….
Swi tch, Ignition
Swi tch, Motor Brake.
Wiring, Electrical….
Wiring Diagram
