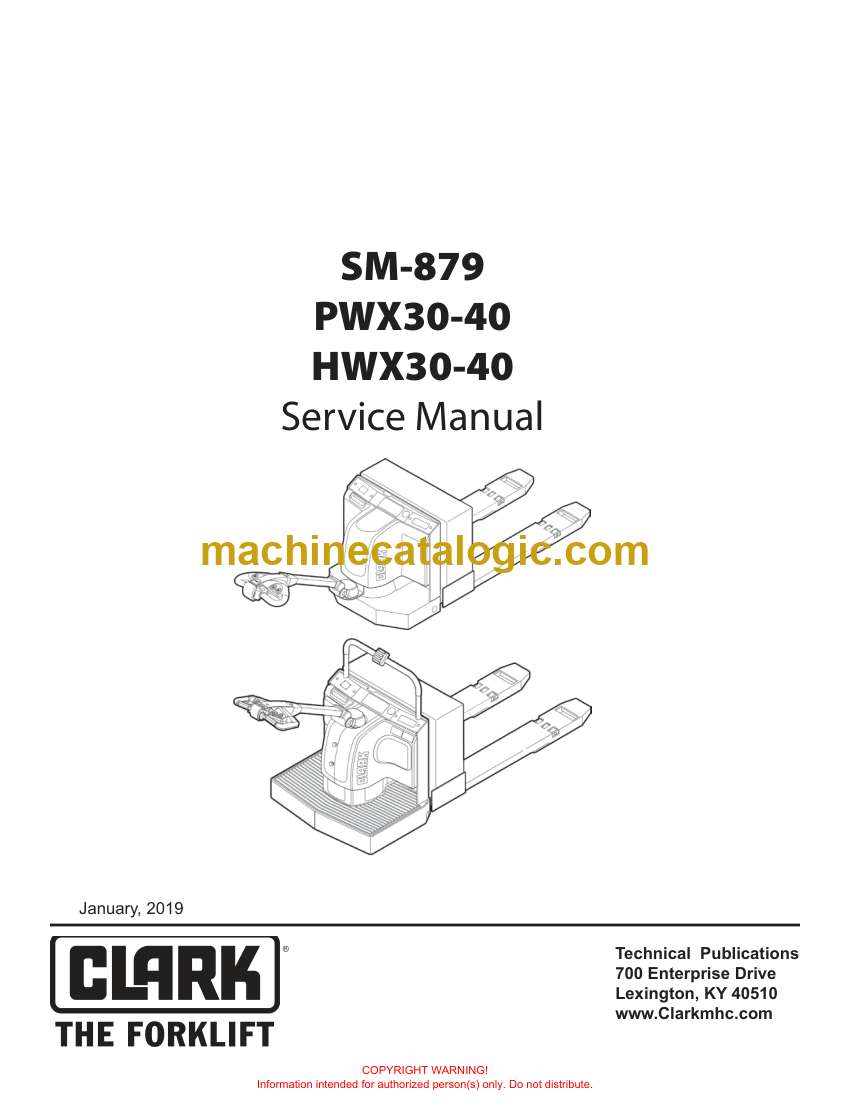

Clark PWX30-40, HWX30-40 Pallet Truck Service Manual (SM879)

These Clark PWX30-40 and HWX30-40 pallet trucks live in tight warehouse aisles, loading docks, and trailers all day, so when they act up you need a clear path to the fault, not guesswork. This service manual is what I’d pull when I have an intermittent no-travel complaint or weak lift under load and need to trace whether it’s battery, wiring, controls, or motor. It walks you through a logical approach so you can inspect, test, and reassemble the truck correctly instead of just swapping parts.

Applications & Use Cases

• Chasing no-lift or weak-lift issues by checking battery condition, wiring integrity, and motor operation in a structured order.
• Tracking down intermittent travel faults by following the diagrams to isolate bad connections, switches, or contactors.
• Guiding safe disassembly and reassembly of motors and control components so everything goes back aligned and sealed.
• Planning periodic service so you don’t miss key inspection points that prevent costly breakdowns.
• Verifying wiring changes or repairs against the proper diagrams before you power the truck back up.

FAQ

Q: Can I use this on a laptop or tablet in the shop?

A: Yes, it’s practical to keep it open on a device so you can zoom in on wiring and follow steps right at the truck.

Q: Is this worth printing, or should I keep it digital only?

A: Many techs print the key diagrams and procedures they use most, then keep the full manual digital for quick searching.

Safety Note

Always de-energize, chock, and secure the pallet truck before opening covers or working on electrical or hydraulic components.

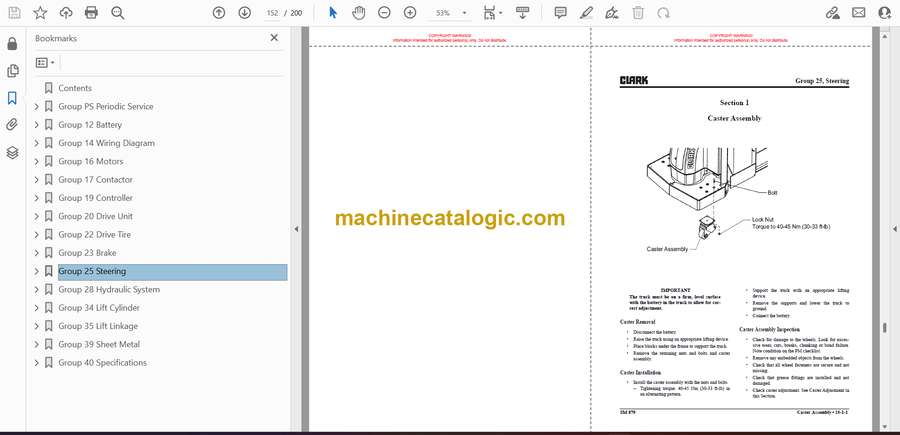

Clark PWX30-40, HWX30-40 Pallet Truck Index:

Group PS Periodic Service
Group 12 Battery
Group 14 Wiring Diagram
Group 16 Motors
Group 17 Contactor
Group 19 Controller
Group 20 Drive Unit
Group 22 Drive Tire
Group 23 Brake
Group 25 Steering
Group 28 Hydraulic System
Group 34 Lift Cylinder
Group 35 Lift Linkage
Group 39 Sheet Metal
Group 40 Specifications
