Clark WP45 Pallet Truck Operators Manual (OM-698)

On a WP45 pallet truck, you’re usually shuttling loaded pallets in warehouses, loading docks, and tight trailers all day long. This operators manual is what I’d keep handy to make sure the truck is started, driven, and shut down the right way so we don’t cook the drive motor, wreck the hydraulics, or damage the mast. If an operator reports that the truck won’t move after startup, or the tiller controls feel “dead,” I’d use this book to walk them through the basic checks and proper control sequence before I ever grab a wrench.

Applications & Use Cases

Train new operators on correct control use, travel direction, and braking habits so they don’t slam loads or abuse the drive unit.
Verify daily inspections—wheels, forks, leaks, and safety devices—so problems are caught before a shift, not mid-load.
Confirm proper startup/shutdown steps to avoid faulting the electronics or leaving the truck in an unsafe state.
Trace simple operating issues, like no lift or no travel, back to incorrect control positioning or missed safety interlocks.
Standardize safe habits when working on ramps, inside trailers, or in crowded aisles.

FAQ

Q: Can I keep this manual on my phone for quick checks on the dock?

A: Yes, it’s practical to use a digital copy; just zoom in on the control diagrams and keep the screen clean and dry.

Q: Is it worth printing parts of this for the break room or charging area?

A: Definitely—printing the startup, shutdown, and daily check pages gives operators a quick reference before each shift.

Safety Note

Always follow the manual’s procedures step by step before moving a loaded pallet, especially in tight or sloped areas.

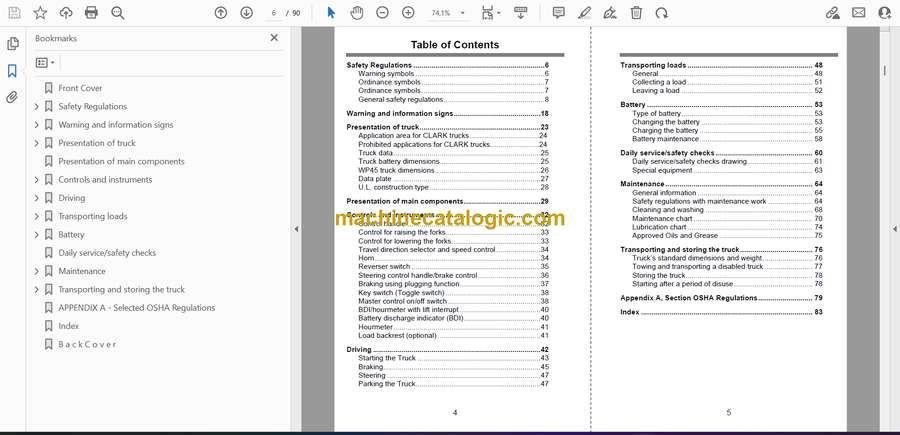

Clark WP45 Pallet Truck Index:

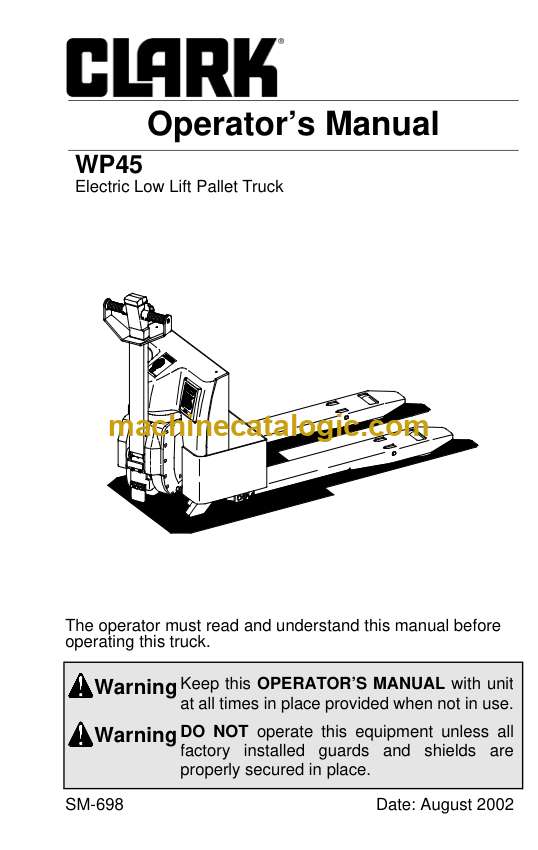

Front Cover
Safety Regulations
Warning and information signs
Presentation of truck
Presentation of main components
Controls and instruments
Driving
Transporting loads
Battery
Daily service/safety checks
Maintenance
Transporting and storing the truck
APPENDIX A – Selected OSHA Regulations
Index
