Clark WSTX 30-35 Stacker Service Manual (SM1208)

These Clark WSTX 30-35 stackers spend their days loading pallets in tight warehouse aisles, on docks, and in staging areas, so when something’s off, you feel it right away in lost throughput. This service manual is what I’d pull when I need to trace a lift, travel, or steering issue methodically instead of guessing. For example, if the mast won’t raise under load or the truck creeps when “stopped,” this book walks you through how to inspect the related systems, test components correctly, and rebuild or adjust things so the stacker goes back to working safely and predictably.

Applications & Use Cases

• Diagnose hydraulic problems such as weak lift, mast drift, or uneven lowering by following step-by-step checks.
• Isolate electrical faults in controls, switches, and safety circuits before you start swapping parts.
• Disassemble and reassemble key components like mast sections, chains, and drive units in the right order so nothing gets forced or misaligned.
• Verify adjustments on brakes, steering, and lift mechanisms after repairs to keep the truck tracking straight and stopping consistently.
• Plan preventive maintenance so you can inspect, clean, lubricate, and test systems on a sensible schedule.

FAQ

Q: Can I use this on a tablet in the shop?

A: Yes, it’s practical to keep it open on a tablet or laptop so you can zoom diagrams and search terms while working on the truck.

Q: Is it worth printing parts of this manual?

A: Many techs print the key procedures and wiring or hydraulic diagrams they use often, then keep them in plastic sleeves near the workbench.

Safety Note

Always lock out power, secure the mast, and support any raised components before you start loosening or removing parts.

Clark WSTX 30-35 Stacker Index:

SM-1208
Table of Contents
Foreword
Section 1 – Information & Specifications
Section 2 – Maintenance
Section 3 – Struture & Functions
Section 4 – Chassis System
Section 5 – Drive System
Section 6 – Operating System

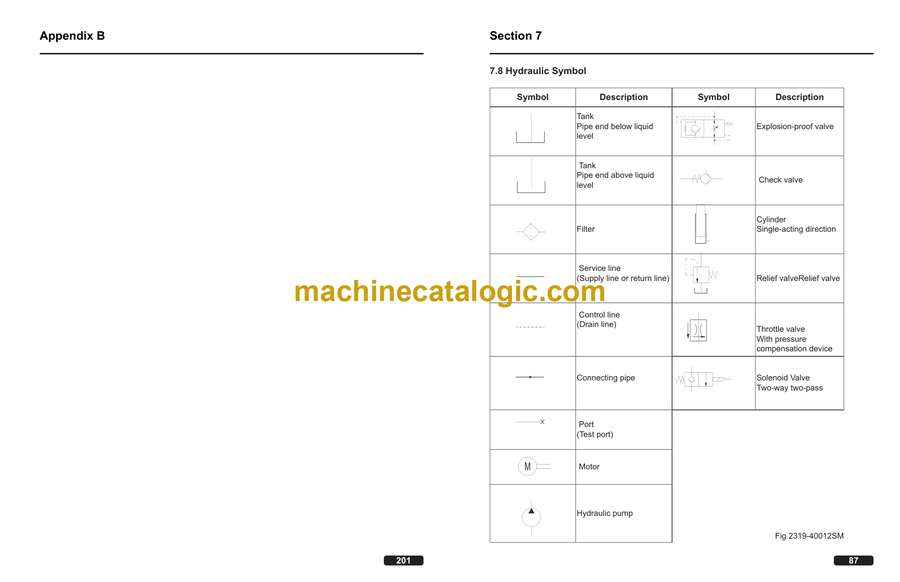

Section 7 – Hydraulic System
Section 8 – Electrical System
Section 9 – Troubleshooting

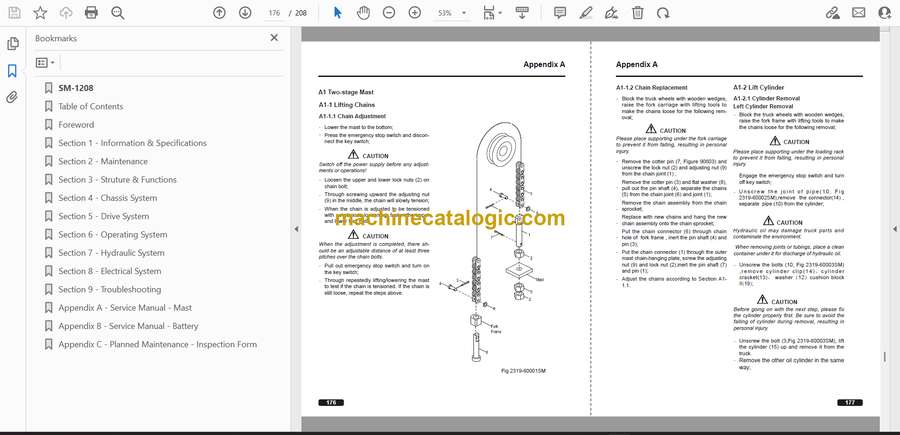

Appendix A – Service Manual – Mast
Appendix B – Service Manual – Battery
Appendix C – Planned Maintenance – Inspection Form
