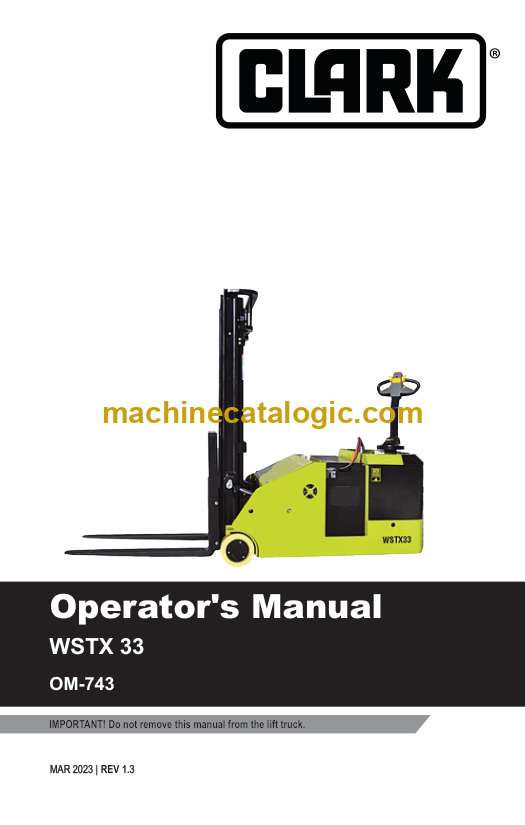

Clark WSTX33 Staker Operators Manual (OM-743)

This Clark WSTX33 staker is built for tight warehouse aisles, docks, and loading areas where you’re constantly lifting, placing, and shuttling pallets. This operator’s manual is what I keep handy to make sure the truck is started, used, and shut down the right way every time. It walks you through what to check before you move, how to use the controls without abusing the hydraulics, and how to recognize warning signs early. If, for example, the truck won’t travel after you turn the key or the mast feels jumpy on lift, this is the first reference I’d use to verify correct operating steps before assuming there’s a mechanical failure.

Applications & Use Cases

• Train new operators so they don’t ride the controls or bypass safety features and damage the drive unit or mast.
• Verify daily inspections—wheels, forks, guards, and controls—before a shift so problems are caught before they get expensive.
• Confirm proper startup and shutdown sequences to avoid low-voltage abuse and contactor damage.
• Trace basic operating faults (no lift, no travel, warning lights) back to missed steps or unsafe habits.
• Reinforce safe load handling so pallets are raised, tilted, and stacked without overstressing the mast or tipping the truck.

FAQ

Q: Can I keep this manual on my phone or tablet in the warehouse?

A: Yes, it’s practical to store a digital copy so you can zoom in on control diagrams and search terms while you’re standing at the truck.

Q: Is it worth printing parts of this manual?

A: I’d print the startup, shutdown, and daily inspection pages, laminate them, and hang them near the charging area or time clock for quick operator reference.

Safety Note

Always follow the manual’s operating steps in order—skipping checks or safety interlocks is how trucks, loads, and people get hurt.

Clark WSTX33 Staker Index:

A Message to CLARK Lift Truck Operators
Introduction………………………………………………………….vi
How to Use this Manual …………………………………..viii
Safety Signs and Safety Messages
Section 1. General Safety Rules

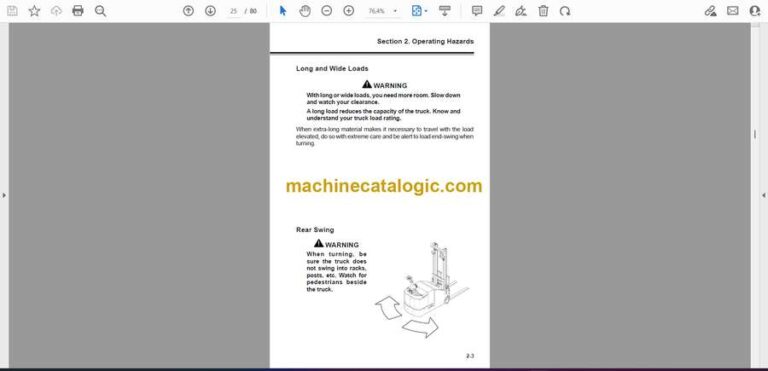

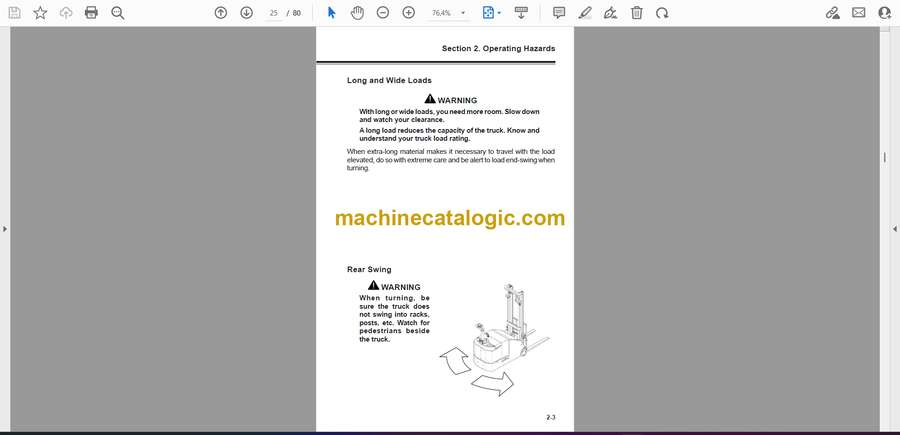

Section 2. Operating Hazards
Section 3. Common Truck……………………………………3-1
Section 4. Operator Maintenance and Care

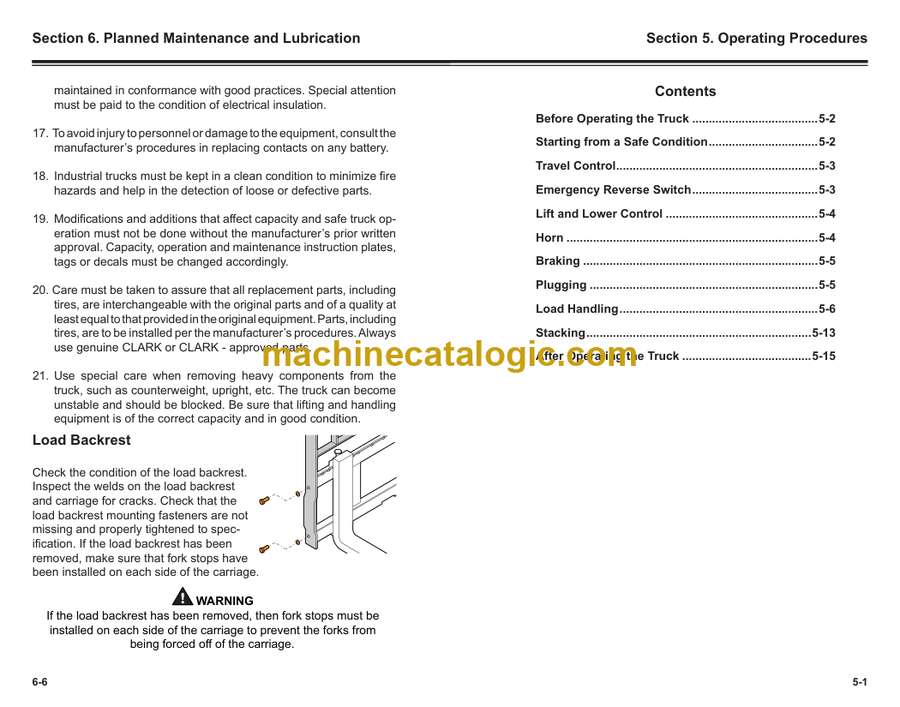

Section 5. Operating Procedures…………………………5-1
Section 6. Planned Maintenance………………………….6-1
Section 7. Towing……………………………………………….7-1
Section 8. Specifications ……………………………………8-1
