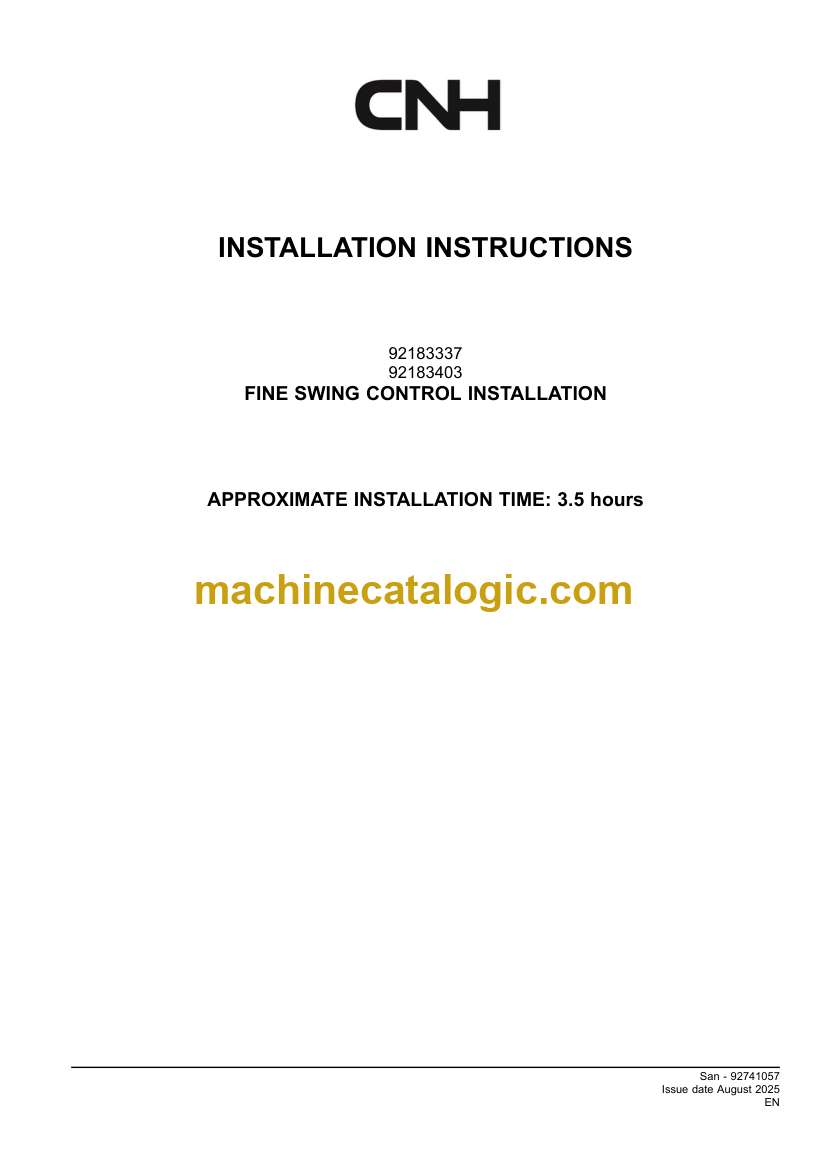

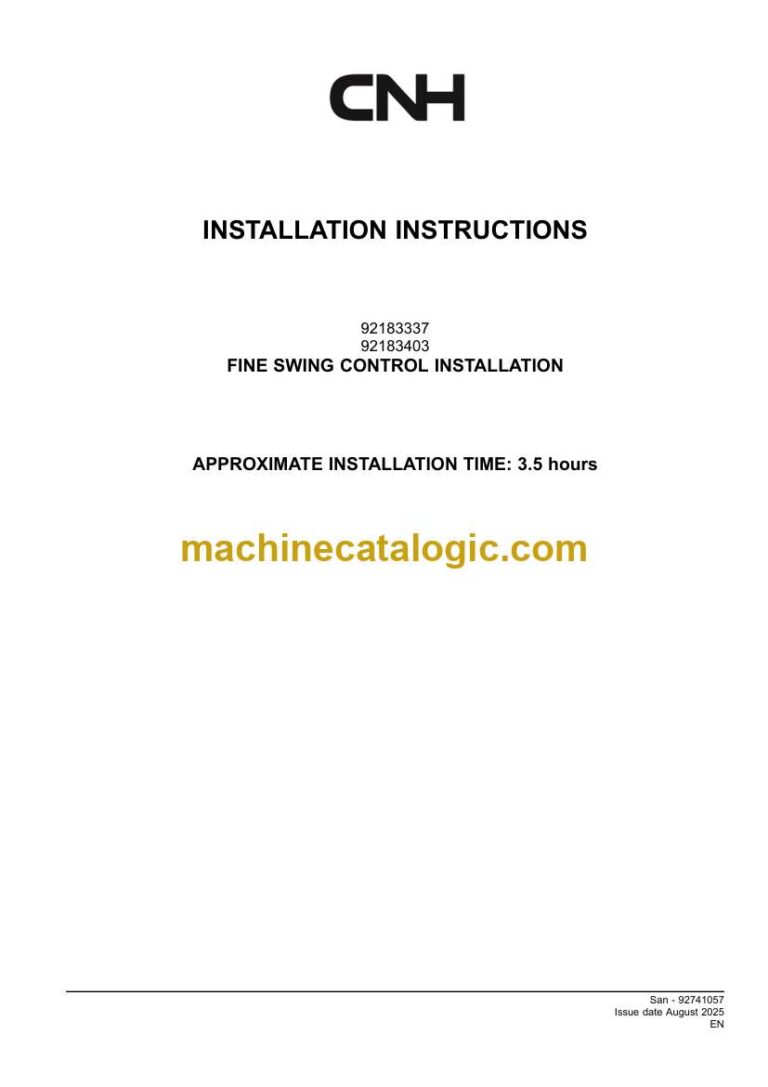

CNH FINE SWING CONTROL INSTALLATION Installation Instructions (92741057)

On most CNH excavators and similar rigs, this fine swing control kit is working in mud, dust, and tight jobsites where you’re swinging close to trucks, walls, or utilities. This manual walks you through how to install, route, and adjust the fine swing control so the upper structure doesn’t whip around and beat up your bucket or your crew. Say you’re loading trucks in a cramped yard: with this, you can trace the hydraulics, mount the valves, and dial the swing so it eases in and out instead of slamming.

Applications & Use Cases

• Trace existing hydraulic lines and route new hoses or tubes for the fine swing circuit without guessing where they tie in.
• Check mounting points, then verify bracket alignment so the control components sit solid and don’t vibrate loose.
• Isolate the swing function, install the valve, then test and bleed the system so the swing feels smooth, not spongy or jerky.
• Inspect linkage and controls, then align settings so the operator can feather the swing, especially around obstacles.
• Use it to troubleshoot after install when the swing doesn’t behave right—step through and verify each connection.

FAQ

Q: Is this a PDF I can search on my laptop or phone?

A: It’s typically a PDF, so you can keyword search, zoom in on diagrams, and keep it handy in the cab.

Q: Can I print just the pages I need for the jobsite?

A: Yeah, you can usually print sections, throw them in a binder, and keep the greasy hands off your phone.

Safety Note

Always depressurize and lock out the hydraulic system before you crack any line or fitting for this installation.

CNH FINE SWING CONTROL INSTALLATION Index:

1 SAFETY INFORMATION
Basic instructions – Important notice regarding equipment servicing. . . . . . . . . . . . . . . . . . . . . . . 1-1
Safety rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 KIT CONTENT
Kit content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
3 GENERAL INFORMATION
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
4 PRE-ASSEMBLY
PREPARING FOR ASSEMBLY
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

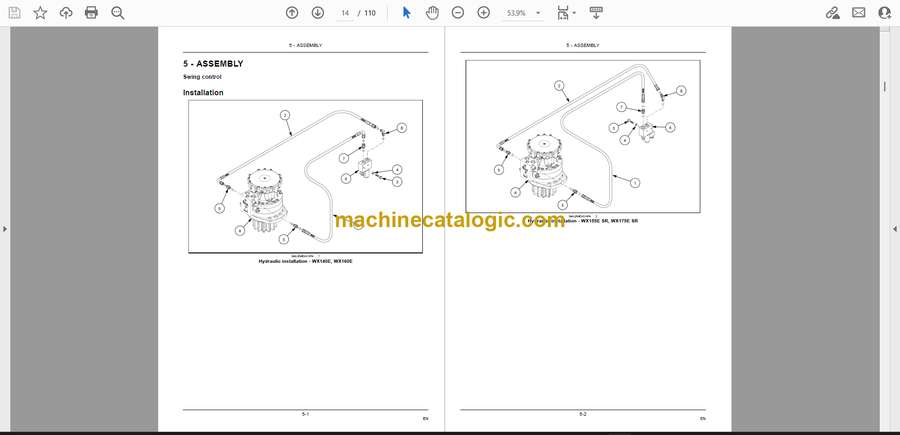

5 ASSEMBLY
Swing control
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
6 POST-ASSEMBLY
FINAL-CHECK
Final check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

CNH

92183337 – FINE SWING CONTROL INSTALLATION
CASE CONSTRUCTION
WX140E
WX160E
92183403 – FINE SWING CONTROL INSTALLATION
CASE CONSTRUCTION
WX155E SR
WX175E SR
