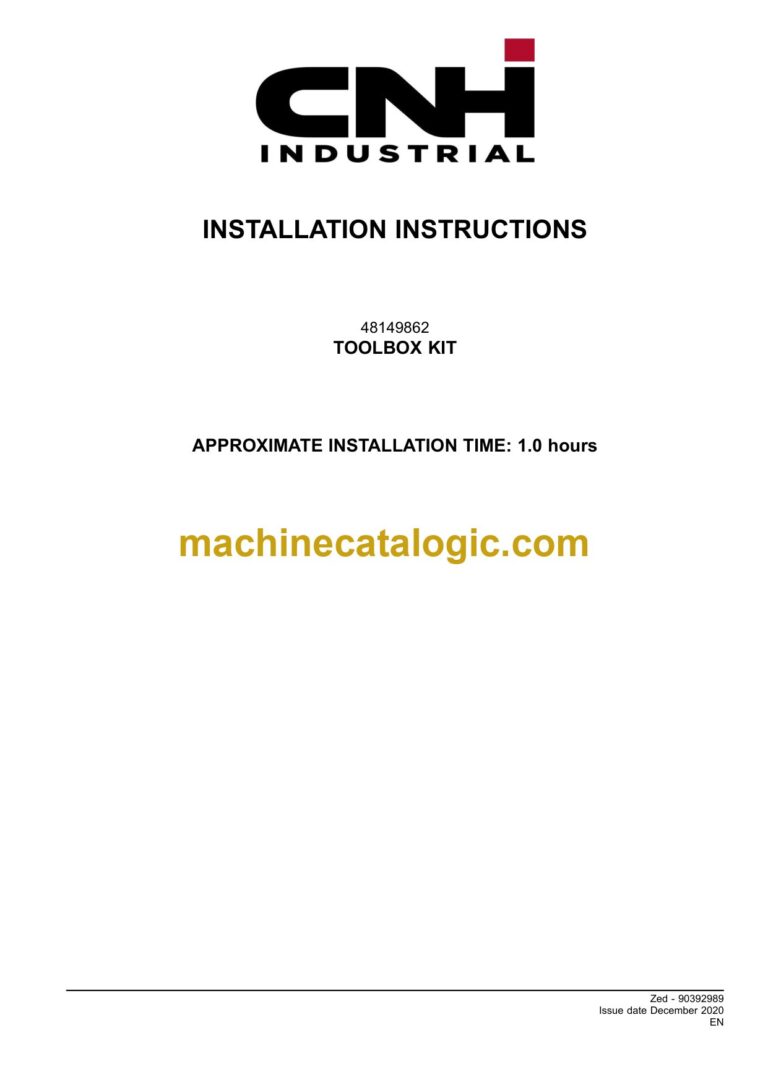

CNH Toolbox Kit İnstallation Instructions

Out in the field these CNH machines live on jobsites, in barns, and around construction yards, so tools need to be close and mounted solid. This Toolbox Kit Installation Instructions manual walks you through how to bolt the factory kit on correctly, so the box doesn’t rattle loose or crack a guard later. When you’re fitting a new toolbox after other repairs or replacing a damaged one, this is what you’d use to identify each bracket, support, and fastener and install them in the right order.

Applications & Use Cases

• Identify each kit piece (support, guard, toolbox, bracket, pins, washers) so you don’t mix hardware or reuse the wrong bolts.
• Trace mounting points on the chassis or cab area and verify you’re drilling or aligning only where the kit is designed to sit.
• Align and secure the toolbox so the lid opens fully, clears guards, and doesn’t interfere with steps, doors, or handrails.
• Inspect and re-torque the mounting after repairs or repainting, using the manual to confirm everything is routed back as intended.
• Confirm decal placement so operators clearly see load, use, or safety markings related to the toolbox area.

FAQ

Q: Can I keep this manual on a tablet in the shop or cab?

A: Yes, it’s practical to use digitally so you can zoom in on the kit index and hardware details while you work.

Q: Should I print this out before starting the install?

A: Printing a copy helps; you can mark off parts as you use them and keep it next to the machine for quick reference.

Safety Note

Always support the machine and work area securely before drilling, lifting, or tightening around the toolbox mounting points.

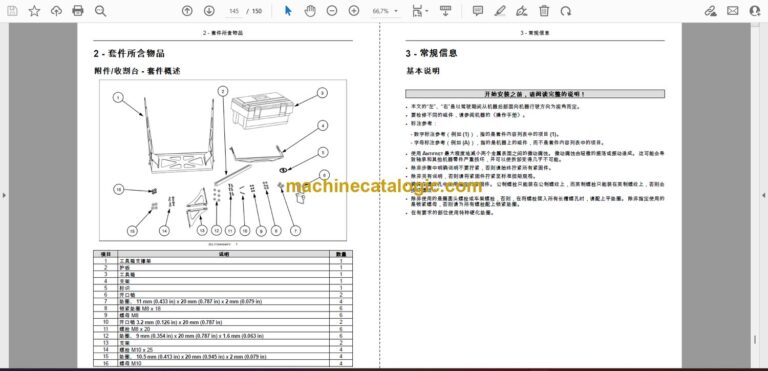

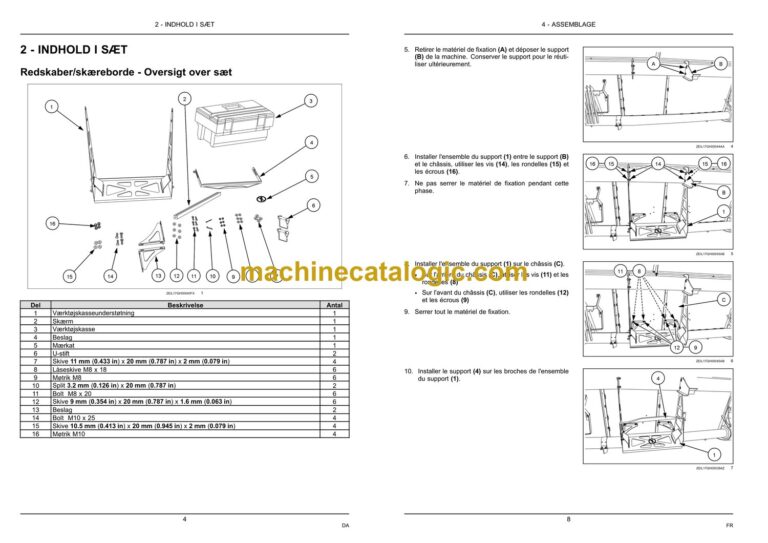

CNH Toolbox Kit Index:

Item Description Quantity
1 Toolbox support 1
2 Guard 1
3 Toolbox 1
4 Bracket 1
5 Decal 1
6 U-pin 2
7 Washer 11 mm (0.433 in) x 20 mm (0.787 in) x 2 mm (0.079 in) 4
8 Lock washer M8 x 18 6
9 Nut M8 6
10 Cotter pin 3.2 mm (0.126 in) x 20 mm (0.787 in) 2
11 Bolt M8 x 20 6
12 Washer 9 mm (0.354 in) x 20 mm (0.787 in) x 1.6 mm (0.063 in) 6
13 Bracket 2
14 Bolt M10 x 25 4
15 Washer 10.5 mm (0.413 in) x 20 mm (0.945 in) x 2 mm (0.079 in) 4
16 Nut M10 4

CNH

48149862 – TOOLBOX KIT
CASE IH
3050 30FT 3000 VARIFEED G
3050 3050 Heavy-duty Varifeed™ grain
header 9.1 m (30 ft) [8190 – ]
3050 35FT 3000 VARIFEED G
3050 3050 Heavy-duty Varifeed™ grain
header 10.7 m (35 ft) [8190 – ]
3050 25FT 3000 LW VARIFEE
3050 3050 Heavy-duty Varifeed™ grain
header 7.6 m (25 ft) [8190 – ]
3050 40FT 3000 VARIFEED G
3050 3050 Heavy-duty Varifeed™ grain
header 12.5 m (41 ft) [8190 – ]
3050 28 ft VariCut header
3050 3050 Heavy-duty Varifeed™ grain
header 8.5 m (28 ft) [8190 – ]
NEW HOLLAND
760CG 30FT VARIFEED G
760CG Heavy-duty Varifeed™ grain header
9.1 m (30 ft) [8190 – ]
760CG 35FT VARIFEED G
760CG Heavy-duty Varifeed™ grain header
10.7 m (35 ft) [8190 – ]
760CG 25FT 800C LW VARIFEE
760CG Heavy-duty Varifeed™ grain header
7.6 m (25 ft) [8190 – ]
760CG 40FT VARIFEED G
760CG Heavy-duty Varifeed™ grain header
12.5 m (41 ft) [8190 – ]
760CG 28 ft Varifeed™ header
760CG Heavy-duty Varifeed™ grain header
8.5 m (28 ft) [8190 – ]
