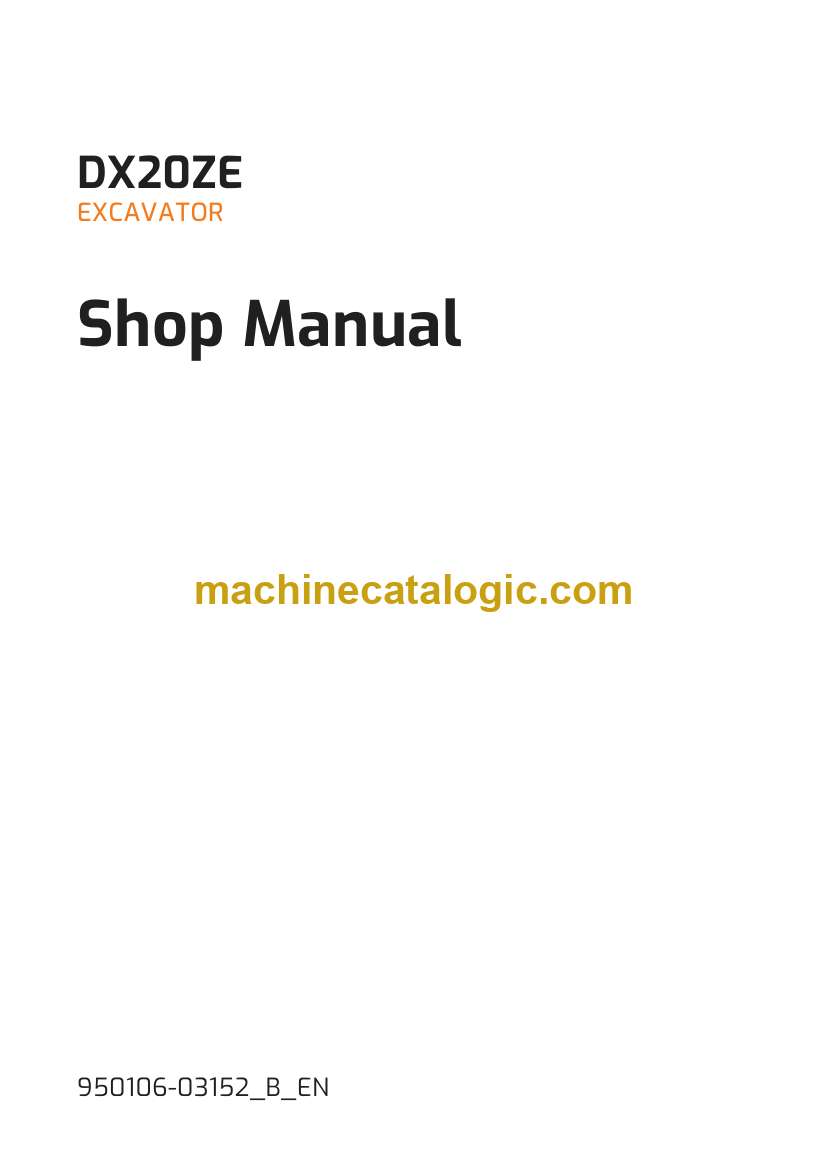

Develon DX20ZE Mini Excavator Shop Manual (950106-03152_B_EN)

Out on small sites, driveways, and tight backyards, the DX20ZE is usually doing trench work, service lines, and cleanup where you can’t fit a big machine. This shop manual helps you plan and carry out major teardowns without guessing—stuff like pulling the house apart, stripping the boom, or opening up final drives, then getting it all back together straight. Say you’ve got slop in the swing and you decide to trace it down to the bearing stack; this book walks you through how to strip, inspect, shim, and reassemble so you don’t chase the same problem twice.

Applications & Use Cases

• Plan your teardown so you route hoses, harnesses, and lines in a way you can actually put back the same day.
• Isolate a hydraulic issue, then inspect cylinders, valves, and motors while they’re off the machine instead of tearing it down twice.
• Follow general torque sequences so you don’t warp housings or crush seals when you button up swing gear, travel motors, or boom feet.
• Check wear surfaces, pins, bushings, and shims with the parts on the bench, then align everything on reassembly.
• Test and bleed systems after a big job so you can verify pressures and movements before it leaves the shop.

FAQ

Q: Is this a PDF I can search on my laptop or phone?

A: Yes, it’s typically a searchable PDF, so you can jump to sections or keywords instead of flipping pages.

Q: Can I print just the sections I need for a job?

A: Usually, yes—most folks print the teardown and torque pages, stick them in a sleeve, and keep them right at the machine.

Safety Note

Always support the upperstructure and attachments with rated stands and blocking before you crawl in to inspect or loosen anything structural.
