Develon DX25Z-7 Mini Excavator Shop Manual

These DX25Z-7 minis usually live on tight jobsites—driveways, utility trenches, landscaping, inside buildings where bigger iron can’t squeeze in. This shop manual’s what you want when you’re tearing deeper than filters and grease points: planning the teardown, knowing where to measure wear, how to route hoses back correctly, and what order to torque things so they seat right. Say you’ve got sloppy bucket swing and a leak at the boom base; this manual helps you trace the problem, strip the boom and swing gear, inspect pins and bushings, then reassemble without leaving a shim out or misaligning the swing motor.

Applications & Use Cases

• Strip and rebuild boom, arm, and bucket linkages, then verify pin fit and bushing alignment before you grease and send it back out.
• Plan a hydraulic pump or main valve teardown: isolate circuits, test pressures, then align and torque components during reassembly so you don’t chase new leaks.
• Check undercarriage and swing gear wear with the machine apart, inspect bearings and seals, and route lines so they won’t rub through later.
• Use the torque sequences to rebuild cylinders, bleed the system properly, and verify there’s no air or side-load on the rod when you button it up.
• Print key sections for the bench so you can trace wiring, test sensors, and confirm harness routing while the panels are off.

FAQ

Q: Is this a PDF I can search on my laptop or phone?

A: Yes, it’s typically a searchable PDF, so you can jump to sections by keyword while you’re in the bay or truck.

Q: Can I print just the pages I need for a job?

A: You usually can; most techs print the torque charts and diagrams, stick them by the machine, then toss them once the repair’s verified.

Safety Note

Always support the upper structure and attachments with rated stands or blocking before you crawl under or loosen any load-bearing pins or bolts.

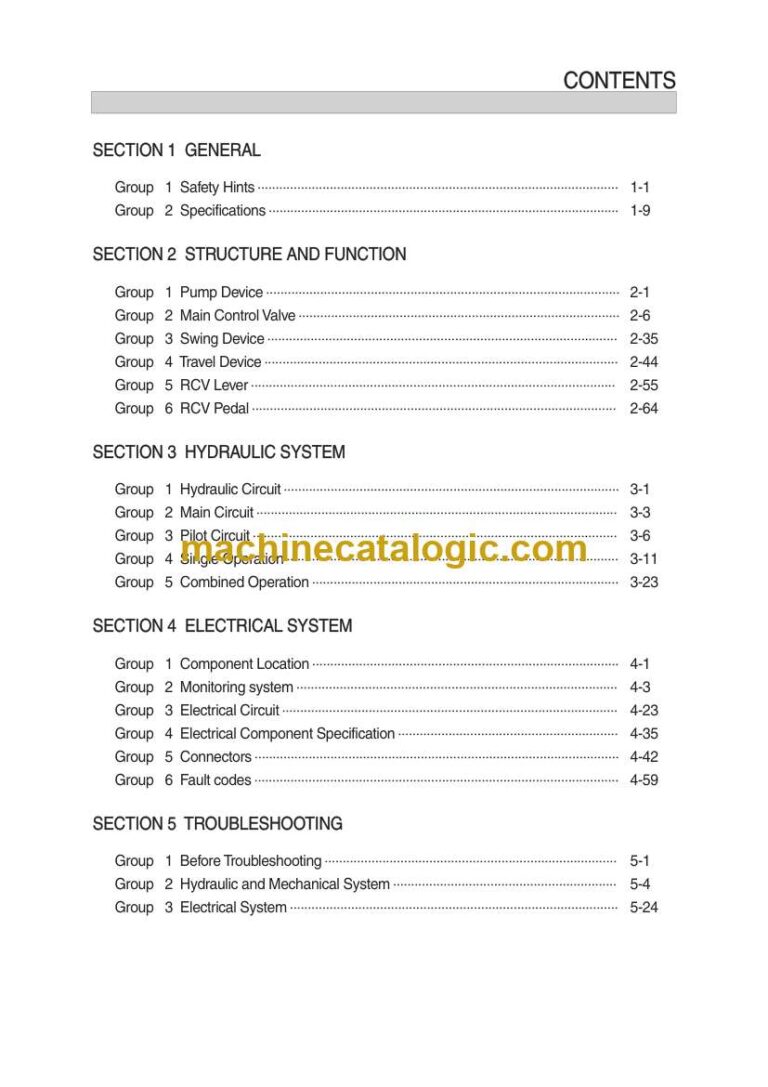

Develon DX25Z-7 Mini Excavator Index:

• CONTENTS
• FOREWORD
• GENERAL
  • 1. SAFETY HINTS
  • 2. SPECIFICATIONS
• STRUCTURE AND FUNCTION
  • 1. PUMP DEVICE
  • 2. MAIN CONTROL VALVE
  • 3. SWING DEVICE
  • 4. TRAVEL DEVICE
  • 5. RCV LEVER
  • 6. RCV PEDAL
• HYDRAULIC SYSTEM
  • 1. HYDRAULIC CIRCUIT
  • 2. MAIN CIRCUIT
  • 3. PILOT CIRCUIT
  • 4. SINGLE OPERATION
  • 5. COMBINED OPERATION
• ELECTRICAL SYSTEM
  • 1. COMPONENT LOCATION
  • 2. MONITORING SYSTEM
  • 3. ELECTRICAL CIRCUIT
  • 4. ELECTRICAL COMPONENT SPECIFICATION
  • 5. CONNECTORS
  • 6. FAULT CODE
• TROUBLESHOOTING
  • 1. BEFORE TROUBLESHOOTING
  • 2. HYDRAULIC AND MECHANICAL SYSTEM
  • 3. ELECTRICAL SYSTEM
• MAINTENANCE STANDARD
  • 1. OPERATIONAL PERFORMANCE TEST
  • 2. MAJOR COMPONENT
  • 3. TRACK AND WORK EQUIPMENT
• DISASSEMBLY AND ASSEMBLY
  • 1. PRECAUTIONS
  • 2. TIGHTENING TORQUE
  • 3. PUMP DEVICE
  • 4. MAIN CONTROL VALVE
  • 5. SWING DEVICE
  • 6. TRAVEL DEVICE
  • 7. RCV LEVER
  • 8. TURNING JOINT
  • 9. BOOM, ARM AND BUCKET CYLINDER
  • 10. UNDERCARRIAGE
  • 11. WORK EQUIPMENT

Develon
