Doosan D20S-3, D25S-3, D30S-3, D32S-3, D33S-3 Lift Trucks Parts Manual (EM090-00001~UPEM0GU-00001~UP)
Doosan D20S-3, D25S-3, D30S-3, D32S-3, D33S-3 Lift Trucks Index:
FILTERS
E/G OIL …………………………………………..65.05510-5021
FUEL ……………………………………………..65.12515-5008
TRANS……………………………………………………D140182
AIR ELEMENT(PRIMARY) ……………………………A213939
AIR ELEMENT(SECONDARY)……………………….A213938
HYDRAULIC(RETURN) ……………………………….D516975
HYDRAULIC(SUCTION) ………………………………D164457
COOLING
WATER PUMP ………………………………….65.06500-6114
WATER PUMP SEAL ………………………….65.06520-6006
FAN ……………………………………………………….A213831
FAN BELT ……………………………………….65.96801-0004
RADIATOR CAP………………………………………..D460972
THERMOSTAT ………………………………….65.06402-5003
THERMOSTAT PACKING …………………….65.06904-0001
BY PASS HOSE ………………………………..65.96301-0127
LOWER HOSE ………………………………………….D140154
UPPER HOSE …………………………………………..A213600

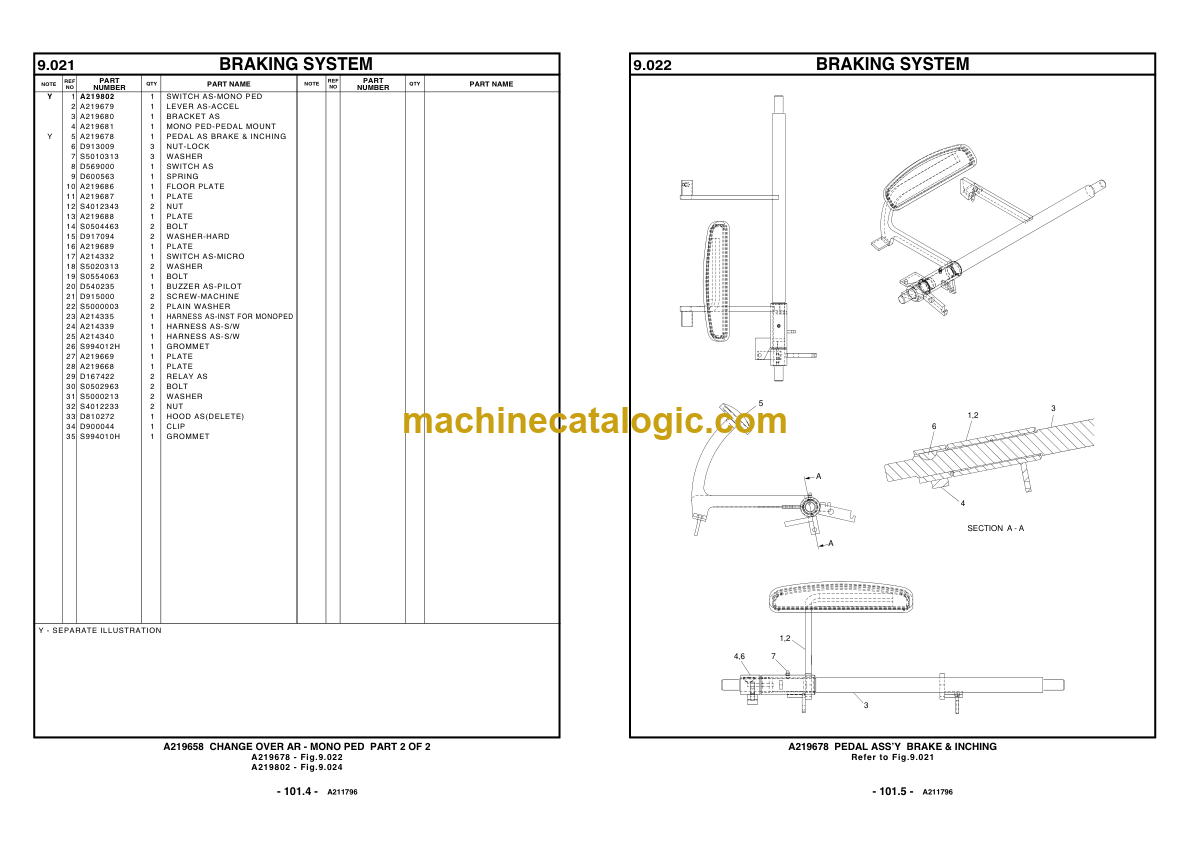

BRAKE
BRAKE VALVE ……………………..A215002(90-0001~3903)
………………………………………..A215224(90-3904~8703)
……………………………………….A215295(90-8704~10681)
…………………………………………A215296(90-10682~UP)
PARKING CABLE ………………………………………A211189
FRICTION DISC …………………………………….D141112(8)
PLATE – OUTER…………………………………..D700251(10)
OIL SEAL …………………………………………….D700305(2)
PEDAL PAD……………………………………………..D700175
TIRES
DRIVE ……………………………..2.0/2.5 TON ; 7.00X15X12
DRIVE …………………………3.0/3.2/3.3 TON ; 8.15X15X12
STEER ……………………………………………….6.50X10X10
CABLE
ACCEL ……………………………………………………A211398
HOOD CABLE LATCH…………………………………A211214
ELECTRICAL
STARTER ………………………………………..65.26201-7050
STARTER RELAY ……………………………………..D167422
ALTERNATOR ……………………..D700328(90-0001~0210)
…………………………………………..D167411(90-0211~UP)
BACK UP ALARM ………………………………………D287676
CIRCUIT BREAKER……………………………………D544024
F/R SWITCH …………………………………………….D147458
HORN …………………………………………………….D560080
HOUR METER ………………………………………….D147478
IGNITION SWITCH …………………………………….D147482
IGNITION SWITCH KEY………………………………A214062
E/G OIL PRESSURE SWITCH ………………65.26201-7050
WARTER TEMP SENDER…………………………….A124059
VOLTAGE REGULATOR ……………………………..D700331
TRANS MISSION TEMP SENSOR…………………D700261
STEERING
P/S CYLINDER KIT ……………….A144355(90-0001~0592)
………………………………………..D511419(90-0593~5217)
………………………………………..D511817(90-5218~6484)
…………………………………………..D511848(90-6485~UP)
……………………………………………………..(GU-0001~UP)
KING PIN …………………………………………….D700576(2)
KING PIN BOLT …………………………………..S0556663(2)
KING PIN LOCK NUT ……………………………..D913003(2)
ROLLER BEARING…………………………………D700579(4)
SEAL ………………………………………………….D700577(4)
SHIM ………………………………………………….D700574(2)
SHIM ………………………………………………….D700575(8)
SPACER ……………………………………………..D700572(4)
LINK(BEARING)…………………………………….D131093(4)
LINK PIN ……………………………………………..D700583(4)
LINK SEAL …………………………………………..D700584(8)
HYDRAULICS
TILT CYLINDER KIT …………………………………..D512805
LIFT CYLINDER KIT(STD) …………………………..D511159
LIFT CYLINDER KIT(SECONDARY, FFT) ………..D511208
LIFT CYLINDER KIT(SECONDARY, FFL) ………..D511213
LIFT CYLINDER KIT(FFL, FFT PRIMARY)
………………………………………..D511211(90-0001~7212)
…………………………………………..D511927(90-7213~UP)
……………………………………………………..(GU-0001~UP)
LIFT GP – QUAD(SECONDARY – LH) ……………..D512372
LIFT GP – QUAD(SECONDARY – RH)……………..D512373

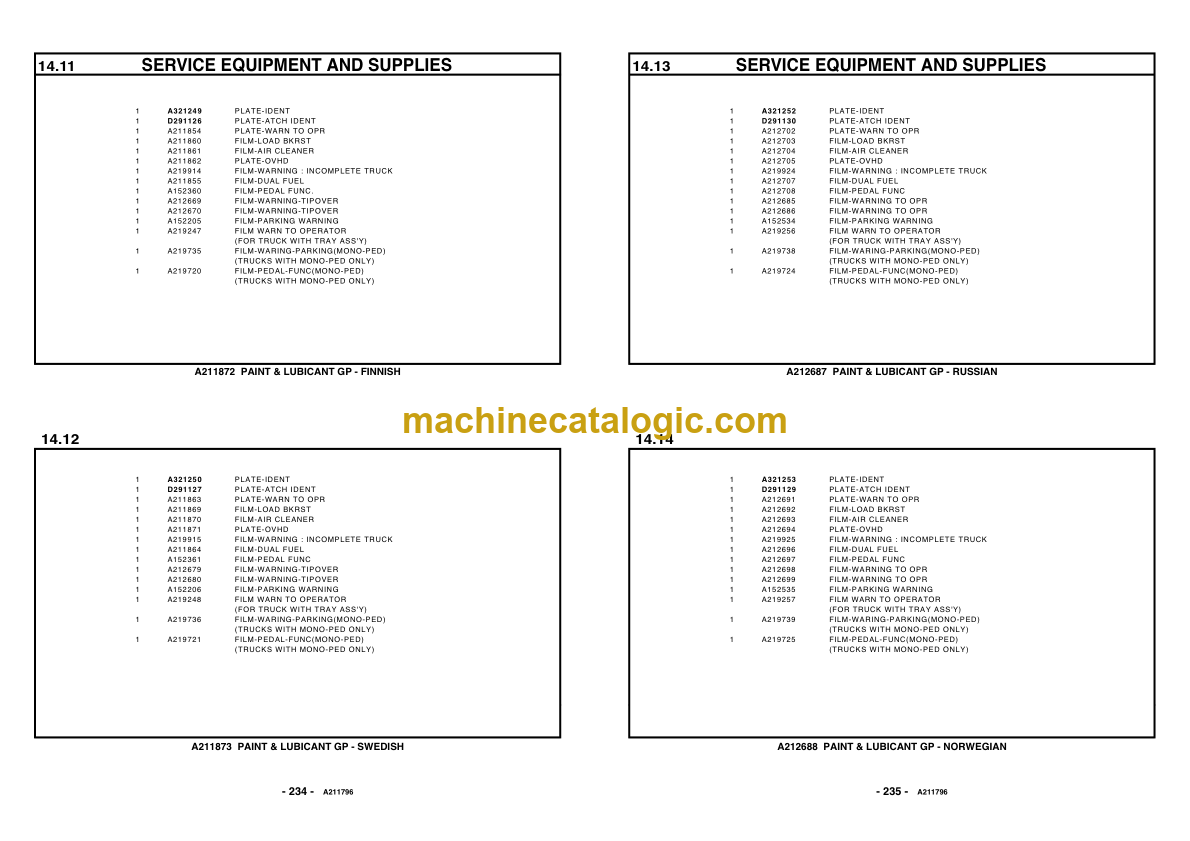

CATEGORY DESCRIPTION PART NO. FIG.

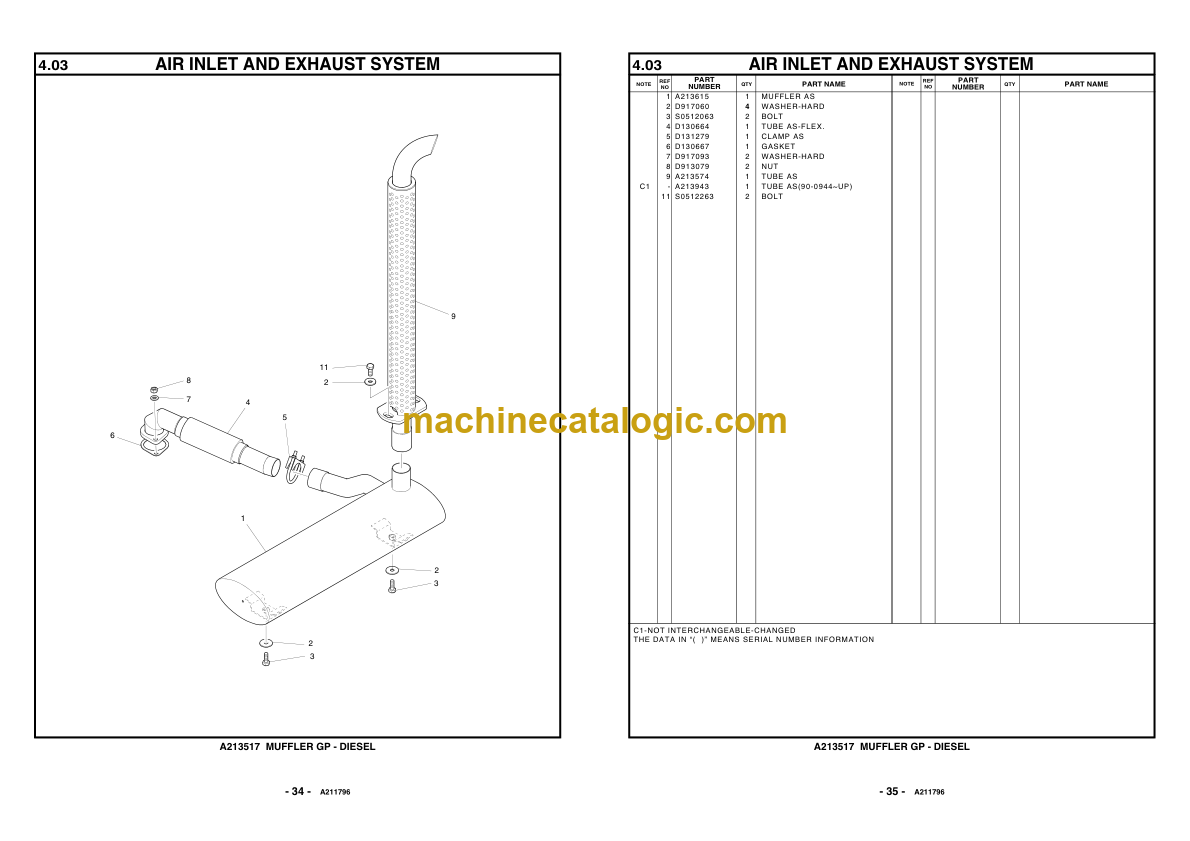

ENGINE AIR CLEANER FILTER
ELEMENT AS. – PRIMARY A213939 4.02
ELEMENT AS. – SAFETY A213938 4.02
BELT – FAN 65.96801-0004 1.11
FILTER – FUEL 65.12515-5008 1.10
FILTER – FUEL(TANK) D130064 5.02
FILTER – OIL 65.05510-5021 2.02
HYDRAULIC BREATHER – AIR A215170 12.15
FILTER – SUCTION D164457 12.12, 12.121
FILTER – RETURN D501564 12.12
D516975 12.121
TRANSMISSION FILTER – OIL D140182 7.04
ELECTRIC BATTERY(12 VOLT) A214006 6.03
A214080(90-3249~UP)
BULB – BACK – UP S863110H 6.12, 6.1201, 6.122, 6.123, 11.09, 11.13
BULB – HALOGEN
FOR NON-NORTH AMERICA D147669 6.11, 6.12, 6.1201, 6.123, 11.09, 11.13
FOR NORTH AMERICA D147672 6.11, 6.12, 6.1201, 6.121
6.122, 6.123, 11.09, 11.13
BULB – STOP & TAIL S866123H 6.12, 6.1201, 6.122, 6.123, 11.09, 11.13
BULB – TURN SIGNAL S864123H 6.12, 6.1201, 6.122, 6.123, 11.09, 11.13
BULB – CABIN LOOM LAMP A219406 11.101, 11.14, 11.21
LAMP A214495 6.07
FUSE(5 AMP) A214106 6.04
FUSE(10 AMP) A124008 6.04, 6.14
FUSE(15 AMP) D544005 6.04
FLASH TUBE – STROBE D287630 6.12, 6.1201, 6.122, 6.123
SPRAY CAN G5 YELLOW A212141(90-0001~2978)
(PAINT) DAEWOO YELLOW A212654(90-2979~UP)
DAEWOO BLACK D139689
