Description
Doosan DA40 T2, T4i, Stage 3B Articulated Dump Truck Parts Manual (Serial Number 8X0502 and Up)
Doosan DA40 T2, T4i, Stage 3B Articulated Dump Truck Table Of Contents:
Engine T2 G010

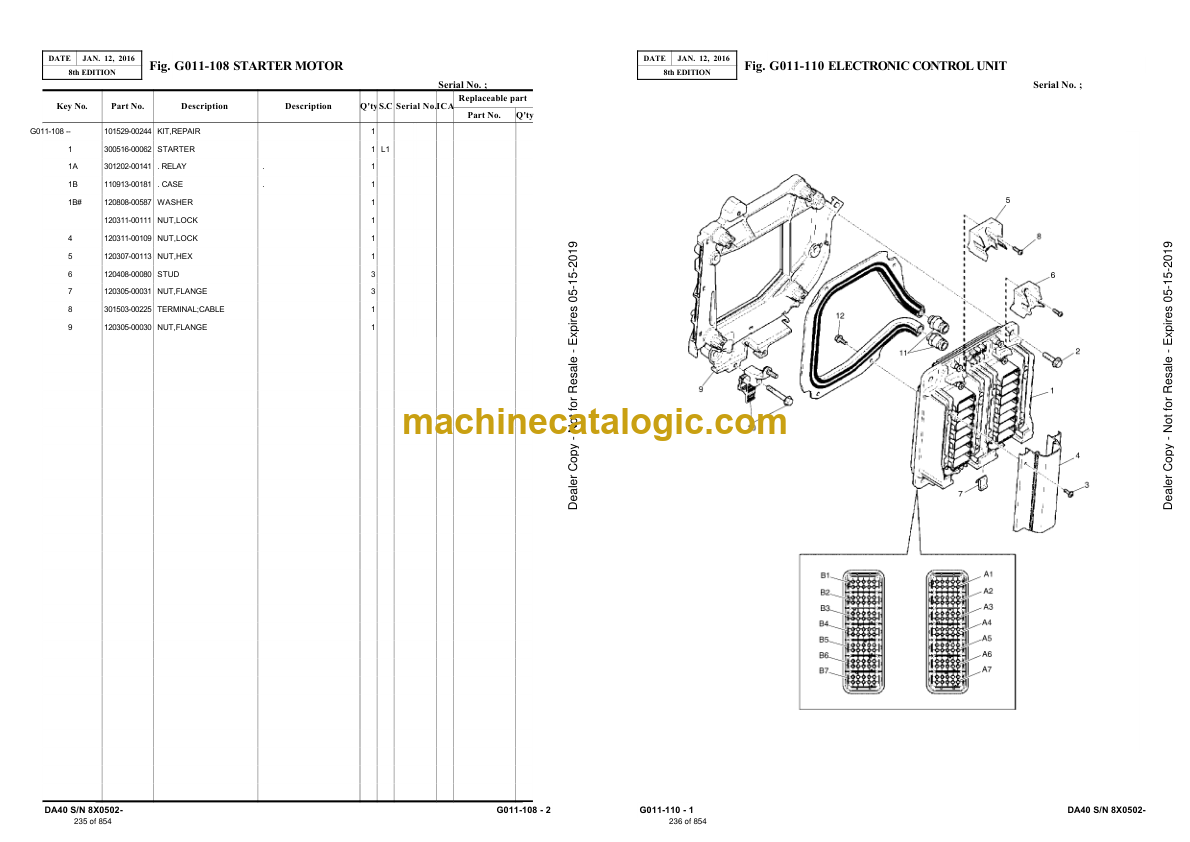

Engine T4i/Stage 3B G011
Inlet system T2 G030
Inlet system T4i/Stage 3B G031
Cooling system G040
Exhaust system G050
Exhaust system T4i/Stage 3B G051
Fuel oil tank T2 G060
Fuel oil tank T4i/Stage 3B G061
Transmission G070
Rear axle G090
Wheel G100
Intermediate shaft rear G110
Coupling, engine-transmission G120
Parking brake G130

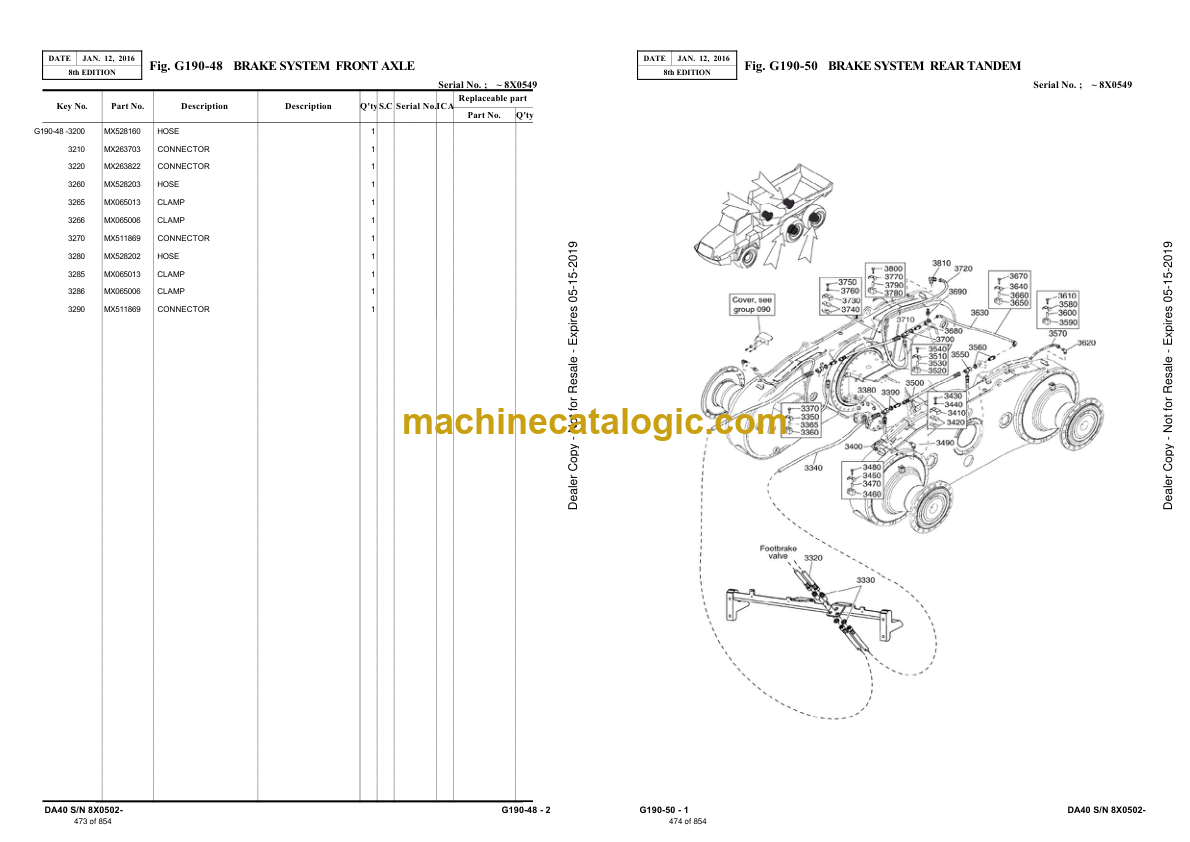

Hydraulic system (two pumps solution.) G190

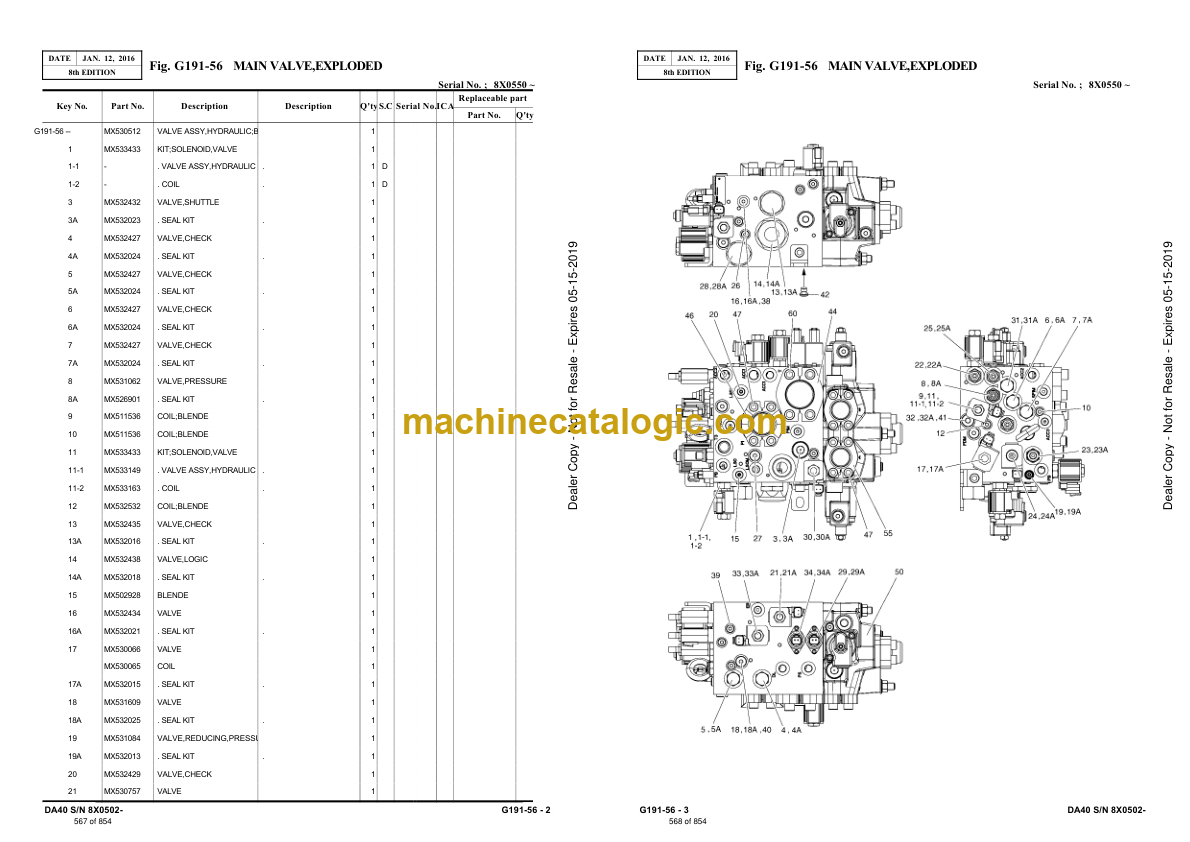

Hydraulic system (one pump solution.) G191
Hydraulic tank w/filter G200
El.system front vagon G210
El.system rear vagon G220
El.system,cab G230
Front frame G240
Front axle G250
Articulation bearing G260
Articulation hinge G270
Fender G280
Mudguard G290
Bonnet G300
Cab, equipment outside G310
Cab, equipment inside G320
Windows in cabin G330
Cabin door G340
Panels in cabin G350
Mirrors G360
Air condition G380
Rear frame G390
Steering cyl. mounting G400
Protection steering cyl. G410
Body G420
Tilting bearing mounting G430
Tilting cylinder mounting G440
Equipment G460
Safety equipment G470
Sticker G480
Lubrication system G490
Option G500
