Description
Doosan DX300MH-5 Material Handler Shop Manual (Serial Number 1001 and Up)
Doosan DX300MH-5 Material Handler Table of Contents:
1 Safety 1 Material Handler Maintenance Safety
2 Specifications 1 Specifications
3 General Maintenance 1 General Maintenance Instructions
2 Machine Setup Position For Maintenance
3 Standard Torques
4 Engine 1 Engine
2 Engine Coolant Heater (Option)
5 Upper Structure 1 Cabin
2 Counterweight
3 Oil Tank
4 Fuel Tank

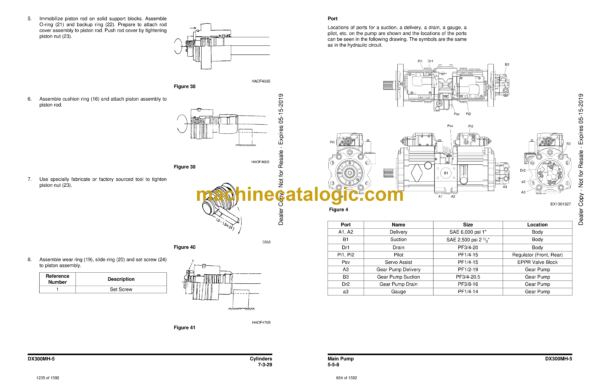

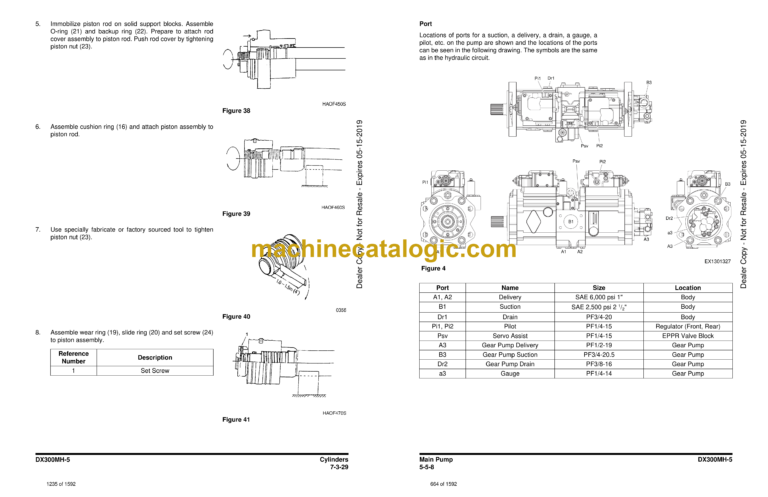

5 Main Pump
6 Drive Coupling (Main Pump)

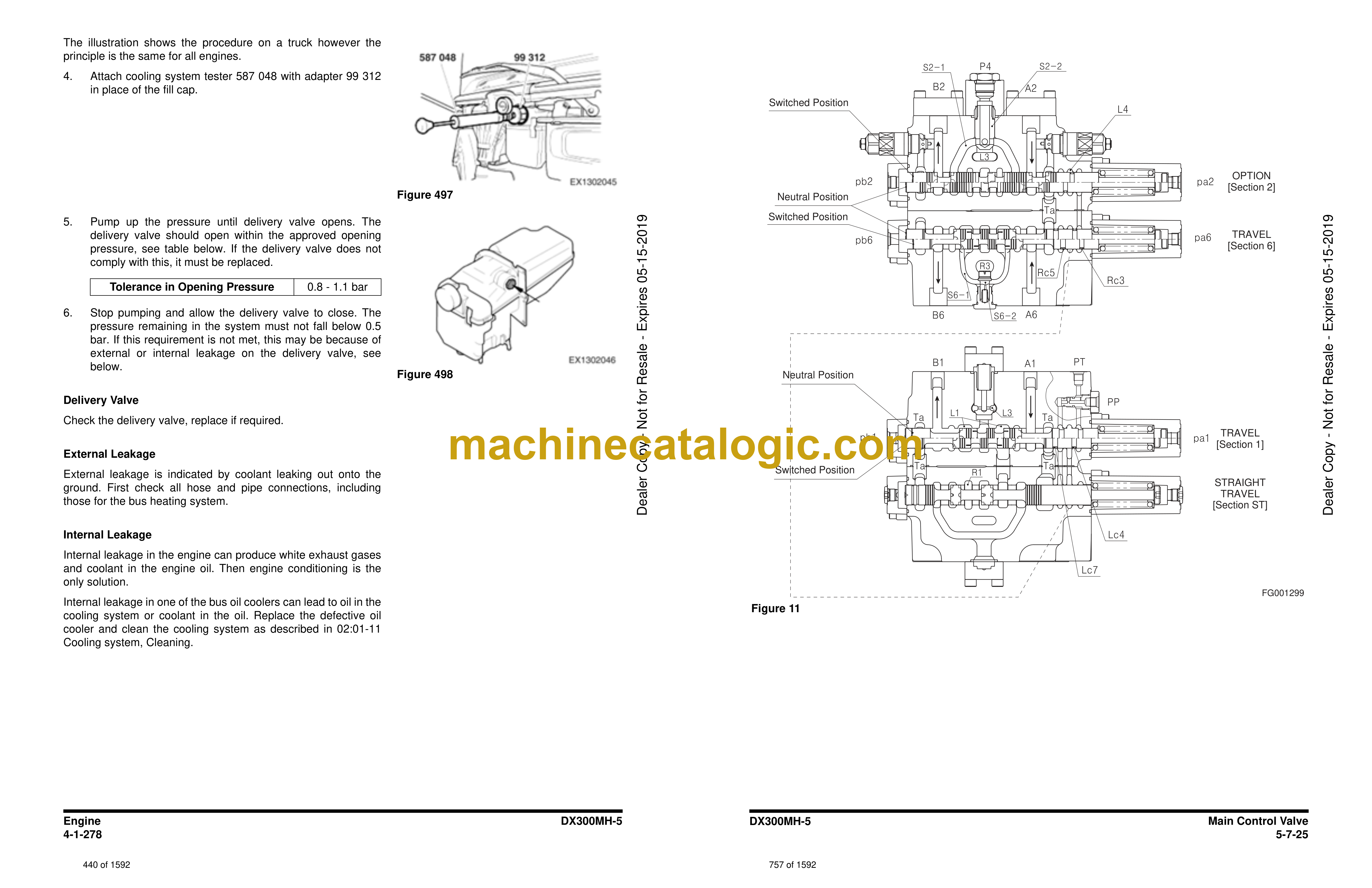

7 Main Control Valve
8 Swing Device
9 Fan Pump for Oil Cooler
10 Fan Motor for Oil Cooler
11 Gear Pump (Rotation)
12 Joystick Valve (Work Lever)
13 Travel Control Valve (with Damper)
14 Solenoid Valve
15 EPPR Valve
16 Accumulator
6 Lower Structure and Chassis 1 Swing Bearing
2 Center Joint
3 Travel Device
4 Track Assembly
