Grove GMK 4075 All Terrain Crane Maintenance Manual

The GMK 4075 is a four-axle all terrain crane. It drives to the job on public roads, then sets up and lifts with its telescopic boom. When a unit comes due for its next scheduled service, the mechanic needs the intervals, lubricants and checks in front of them. That's what this manual is for.

What this manual helps you do

• Plan service work from the maintenance overview, so each interval is checked before the crane goes out.
• Lubricate the carrier and superstructure using the lubricants and fuels section.
• Inspect the carrier and superstructure against the described maintenance work.
• Follow the tightening torques section when you re-torque fasteners after a service.
• Verify the run-in regulations on a crane that is new to service or freshly back from work.

Who this is for

A field service mechanic or workshop mechanic will use it as the working reference at each service. A rental or hire company can keep it on file for every GMK 4075 in the fleet, so the same routine gets followed on each unit.

FAQ

Q: What do I receive and how is it organised?

A: You get one PDF file of 212 pages in English, publication number 2 084 643 en. It runs from general instructions and safety through cleaning, the maintenance overview and lubricants, then the carrier and superstructure work, with tightening torques and an appendix at the back.

Q: Which machine does it fit?

A: It is the GMK4075 Maintenance Manual for the Grove GMK 4075 all terrain crane. If your crane is a GMK 4075, you have the right title.

Q: How does it fit my job?

A: The maintenance overview gives you the schedule, and the carrier and superstructure sections cover the work itself. Longer periods out of operation is also in there, which helps with a crane that has been parked up.

You can download it, open it at the next service and work through the schedule with the crane in front of you.

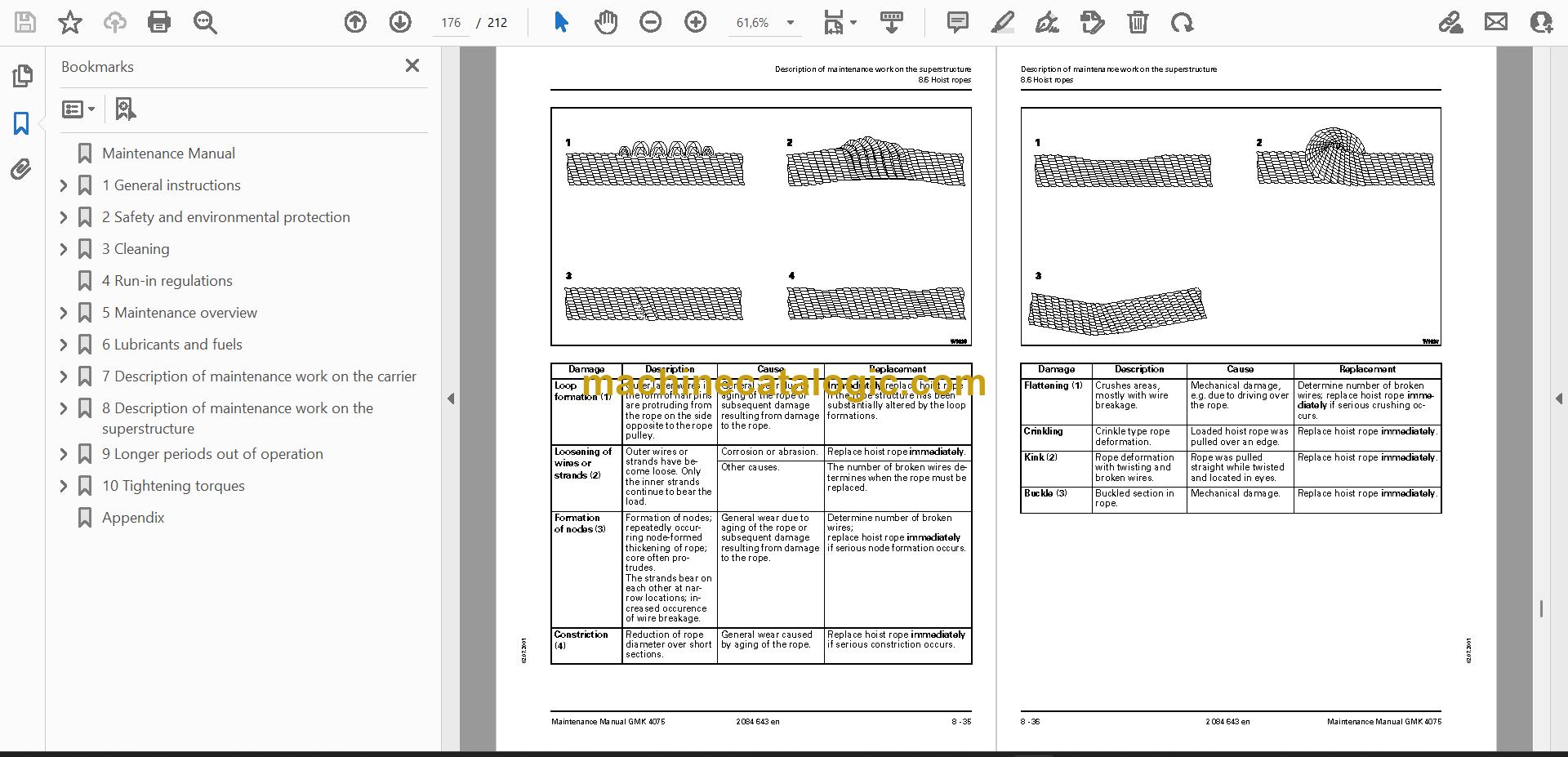

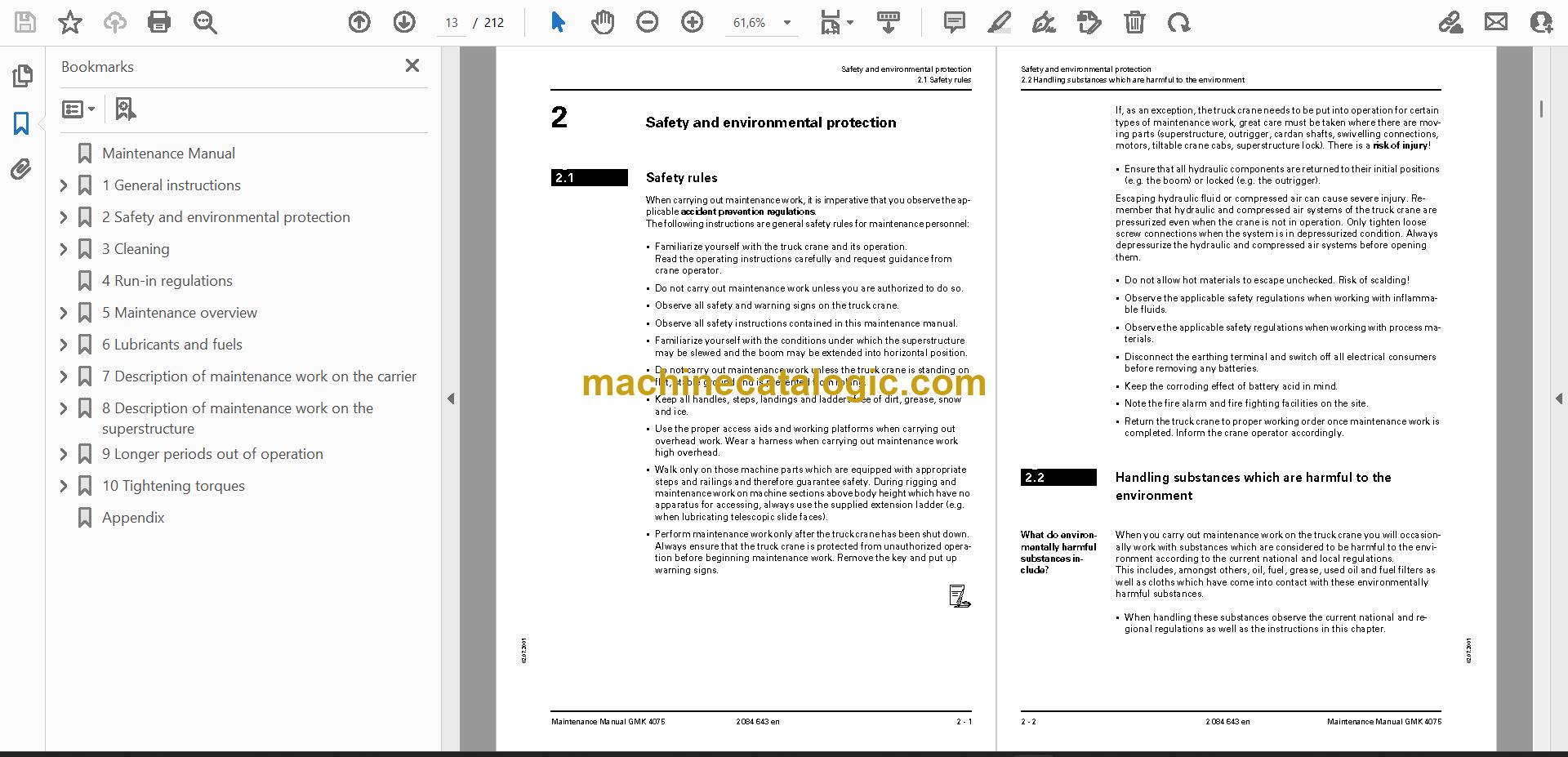

Click here to view the preview (PDF)
