Grove GMK 6300L All Terrain Crane Maintenance Manual

The GMK 6300L is a Grove all terrain crane. It drives on public roads and works on site with a telescopic boom. If you look after your own machine, you reach for this manual when the next scheduled service is coming up and you need the intervals, lubrication points and fluid and filter changes in front of you.

What this manual helps you do

• Plan each service from the maintenance overview and the maintenance schedule and intervals.
• Lubricate the carrier and superstructure using the lubricants and consumables section.
• Change fluids and filters on the engine and cooling system and the hydraulic system and filters.
• Inspect and adjust the brakes and steering, the boom, wire ropes and hook block, and the other items that need routine checks.
• Verify fastener tightness against the torques section, and follow the run-in regulations on a crane that is new to you.

Who this is for

Owner-operators who do their own servicing. You get one document to work from at the machine, with the carrier and superstructure work laid out separately. A buyer of a used crane can also use it to set up a service routine when the previous records didn't come with the machine.

FAQ

Q: What do I receive and how is it organised?

A: One PDF file, 306 pages, in English. It runs from general instructions and safety through cleaning, run-in regulations, the maintenance overview, lubricants and consumables, then carrier and superstructure work, longer out-of-service periods, torques, spare parts required for maintenance and an appendix.

Q: Which machine does it fit?

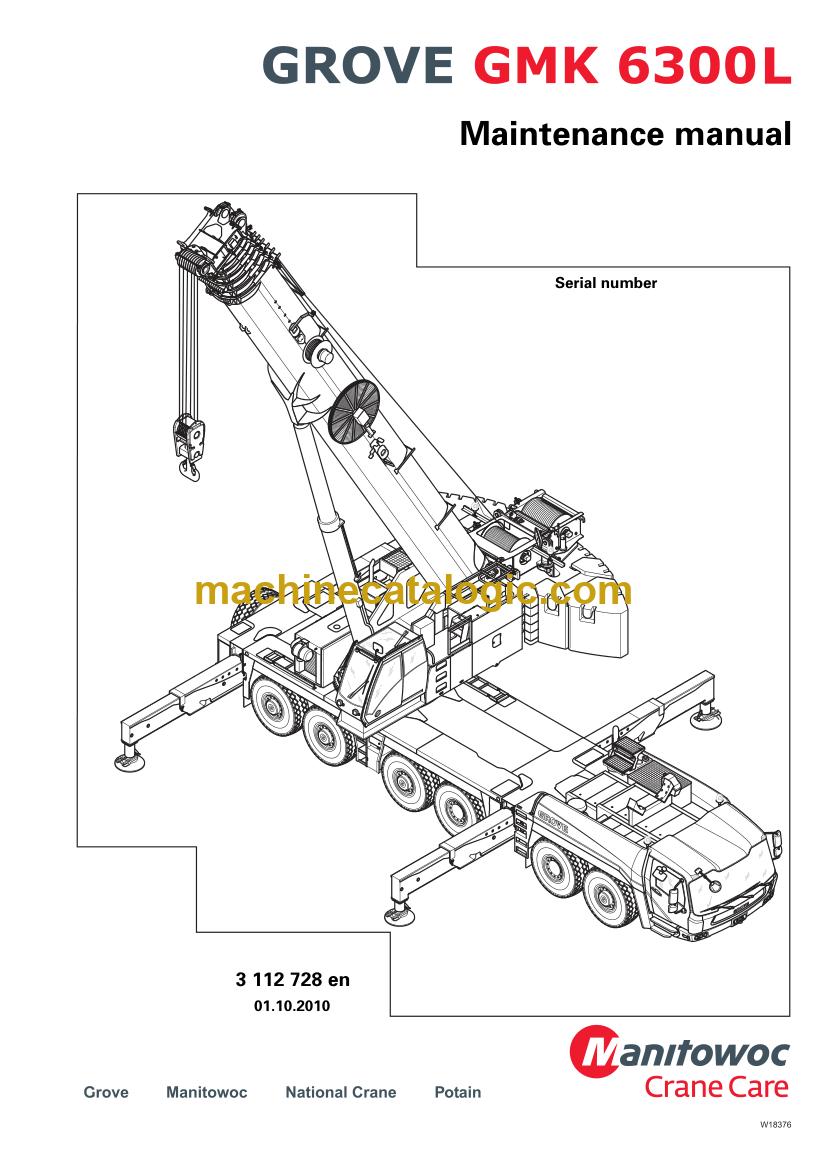

A: The GMK 6300L. The title on the manual is "GMK 6300L Maintenance Manual" and the publication number is 3 112 728 en, so you can match it against what you have.

Q: How does it fit the job I'm doing?

A: You'd expect to use it as the working reference for scheduled care: look up the interval, find the lubricant or consumable, do the check, then confirm torques. The section on longer out-of-service periods is there for when the crane sits idle.

Keep it with the crane, and every service starts from the same page of intervals and lubrication points.

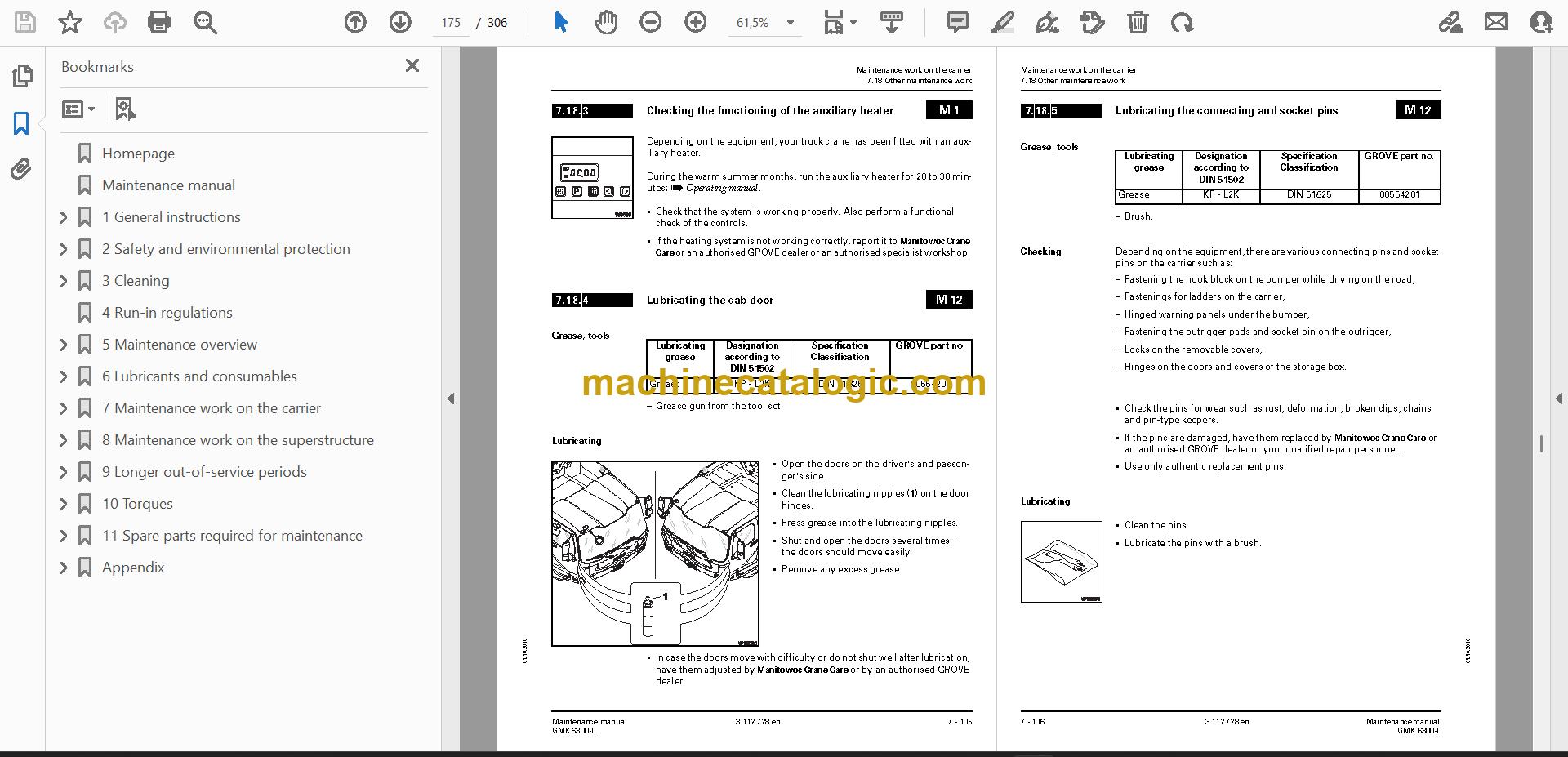

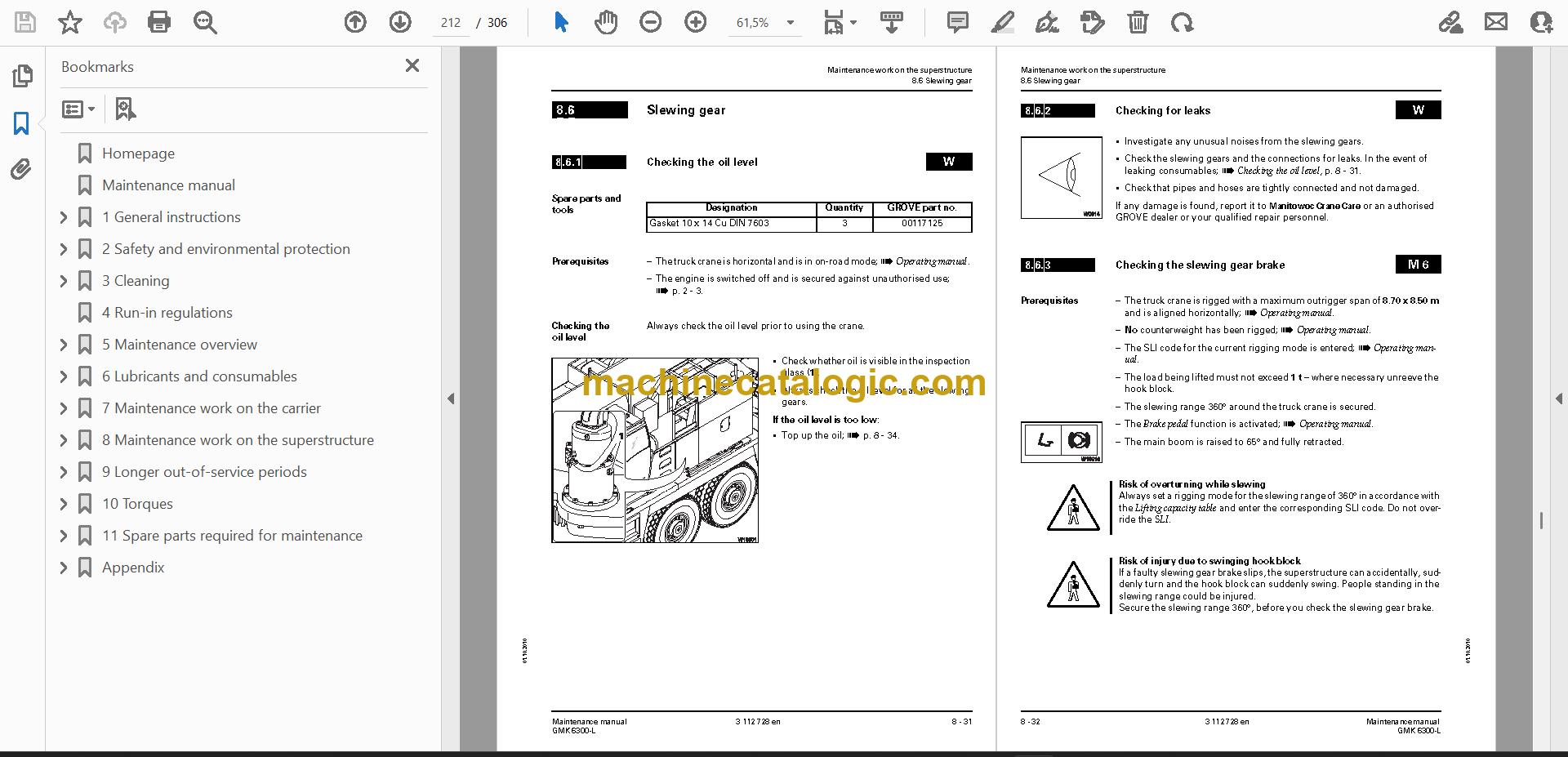

Click here to view the preview (PDF)
